    Su-57 Stealth Fighter: News #5

    JohninMK
    JohninMK


    Posts : 14607
    Points : 14742
    Join date : 2015-06-16
    Location : England

    Su-57 Stealth Fighter: News #5 - Page 34 Empty Re: Su-57 Stealth Fighter: News #5

    Post  JohninMK Mon Aug 05, 2019 11:50 am

    Apologies if this was already linked but an interesting article from back in April on some of the unique aspects of the Su-57.

    https://defencearena.com/how-good-is-sukhoi-su-57/
    ATLASCUB
    ATLASCUB


    Posts : 1154
    Points : 1158
    Join date : 2017-02-13

    Su-57 Stealth Fighter: News #5 - Page 34 Empty Re: Su-57 Stealth Fighter: News #5

    Post  ATLASCUB Tue Aug 06, 2019 4:18 pm

    Su-57 Stealth Fighter: News #5 - Page 34 Img

    Purpose of intake?

    I rather not guess.
    avatar
    tomazy


    Posts : 21
    Points : 23
    Join date : 2017-07-16

    Su-57 Stealth Fighter: News #5 - Page 34 Empty Re: Su-57 Stealth Fighter: News #5

    Post  tomazy Tue Aug 06, 2019 5:59 pm

    ATLASCUB wrote:

    Purpose of intake?

    I rather not guess.

    My guess would be cannon cooling.
    GarryB
    GarryB


    Posts : 38881
    Points : 39377
    Join date : 2010-03-30
    Location : New Zealand

    Su-57 Stealth Fighter: News #5 - Page 34 Empty Re: Su-57 Stealth Fighter: News #5

    Post  GarryB Wed Aug 07, 2019 6:31 am

    It vents the gasses from unburnt powder when the guns fire... if they accumulate inside the airframe they can build to a level where they can cause internal explosions and fires.

    With this area open and the area around the muzzle open when the gun fires the airflow also allows the gun to be cooled between bursts of fire...
    ATLASCUB
    ATLASCUB


    Posts : 1154
    Points : 1158
    Join date : 2017-02-13

    Su-57 Stealth Fighter: News #5 - Page 34 Empty Re: Su-57 Stealth Fighter: News #5

    Post  ATLASCUB Wed Aug 07, 2019 1:00 pm

    GarryB wrote:It vents the gasses from unburnt powder when the guns fire... if they accumulate inside the airframe they can build to a level where they can cause internal explosions and fires.

    With this area open and the area around the muzzle open when the gun fires the airflow also allows the gun to be cooled between bursts of fire...

    I assumed so but some earlier prototypes didn't have it.

    Thanks to both.
    GarryB
    GarryB


    Posts : 38881
    Points : 39377
    Join date : 2010-03-30
    Location : New Zealand

    Su-57 Stealth Fighter: News #5 - Page 34 Empty Re: Su-57 Stealth Fighter: News #5

    Post  GarryB Wed Aug 07, 2019 2:34 pm

    I assumed so but some earlier prototypes didn't have it.

    Thanks to both.

    I suspect they probably didn't have a gun either.
    PhSt
    PhSt


    Posts : 1197
    Points : 1203
    Join date : 2019-04-02
    Location : Canada

    Su-57 Stealth Fighter: News #5 - Page 34 Empty Re: Su-57 Stealth Fighter: News #5

    Post  PhSt Fri Aug 09, 2019 4:31 am

    Su-57 Stealth Fighter: News #5 - Page 34 154834981133
    avatar
    hoom


    Posts : 2352
    Points : 2340
    Join date : 2016-05-06

    Su-57 Stealth Fighter: News #5 - Page 34 Empty Re: Su-57 Stealth Fighter: News #5

    Post  hoom Sat Aug 10, 2019 8:32 pm

    Not specifically Su-57 related but US sent an F-22 to a recent airshow looking like an absolute rust-bucket
    truly amazing material and construction science that appears downright alien when compared to that of non-stealthy fighters.
    https://www.thedrive.com/the-war-zone/29218/these-images-of-an-f-22-raptors-crumbling-radar-absorbent-skin-are-fascinating
    Su-57 Stealth Fighter: News #5 - Page 34 Https%3A%2F%2Fs3-us-west-2.amazonaws.com%2Fthe-drive-cms-content-staging%2Fmessage-editor%252F1564523223695-jjjjasd.jpg?auto=compress%2Cformat&ixlib=js-1.2

    Pretty sure this is an F-22 with (nearly) all its RAM coatings removed.

    Not too surprising to find its got rough rivets/screws & non-precision panel gaps all over the place.
    What is shocking is the cracks & rust-stains  Shocked

    Its probably just cracks in a surface coating but I almost want to believe its an intentional 'rat rod' type paint-job for the show rather than the true state of the airframe.
    Hole
    Hole


    Posts : 10610
    Points : 10588
    Join date : 2018-03-24
    Age : 47
    Location : Scholzistan

    Su-57 Stealth Fighter: News #5 - Page 34 Empty Re: Su-57 Stealth Fighter: News #5

    Post  Hole Sat Aug 10, 2019 9:12 pm

    If an Su-57 would look like this...
    avatar
    kumbor


    Posts : 312
    Points : 304
    Join date : 2017-06-09

    Su-57 Stealth Fighter: News #5 - Page 34 Empty Re: Su-57 Stealth Fighter: News #5

    Post  kumbor Sun Aug 11, 2019 7:10 am

    hoom wrote:Not specifically Su-57 related but US sent an F-22 to a recent airshow looking like an absolute rust-bucket
    truly amazing material and construction science that appears downright alien when compared to that of non-stealthy fighters.
    https://www.thedrive.com/the-war-zone/29218/these-images-of-an-f-22-raptors-crumbling-radar-absorbent-skin-are-fascinating
    Su-57 Stealth Fighter: News #5 - Page 34 Https%3A%2F%2Fs3-us-west-2.amazonaws.com%2Fthe-drive-cms-content-staging%2Fmessage-editor%252F1564523223695-jjjjasd.jpg?auto=compress%2Cformat&ixlib=js-1.2

    Pretty sure this is an F-22 with (nearly) all its RAM coatings removed.

    Not too surprising to find its got rough rivets/screws & non-precision panel gaps all over the place.
    What is shocking is the cracks & rust-stains  Shocked

    Its probably just cracks in a surface coating but I almost want to believe its an intentional 'rat rod' type paint-job for the show rather than the true state of the airframe.

    F-22 evidently. If it is not a photoshop or "make up" for some special purpose, then I assume state of this aircraft appaling!
    GarryB
    GarryB


    Posts : 38881
    Points : 39377
    Join date : 2010-03-30
    Location : New Zealand

    Su-57 Stealth Fighter: News #5 - Page 34 Empty Re: Su-57 Stealth Fighter: News #5

    Post  GarryB Sun Aug 11, 2019 7:31 am

    No wonder they stopped at 189...
    JohninMK
    JohninMK


    Posts : 14607
    Points : 14742
    Join date : 2015-06-16
    Location : England

    Su-57 Stealth Fighter: News #5 - Page 34 Empty Re: Su-57 Stealth Fighter: News #5

    Post  JohninMK Sun Aug 11, 2019 10:21 am


    Su-57 Stealth Fighter: News #5 - Page 34 Https%3A%2F%2Fs3-us-west-2.amazonaws.com%2Fthe-drive-cms-content-staging%2Fmessage-editor%252F1564522402093-kkdkakdadc.jpg?auto=compress%2Cformat&ixlib=js-1.2

    https://www.thedrive.com/the-war-zone/29218/these-images-of-an-f-22-raptors-crumbling-radar-absorbent-skin-are-fascinating
    GarryB
    GarryB


    Posts : 38881
    Points : 39377
    Join date : 2010-03-30
    Location : New Zealand

    Su-57 Stealth Fighter: News #5 - Page 34 Empty Re: Su-57 Stealth Fighter: News #5

    Post  GarryB Sun Aug 11, 2019 10:38 am

    The photos are a reminder of just how much work goes into keeping the F-22's skin ready for combat and the amazing science behind its stealthy design.

    That poor reporter... he obviously doesn't have a mother or a wife... it is called foundation you dick and women have been hiding cracks and wrinkles with if for the last few centuries already...
    ATLASCUB
    ATLASCUB


    Posts : 1154
    Points : 1158
    Join date : 2017-02-13

    Su-57 Stealth Fighter: News #5 - Page 34 Empty Re: Su-57 Stealth Fighter: News #5

    Post  ATLASCUB Sun Aug 11, 2019 2:27 pm

    JohninMK wrote:
    Su-57 Stealth Fighter: News #5 - Page 34 Https%3A%2F%2Fs3-us-west-2.amazonaws.com%2Fthe-drive-cms-content-staging%2Fmessage-editor%252F1564522402093-kkdkakdadc.jpg?auto=compress%2Cformat&ixlib=js-1.2

    https://www.thedrive.com/the-war-zone/29218/these-images-of-an-f-22-raptors-crumbling-radar-absorbent-skin-are-fascinating

    The famous rain damage problem right there.

    The coating possibly absorbing water rusting the frame beneath or eating the coating itself in some weird chem reaction... but obviously not just rain, mist (more common) as well. One of the many reasons it needs all that special maintenance and special housing for these planes. Humidity must be a pain to them.

    They had a lot of problems with this for a reason. Their wunderwaffe "material solutions" probably had a lot of untested and critical chemical reactions when exposed to the elements in all of its forms for prolonged periods of time.
    kvs
    kvs


    Posts : 15089
    Points : 15226
    Join date : 2014-09-11
    Location : Turdope's Kanada

    Su-57 Stealth Fighter: News #5 - Page 34 Empty Re: Su-57 Stealth Fighter: News #5

    Post  kvs Sun Aug 11, 2019 4:16 pm

    Judging by the exposed rivets this F-22 had all of its RAM stripped. It looks like the RAM formula developed by some corrupt
    subcontractor is corrosive when mixed with water. I bet the Russian RAM won't have this problem. Those drunks living in
    mud huts actually understand chemistry and physics. Not just dollars like their US counterparts.

    It also nice to see how rough those rivets are. (BTW it makes no difference if they are recessed or protruding to EM
    scatter). All the fanboi wanking over the "obviously" inferior Su-57 are a total joke.



    avatar
    Austin


    Posts : 7617
    Points : 8014
    Join date : 2010-05-08
    Location : India

    Su-57 Stealth Fighter: News #5 - Page 34 Empty Re: Su-57 Stealth Fighter: News #5

    Post  Austin Wed Aug 14, 2019 7:26 am

    http://redstar.ru/podyomnaya-sila-krylev-rossii/

    Seems from RuAF Deputy chief statement PAK-FA has supercruise capability with current engine

    - You have already mentioned in our conversation the aircraft of generation 4 ++ MiG-35 and 5th generation Su-57, which are now being tested. Tell us what opportunities do they have? How are the tests and when can they be expected in the army?

    - The main difference between the MiG-35 and the multifunctional aircraft of the 4 ++ Su-30SM and Su-35S generations already in service is efficiency. The cost of its flight hour is about one and a half times lower than that of modern aircraft of the Sukhoi family.

    The Su-57 is distinguished by multifunctionality, super maneuverability, a mode of long supersonic cruising flight, maximum automation of aircraft control processes and the use of weapons. In its capabilities, it surpasses the 5th generation aircraft of foreign air forces.

    It is planned to complete state tests of the MiG-35 at the end of 2021, and the Su-57 this year. Upon completion, serial purchases are provided. I want to remind you: according to the results of the meetings in Sochi, the Supreme Commander was tasked with re-equipping three regiments on Su-57 aircraft.
    avatar
    Gazputin


    Posts : 354
    Points : 354
    Join date : 2019-04-07

    Su-57 Stealth Fighter: News #5 - Page 34 Empty F-22

    Post  Gazputin Wed Aug 14, 2019 7:40 am

    I have to admit I saw the YF-23 in SanFran …. 7 yrs ago
    what an awesome plane … Northrop Museum

    F-22 is not even close
    the F-22 is just a hybrid of the F-15 and F-117 ….
    it isn't the YF-23's arsehole ….

    the YF-23 that I saw was just incredible ….

    F-22 to me was always a myth ….
    its a piece of over-hyped junk …..

    I mean seriously …. look at the size of those enormous vertical tails ……
    a myth ….. but extremely expensive …. and lets face it …. that is the most important thing to the Pentagon milplex … profit

    and is it just me ? …. but the B-2 has to be parked in an air-conditioned hangar ?
    wtf ?

    and F-35 ….. it needs an air-con hangar too …. as the fuel is used to cool the electronics
    and if its too hot the "wonder plane" can't take off ….

    YF-23 … best plane never built …

    and it interests me that the Su-57 looks a lot like the YF-23 in profile …..
    it just looks "right" … a pragmatic YF-23 ….


    Cyberspec
    Cyberspec


    Posts : 2904
    Points : 3057
    Join date : 2011-08-08
    Location : Terra Australis

    Su-57 Stealth Fighter: News #5 - Page 34 Empty Re: Su-57 Stealth Fighter: News #5

    Post  Cyberspec Fri Aug 16, 2019 12:49 am

    Report on OKB Sukhoi...some interesting info on the Su-57 as well...



    Starting at around 12:35 they talk about the method of "topological optimisation" where components are produced via computer and 3D printer I guess

    an example....the right hand part can withstand the same pressures as the one on the left (produced the old way) but is 30% lighter
    Su-57 Stealth Fighter: News #5 - Page 34 57-X3

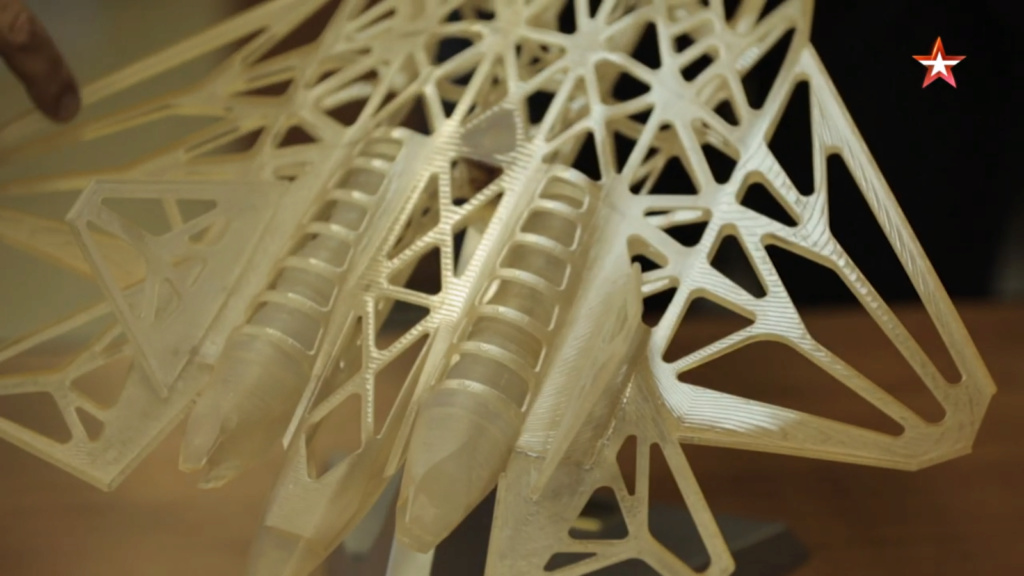

    In the future, the whole body of the aircraft can be produced using the same method...

    Su-57 Stealth Fighter: News #5 - Page 34 57-X1 Su-57 Stealth Fighter: News #5 - Page 34 57-X2
    dino00
    dino00


    Posts : 1677
    Points : 1714
    Join date : 2012-10-12
    Age : 36
    Location : portugal

    Su-57 Stealth Fighter: News #5 - Page 34 Empty Re: Su-57 Stealth Fighter: News #5

    Post  dino00 Fri Aug 16, 2019 12:25 pm

    Russia to feature export version of 5th-generation Su-57 fighter at MAKS air show

    The Su-57E fighter and the Il-112VE military transport plane will be the main exhibits of the Russian exposition’s military segment at the airshow

    https://tass.com/defense/1073736
    PhSt
    PhSt


    Posts : 1197
    Points : 1203
    Join date : 2019-04-02
    Location : Canada

    Su-57 Stealth Fighter: News #5 - Page 34 Empty Re: Su-57 Stealth Fighter: News #5

    Post  PhSt Tue Aug 20, 2019 4:49 am


    Su-57 Stealth Fighter: News #5 - Page 34 254326

    Su-57 Stealth Fighter: News #5 - Page 34 247235

    Su-57 Stealth Fighter: News #5 - Page 34 254433

    Su-57 Stealth Fighter: News #5 - Page 34 246015
    zorobabel
    zorobabel


    Posts : 702
    Points : 700
    Join date : 2015-09-21

    Su-57 Stealth Fighter: News #5 - Page 34 Empty Re: Su-57 Stealth Fighter: News #5

    Post  zorobabel Thu Aug 22, 2019 7:57 pm

    Gazputin wrote:I have to admit I saw the YF-23 in SanFran …. 7 yrs ago
    what an awesome plane … Northrop Museum

    F-22 is not even close
    the F-22 is just a hybrid of the F-15 and F-117 ….
    it isn't the YF-23's arsehole ….

    the YF-23 that I saw was just incredible ….

    F-22 to me was always a myth ….
    its a piece of over-hyped junk …..

    I mean seriously …. look at the size of those enormous vertical tails ……
    a myth ….. but extremely expensive …. and lets face it …. that is the most important thing to the Pentagon milplex … profit

    and is it just me ? …. but the B-2 has to be parked in an air-conditioned hangar  ?
    wtf ?

    and F-35 ….. it needs an air-con hangar too …. as the fuel is used to cool the electronics
    and if its too hot the "wonder plane" can't take off  ….

    YF-23 … best plane never built …

    and it interests me that the Su-57 looks a lot like the YF-23 in profile …..
    it just looks "right" … a pragmatic YF-23 ….


    Some talk that Japan's F-3 will be similar to the YF-23.
    [ F l a n k e d ]
    [ F l a n k e d ]


    Posts : 11
    Points : 13
    Join date : 2017-04-04

    Su-57 Stealth Fighter: News #5 - Page 34 Empty Re: Su-57 Stealth Fighter: News #5

    Post  [ F l a n k e d ] Fri Aug 23, 2019 12:05 am

    Su-57 Stealth Fighter: News #5 - Page 34 Sc110 Su-57 Stealth Fighter: News #5 - Page 34 Sc210

    Interesting, both the computer model and its 3d printed equivalent feature a low IR signature TVC nozzle - canted as in su-35 and pakfa - which transitions from  circular to rectangular cross section.
    We can only conjecture whether this might replace the round serrated nozzle of izd. 30 at some point or is simply one of many prospective configurations considered by internal studies. It might be outfitted to the okhotnik-B as well.
    Cyberspec
    Cyberspec


    Posts : 2904
    Points : 3057
    Join date : 2011-08-08
    Location : Terra Australis

    Su-57 Stealth Fighter: News #5 - Page 34 Empty Re: Su-57 Stealth Fighter: News #5

    Post  Cyberspec Fri Aug 23, 2019 9:11 am

    Possibly a future version....that's a model on the use of "topological optimisation", mentioned on the previous page
    kvs
    kvs


    Posts : 15089
    Points : 15226
    Join date : 2014-09-11
    Location : Turdope's Kanada

    Su-57 Stealth Fighter: News #5 - Page 34 Empty Re: Su-57 Stealth Fighter: News #5

    Post  kvs Fri Aug 23, 2019 3:01 pm

    The nozzle reflectors are the obvious approach of retaining 3D thrust vectoring, but it is hard to see how they will be implemented.
    In the models they are apparently able to rotate around the nozzle axis. How do they do that? This is a very high heat zone that
    frustrates moving mechanics aside from the vectoring blades. The F-22 has fixed 2D vectoring nozzles for a reason. I can see some
    sort of nozzle caps (reflectors) being attached to the vectoring blades and acting in sync to duct the flow, but how to attach such
    caps reliably without them falling off after one flight.

    magnumcromagnon
    magnumcromagnon


    Posts : 8138
    Points : 8273
    Join date : 2013-12-05
    Location : Pindos ave., Pindosville, Pindosylvania, Pindostan

    Su-57 Stealth Fighter: News #5 - Page 34 Empty Re: Su-57 Stealth Fighter: News #5

    Post  magnumcromagnon Fri Aug 23, 2019 3:16 pm

    Whatever happened to aerosol injection system? Some years ago a photo from the paralay forums which was posted on this forum, showed a patent and a digital reconstruction of a electromagnetic opaque aerosol injection system to mask the IR signature of the exhausts.

    Sponsored content


    Su-57 Stealth Fighter: News #5 - Page 34 Empty Re: Su-57 Stealth Fighter: News #5

    Post  Sponsored content


      Current date/time is Sat Apr 13, 2024 2:48 pm
