    Tu-22M3: News

    Hole
    Hole


    Posts : 10346
    Points : 10326
    Join date : 2018-03-24
    Age : 47
    Location : Scholzistan

    Tu-22M3: News - Page 34 Empty Re: Tu-22M3: News

    Post  Hole Mon Feb 21, 2022 5:44 pm

    Calm down, 30 is the first contract. Very Happy

    Tu-22M3: News - Page 34 000928
    Tu-22M3: News - Page 34 001110
    The missile is raised into the bomb bay. The doors can be modified to fit around the missile.

    GarryB, dino00 and magnumcromagnon like this post

    Mir
    Mir


    Posts : 3074
    Points : 3076
    Join date : 2021-06-10

    Tu-22M3: News - Page 34 Empty Re: Tu-22M3: News

    Post  Mir Mon Feb 21, 2022 7:41 pm

    Always been like that >>
    Tu-22M3: News - Page 34 Tu22m310

    But even from your latest pictures you can see that the center line missile is suspended rather tan recessed >>

    Hole wrote:
    Tu-22M3: News - Page 34 Tu-22m11
    Hole
    Hole


    Posts : 10346
    Points : 10326
    Join date : 2018-03-24
    Age : 47
    Location : Scholzistan

    Tu-22M3: News - Page 34 Empty Re: Tu-22M3: News

    Post  Hole Mon Feb 21, 2022 9:15 pm

    Because the top brass was looking.

    Tu-22M3: News - Page 34 109910
    50 with lowered missile
    Tu-22M3: News - Page 34 110510
    50 getting airborne with semi-recessed missile

    George1, Broski and Krepost like this post

    Isos
    Isos


    Posts : 11233
    Points : 11203
    Join date : 2015-11-06

    Tu-22M3: News - Page 34 Empty Re: Tu-22M3: News

    Post  Isos Mon Feb 21, 2022 9:20 pm

    It's a big missile. Kinzhal can be carried in greater numbers with a longer range.
    Mir
    Mir


    Posts : 3074
    Points : 3076
    Join date : 2021-06-10

    Tu-22M3: News - Page 34 Empty Re: Tu-22M3: News

    Post  Mir Mon Feb 21, 2022 9:30 pm

    Well now the guys on Russianplanes.net have noticed >>

    Maxim Volkov (photo) | 2022-02-20 20:25 | #
    Knowledgeable people will not comment on the suspension of the product? This is the first time I've seen this.

    Yuri (photo) | 2022-02-20 21:22 | #
    Really. I wonder why the rocket is lowered...

    Vadim Savitsky (photo) | 2022-02-20 21:53 | #
    X-32 on the central suspension. Maybe two more on the wing
    GarryB
    GarryB


    Posts : 38481
    Points : 38981
    Join date : 2010-03-30
    Location : New Zealand

    Tu-22M3: News - Page 34 Empty Re: Tu-22M3: News

    Post  GarryB Tue Feb 22, 2022 2:49 am

    Pretty clear that this is a Tu-22M3 and not a Tu-22M3M. Anyway it's the first time I've seen the missile suspended in this way.

    Yes, well spotted.

    The missile is raised into the bomb bay. The doors can be modified to fit around the missile.

    Thanks for sharing... learn something new all the time...

    It's a big missile. Kinzhal can be carried in greater numbers with a longer range.

    Well we don't actually know if Kinzhal has been made compatible and how it could be carried.

    Stealthflanker
    Stealthflanker


    Posts : 1405
    Points : 1481
    Join date : 2009-08-04
    Age : 36
    Location : Indonesia

    Tu-22M3: News - Page 34 Empty Re: Tu-22M3: News

    Post  Stealthflanker Fri Apr 15, 2022 8:33 pm

    I'm curious if Tu-22M3's would also get compatibility with guided bombs. particularly the UPAB-1500. It can carry way more than Su-35 or 34's and allows bombing to be made at almost any weather condition.

    GarryB likes this post

    avatar
    limb


    Posts : 1548
    Points : 1574
    Join date : 2020-09-17

    Tu-22M3: News - Page 34 Empty Re: Tu-22M3: News

    Post  limb Fri Apr 15, 2022 9:05 pm

    Why can't Tu-22s launch kinzhal, Kh-35 or Kh-59 yet?
    Isos
    Isos


    Posts : 11233
    Points : 11203
    Join date : 2015-11-06

    Tu-22M3: News - Page 34 Empty Re: Tu-22M3: News

    Post  Isos Fri Apr 15, 2022 10:09 pm

    limb wrote:Why can't Tu-22s launch kinzhal, Kh-35 or Kh-59 yet?

    No need to. They have small ranges and adapted for smaller stealthier planes.

    The class of longer range missiles like kh-101 with 2000+km is better situated for it since it keeps the planes at safe distances.

    GarryB likes this post

    avatar
    limb


    Posts : 1548
    Points : 1574
    Join date : 2020-09-17

    Tu-22M3: News - Page 34 Empty Re: Tu-22M3: News

    Post  limb Fri Apr 15, 2022 10:18 pm

    Isos wrote:
    limb wrote:Why can't Tu-22s launch kinzhal, Kh-35 or Kh-59 yet?

    No need to. They have small ranges and adapted for smaller stealthier planes.

    The class of longer range missiles like kh-101 with 2000+km is better situated for it since it keeps the planes at safe distances.
    Better than only being able to drop bombs or kh-32s.
    psg
    psg


    Posts : 74
    Points : 79
    Join date : 2011-02-19

    Tu-22M3: News - Page 34 Empty Re: Tu-22M3: News

    Post  psg Fri Apr 15, 2022 11:55 pm

    I would of thought the Russian airforce, would at least upgraded 6-10 tu22 m3's to utilise the kab 500s/1500s on multiple ejector racks under the wings, inlets and internal weapons bay carriage. Plus the added svp 24 system, working with dumb bombs.

    It still has so much unleashed potential in that design.

    GarryB likes this post

    GarryB
    GarryB


    Posts : 38481
    Points : 38981
    Join date : 2010-03-30
    Location : New Zealand

    Tu-22M3: News - Page 34 Empty Re: Tu-22M3: News

    Post  GarryB Sat Apr 16, 2022 5:12 am

    The original plan going back before the production of new Tu-160s was to unify the design and equipment of the Tu-95,160,22M3 where ever possible.

    So of course the Bear keeps its props but radars for all three aircraft are improved and upgraded and all made the same.

    The engines of the new Backfires replaced with the engines of the Blackjack and also further upgraded.

    All three aircraft were supposed to get weapons upgrades with a huge new range of guided bombs and missiles to be added to their arsenal.

    The decision to build PAK DA however required a brand new factory and if they had to make a new factory anyway they decided to make one with a new titanium forge so the box structure for the swing wings on the Blackjack could be produced to finish two incomplete models from the factory that made them, and extra Blackjacks could be made to bring them up to being a more viable force.

    The new factory could then be used to make PAK DA bombers that could replace the Bear in the long range subsonic strategic role but obviously with stealth as well, and also the Backfire in the theatre strike role with a much heavier payload and reduced fuel requirements.

    A subsonic flying wing is most efficient and allows the internal volume for lots of fuel and internal weapons, it is inherently stealthy so adding a few touches should make it reasonably stealthy without needing to be excessively expensive.

    Its stealth means it can operate at more efficient altitudes, though it could still carry standoff weapons of long range.

    The shift from keeping all three older aircraft to eventually having two aircraft seems to have led to a shift from the Tu-160 being a cruise missile carrier or a bomber, to the PAK DA being a theatre bomber or strategic cruise missile carrier and teh Tu-160 being a cruise missile carrier only.

    Now that western civilian airliners are no longer an option it means civilian airliners get more attention, which might also translate to more emphasis on transport aircraft too...

    Who knows... when production of the Tu-160 ends and PAK DA begins maybe a supersonic transport based on a modified Tu-160 might be considered... equally a flying wing civilian airliner might be another option too... certainly a flying wing would be interesting for AWACS use or inflight refuelling tanker where all the payload options are replace with extra fuel.

    gc3762, lancelot and Broski like this post

    George1
    George1


    Posts : 18221
    Points : 18722
    Join date : 2011-12-22
    Location : Greece

    Tu-22M3: News - Page 34 Empty Re: Tu-22M3: News

    Post  George1 Sat Apr 16, 2022 5:31 pm

    limb wrote:Why can't Tu-22s launch kinzhal, Kh-35 or Kh-59 yet?

    su-35s, su-30sm. su-34 can launch them. You dont need such a big aircraft to carry those missiles
    GarryB
    GarryB


    Posts : 38481
    Points : 38981
    Join date : 2010-03-30
    Location : New Zealand

    Tu-22M3: News - Page 34 Empty Re: Tu-22M3: News

    Post  GarryB Sun Apr 17, 2022 4:26 am

    Why can't Tu-22s launch kinzhal, Kh-35 or Kh-59 yet?

    The Tu-22M3 (without inflight refuelling) is the equivalent of two F-111s that use inflight refuelling in terms of range and payload... the Americans demanded all sorts of promises from the Soviets and now the Russians over what it can or can't do... including removing the inflight refuelling probe and limiting the range of the missiles it can carry.

    I rather suspect those promises will be forgotten now, but the Tu-22M3M upgrade included adding a wide range of new and existing guided air to ground weapons.

    Kinzhal might be on that list but being a solid rocket motor powered weapon its performance from the Backfire wont be as impressive as it is when launched from a mach 2.4 MiG-31K at 18km altitude.

    There is an interesting range of new weapons that will be available soon that will make it very well equipped I suspect.
    Podlodka77
    Podlodka77


    Posts : 2589
    Points : 2591
    Join date : 2022-01-06
    Location : Z

    Tu-22M3: News - Page 34 Empty Re: Tu-22M3: News

    Post  Podlodka77 Tue Nov 29, 2022 10:33 am

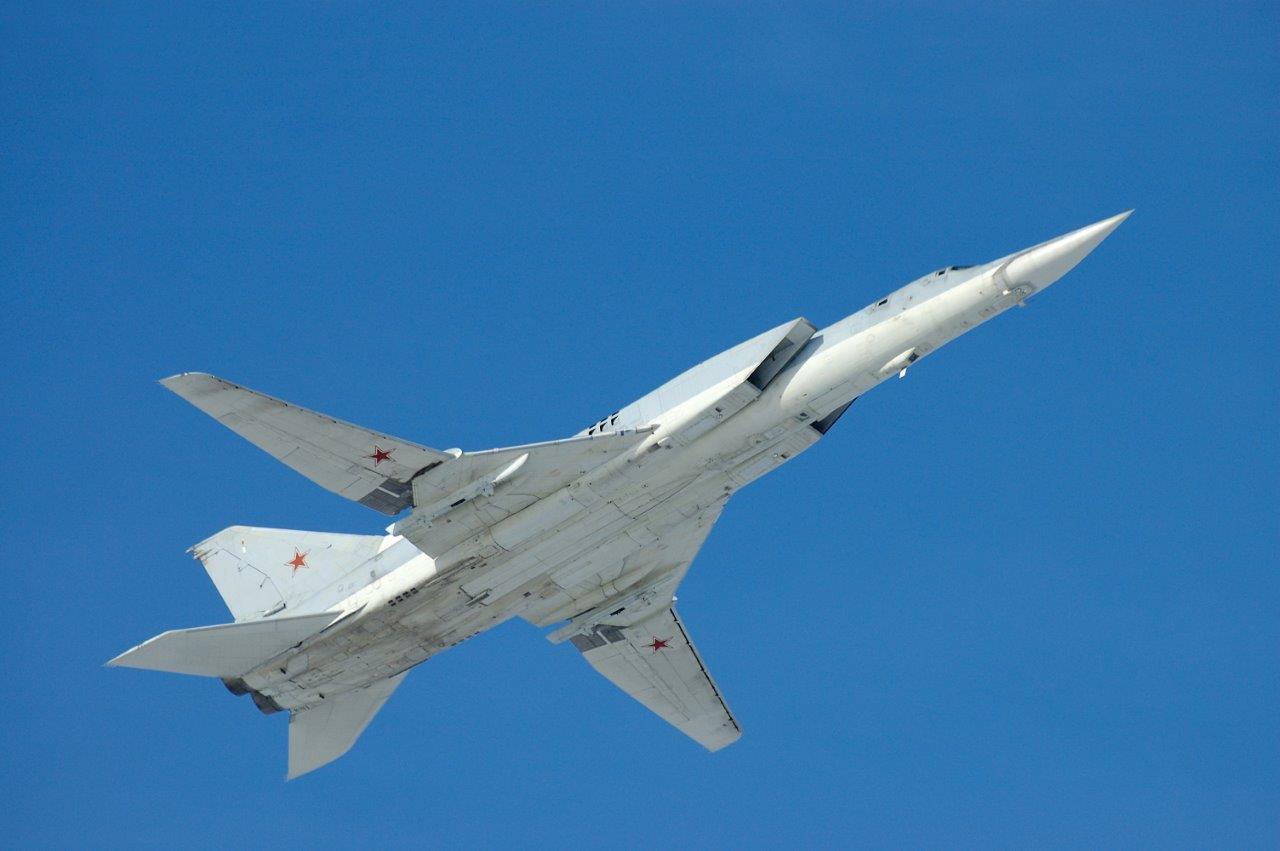

    ENG PJSC Tupolev delivered another Tu-22M3 missile carrier-bomber to the Long-Range Aviation of the Russian Aerospace Forces after repair.

    The necessary maintenance work was carried out on the aircraft, and the delivery and acceptance tests were successfully completed. After the acceptance flight, the aircraft was delivered to the customer.

    https://t.me/uac_ru/884

    Tu-22M3: News - Page 34 Photo_46

    GarryB, franco, psg, LMFS and Hole like this post

    psg
    psg


    Posts : 74
    Points : 79
    Join date : 2011-02-19

    Tu-22M3: News - Page 34 Empty Re: Tu-22M3: News

    Post  psg Tue Nov 29, 2022 1:37 pm

    I really hope they push to get the most out of this airframe, it still has massive potential as a heavy tactical bomber, powerful ECM system, DIRCM, stand off weapons like the Groms, Glide bombs K08B, K029B and other guided bombs KAB-500s to name just a few. Also a updated version of the SVP-24

    With inflight refuelling these beasts can do a hell of a lot serious damage, they have the numbers to pose a very serious threat. More so, with small and medium sized conventional cruise missiles.

    GarryB, flamming_python and Hole like this post

    lancelot
    lancelot


    Posts : 2556
    Points : 2554
    Join date : 2020-10-18

    Tu-22M3: News - Page 34 Empty Re: Tu-22M3: News

    Post  lancelot Tue Nov 29, 2022 5:11 pm

    I do not get it. Why not upgrade it to Tu-22M3M?
    Hole
    Hole


    Posts : 10346
    Points : 10326
    Join date : 2018-03-24
    Age : 47
    Location : Scholzistan

    Tu-22M3: News - Page 34 Empty Re: Tu-22M3: News

    Post  Hole Tue Nov 29, 2022 6:28 pm

    Still testing the protoype. Don´t know why. 4 years after the first flight. The plane got modified engines and new electronics. Shouldn´t take that long. Maybe they´re testing the use of new weapons from it (I hope so).

    GarryB and psg like this post

    psg
    psg


    Posts : 74
    Points : 79
    Join date : 2011-02-19

    Tu-22M3: News - Page 34 Empty Re: Tu-22M3: News

    Post  psg Tue Nov 29, 2022 9:18 pm

    Weapons integration and various flight profile with weapons release, takes time and lots of fine tuning.

    Possible adaptable rotary weapons bay, allowing mixed loads internally and multi load external pylons, under the intakes etc.

    These bombers could really do with airborne active protection system, giving them the ability to intercept incoming missiles, for self-defence.

    GarryB, Hole and Podlodka77 like this post

    Hole
    Hole


    Posts : 10346
    Points : 10326
    Join date : 2018-03-24
    Age : 47
    Location : Scholzistan

    Tu-22M3: News - Page 34 Empty Re: Tu-22M3: News

    Post  Hole Tue Nov 29, 2022 10:09 pm

    They should integrate the recon and jammer pods developed for the Su-34.

    GarryB, psg and Podlodka77 like this post

    GarryB
    GarryB


    Posts : 38481
    Points : 38981
    Join date : 2010-03-30
    Location : New Zealand

    Tu-22M3: News - Page 34 Empty Re: Tu-22M3: News

    Post  GarryB Wed Nov 30, 2022 2:37 am

    I always thought the Tu-22M3 was interesting enough to even warrant a long range interceptor version... its nose is enormous... imagine the size of the AESA radar you could fit there, and the electricity takeoff you could get from two 25 ton thrust jet engines would be enormous too.

    They did test a jammer version of the aircraft that would be awesome for SEAD missions where a supersonic heavy jammer with ARMs could operate with the bombers, but they found the power takeoff with an Il-76 was greater so the jammers could be rather more powerful and operate from further away...

    Regarding the Tu-22M3M they talked about all sorts of upgrades and changes that included lengthening the bomb bays and even changing the aircraft from four seaters to two seaters with the new automated air defence systems (as fitted to the Su-57 and PAK DA).... it will be interesting to see what they actually end up doing though the Combat Approved TV episode on the aircraft clearly showed an inflight refuelling probe on the top of the nose of the aircraft.

    There has been a lot of talk about the US demanding promises about the range of missiles the Tu-22M3M will be allowed to carry, but I would expect none of those promises were written promises and even if they were, well the US rips up such agreements when it suits them, and this is currently war.

    psg, flamming_python, Big_Gazza, Hole, Broski and Podlodka77 like this post

    flamming_python
    flamming_python


    Posts : 8988
    Points : 9050
    Join date : 2012-01-30

    Tu-22M3: News - Page 34 Empty Re: Tu-22M3: News

    Post  flamming_python Wed Nov 30, 2022 2:06 pm

    Thing about the Tu-22M3 is that it takes a lot longer to climb up to altitude than the MiG-31 does

    This is the factor IMO that made the MiG-31 the prime Kinzhal carrier as well

    But yeah a long-range interceptor version of the Tu-22M3 would still be very interesting
    psg
    psg


    Posts : 74
    Points : 79
    Join date : 2011-02-19

    Tu-22M3: News - Page 34 Empty Re: Tu-22M3: News

    Post  psg Wed Nov 30, 2022 3:00 pm

    Hands down the MiG-31 is a total beast, nothing comes near it. My second favourite is the MiG-27. Again that platform can be pushed more, in terms of other multi role capabilities, namely SEAD and rapid reaction high altitude bombing.

    Always wondered why they couldn't develop the R33 missile/body into ARM and carry 6 under the belly semi-recessed like the MiG-31M, obviously the missile body size has 200+ km range.

    Back to the topic, the interceptor version could be based in areas to cover AEW gaps, because of the the ability to carry alot of long range missiles it wouldn't need much support other than inflight refuelling. But that nose, would house one hell of a radar, enough room to have side mounted radars in there as well, giving full 240 degree coverage.

    Hole, Broski, Belisarius and Podlodka77 like this post

    GarryB
    GarryB


    Posts : 38481
    Points : 38981
    Join date : 2010-03-30
    Location : New Zealand

    Tu-22M3: News - Page 34 Empty Re: Tu-22M3: News

    Post  GarryB Thu Dec 01, 2022 9:27 am

    Thing about the Tu-22M3 is that it takes a lot longer to climb up to altitude than the MiG-31 does

    Being rocket powered altitude and speed of launch are quite important for the Dagger... at likely 18km and a mach 2.6 launch speed probably adds quite a few kms to the range of the missile, over perhaps the 12km launch altitude the Tu-22M could manage and perhaps mach 2.0 launch speed with external Daggers fitted... even if it could probably carry four.

    psg, Hole and Broski like this post

    sepheronx
    sepheronx


    Posts : 8431
    Points : 8693
    Join date : 2009-08-06
    Age : 34
    Location : Canada

    Tu-22M3: News - Page 34 Empty Re: Tu-22M3: News

    Post  sepheronx Thu Dec 01, 2022 4:13 pm

    Indeed a lot can be done with this platform.

    I remember reading years ago, some put forward that there was initial plans to put something like an upgraded Irbis-E style radar on the aircraft - some figures said it could be massive detection range with such a radar ~600km. But anyway, a radar, modified engines for better efficiency and newest equipment for EW capabilities or launching more advanced long range missiles would make the Tu-22M a platform perfect for a missile truck.

    Sponsored content


    Tu-22M3: News - Page 34 Empty Re: Tu-22M3: News

    Post  Sponsored content


      Current date/time is Sat Feb 24, 2024 7:12 am
