Typhoon MRAP family vehicles

Are these Typhoon 4x4s air-droppable?

Yes.

Hole wrote:...Yes.

Alright, that's officially settled

So it's Typhoon for VDV and Atlet for Army

Completed the creation of a new RCB reconnaissance vehicle
Today, 15: 50

The RChBZ troops will soon receive a new RKhM-9 radiation, chemical and biological (RCB) reconnaissance vehicle. The creation of the machine was completed by the Tula Plant of the Roskhimzashchita corporation. This was announced by the Deputy Minister of Defense of the Russian Federation Alexei Krivoruchko.

PJSC "Plant" Tula "completed the development work of" Bogomaz ", within the framework of which a promising RCB reconnaissance vehicle RHM-9 with a completely new instrument base was created

- said the deputy minister.

The new RCB reconnaissance vehicle was created on the basis of the KamAZ-63969 Typhoon armored vehicle and is designed to conduct radiation, chemical and biological reconnaissance on the battlefield. At the same time, the design of the vehicle allows data collection without the crew leaving the vehicle. In terms of efficiency, the new vehicle is two times superior to the RCB reconnaissance vehicles of previous generations.

The development of new vehicles PXM-9 based on Typhoon and PXM-8 based on the Tiger armored car was reported in 2017. In 2018, both vehicles were demonstrated during a private display at the Army-2018 International Military-Technical Forum. In 2019, they were shown during the Victory Parade in Tula.

PJSC "Plant Tula" specializes in mobile means of radiation, chemical and biological reconnaissance. It was at this plant that the RKhM-2S was created on the basis of the GT-MU, RKhM-4 and RKhM-6 tracked transporters on the BTR-80 and RKhM-5 chassis based on the BMD-3 for the Airborne Forces.

https://en.topwar.ru/179513-zaversheno-sozdanie-novoj-mashiny-rhb-razvedki.html

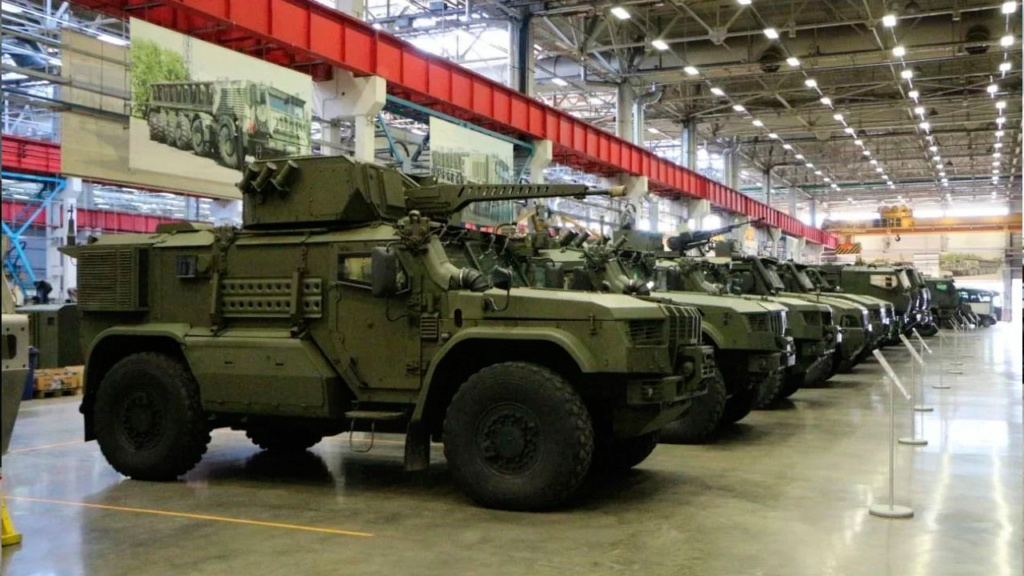

The Armed Forces of Russia will receive armored escort vehicles "Partner"

As reported by the TASS news agency, the first batch of 11 newest armored escort vehicles "Partner" will enter the Russian troops in 2021. This was announced to reporters by the head of the military representative office Vladimir Kuimov as part of a working trip to the Remdizel plant (Naberezhnye Chelny) by the Deputy Minister of Defense of the Russian Federation Alexei Krivoruchko on June 17, 2021. Armored escort vehicle "Partner" based on the protected vehicle K-4386 "Typhoon-VDV" (4x4) with the combat module BM-30-D (32B01) on display in the workshop of JSC "Remdizel" (Naberezhnye Chelny) (c) Ministry of Defense of the Russian Federation



"In 2021, 11 "Partner" armored vehicles of the "Typhoon" family will be delivered, - said Kuimov.

According to the chief designer of" Remdiesel "Igor Zarakhovich, the" Partner "vehicle was created on the basis of the" Typhoon-VDV "armored car." Partner "is more than a modern and more secure means of escorting convoys, "he said.

Also, the RF Ministry of Defense will receive more than 50 Linza sanitary armored vehicles this year, Kuimov said. According to him, “a contract has been signed for the supply of 56 Linza sanitary armored vehicles of the Typhoon family to the troops this year. The Linza sanitary armored vehicle is designed to search, collect and remove the wounded from the battlefield and from the centers of mass sanitary losses. the base vehicle uses an armored vehicle with a 4x4 wheel arrangement of the Typhoon family, the curb weight of the vehicle is more than 15 tons, its booking provides protection for the crew and the wounded from armor-piercing bullets from a rifle cartridge 7.62 x 54 mm, as well as shrapnel.

During his visit to the plant, the deputy minister discussed with the management of the enterprise the implementation of the state defense order and the execution of government contracts, as well as the import substitution of foreign components and the production of armored vehicles of a new model range.

Reliable wheels

The chief designer of the enterprise, Igor Zarakhovich, told reporters that from next year all Remdiesel cars will be equipped with new domestic wheels with combat-resistant rubber inserts. "The new Kama wheels are intended for all our cars, they are produced in Nizhnekamsk. Now they are in the process of state tests. After the completion of state tests, we will begin to equip our cars with these wheels," Zarakhovich said. Some models will receive new wheels this year, he said.

The chief designer said that the new Russian wheels have "a combat-resistant rubber insert, which allows them to continue moving when they are broken." “This is a full-fledged analogue of the tires that we buy abroad,” he added.

"Remdizel" produces equipment for use in the Armed Forces, mainly armored vehicles of the "Typhoon" line of different classes and different wheel arrangements. The volume of the state defense order at the enterprise is 93%. On average, the plant produces about 300 armored vehicles per year; in 2020, Remdizel produced 250 vehicles for the needs of the Ministry of Defense.

Bmpd's comment. As can be judged, the armored escort vehicle "Partner" is a protected vehicle K-4386 "Typhoon-VDV" (4x4), equipped with a remotely controlled combat module BM-30-D (32B01) developed by JSC "Central Research Institute" Burevestnik ", with a 30-mm 2A42 automatic cannon in a casing and a 7.62-mm PKTM machine gun paired with it.

https://bmpd.livejournal.com/4334060.html

Linza Medical armored vehicles entered the Guards Tank Army of the Western Military District.

Three units of the latest medical armored vehicles of the tactical link of the Linza family were delivered under the state defense order to the formations and military units of the Guards Tank Army of the Western Military District (ZVO).

The vehicle is designed to search, collect and transport the wounded from the battlefield and from the centers of mass sanitary losses. Created on the basis of KAMAZ "Typhoon 4x4". The vehicle is protected according to the third class of booking, protects against all types of small arms, and can withstand an explosion of up to eight kg in TNT equivalent. The wheels are armored. So, a car with a damaged wheel can travel up to 50 km on rough terrain.

In total, by the end of this year, more than 10 units of these vehicles will be delivered to the formations and military units of the Western Military District tank formation.

Source:

Inside the Linza medical armored car

The batch of armored vehicles "Typhoon" K-53949 4x4 entered the Central Military District for the first time
September 8, 2021
27

A batch of Typhoon K-53949 4X4 armored vehicles entered service with the Central Military District for the first time. According to the press service of the Central Military District, the armored cars were sent to the units of the combined arms armies of the district.

According to the report, this batch included eight armored vehicles that went to the Samara and Novosibirsk regions. How the armored cars were distributed among the divisions is not reported. It is clarified that the servicemen have already begun to master the new technology.

Earlier, the Ministry of Defense decided to equip special forces units with these armored vehicles. According to the military, Typhoon K-53949, also nicknamed Typhoonenk, can operate autonomously for a long time, while providing sufficiently reliable protection for reconnaissance groups operating behind enemy lines.

The curb weight of the armored car reaches 14,000 kg, and the full -16,000 kg. Machine length - 6760 mm. Width -2550 mm. Height -2840 mm. The ground clearance is 433 mm. A diesel six-cylinder engine with a capacity of 350 hp is installed. The maximum speed on the highway is 105 km / h. Cruising range up to 850 km. Capacity - 10 people.

The armored car can be armed with a remote-controlled combat module with a 12.7-mm machine gun or a 30-mm automatic cannon. Depending on the tasks performed, various weapons or equipment can be installed on the machine.

The two-axle armored car has powerful armor protection capable of withstanding bullets from a Kalashnikov assault rifle or an SVD sniper rifle. The declared protection against various mines and land mines is 6 kg of TNT under the bottom and any wheel. Tires tubeless with mine insert, with adjustable air pressure.

KAMAZ-63968 Typhoon-K after conducting tests by firing and detonating 6 kg of TNT.

Chinook: Flexin'


Mi-26: Do you even lift bro?


I'm quite digging this 4*4 Kamaz, its got nice proportions, just the right amount of aesthetic panels, seems to be a maturely featured MRAP, production is now fully domesticated, simplified & high parts commonality with the bigger 6*6 model.

Found this vid with good walkaround/interior of both versions

RKhM-9

Hole wrote:

I do like the cab door - quite a neat design.

Mir wrote:...I do like the cab door - quite a neat design.

Until it croaks and you have to close it

That was the original test prototype design, why are there pics of it now?

Because the tirelessly working russian engineers turned it into an NBC revon vehicle and presented it at the Army 21 exhibition.

Until it croaks and you have to close it

In case of hydraulic failure and you have to close the door manually I am sure the driver will have attached a rope...

Mir wrote:

I do like the cab door - quite a neat design.

Until you end up sitting next to a mud covered staircase or one of the crewmen steps in some dung.

PapaDragon wrote:
Until it croaks and you have to close it

In case of an attack that leaves the door disabled - do you really want to stay in the vehicle at all, knowing that there are weapons strong enough to punch through the vehicle's protection? If the answer is no, then drop-down doors make a lot of sense since on their own with the lock disengaged the natural tendency of the door would be to open just from gravity, which is neat because if someone is injured they might have trouble opening heavy metal doors.

lyle6 wrote:
In case of an attack that leaves the door disabled - do you really want to stay in the vehicle at all, knowing that there are weapons strong enough to punch through the vehicle's protection?

If there are enemy tank, helicopters or attack aircraft they such tactics may be advisable, but if it is only 1 HMG or man with a rocket launcher backed up by a dozen riflemen then there could be an argument for staying inside.

Hole wrote:Because the tirelessly working russian engineers turned it into an NBC revon vehicle and presented it at the Army 21 exhibition.

So exhibition clickbait
Surely they should just put that gear into an existing production 6*6 version

Until you end up sitting next to a mud covered staircase or one of the crewmen steps in some dung.

It is the drivers door... if he steps in poo then it is his problem... I would say he would not be getting into and out of the vehicle all that often...

Participants of the exercise "Indestructible Brotherhood-2021" highly appreciated the medical armored car "Linza"

August 26, 02:33
TAСС

Source: serial deliveries of the new RHM-9 chemical reconnaissance vehicle should begin before the end of the year




For the first time RHM-9 was shown to the general public at the Army forum in 2021

MOSCOW, 26 August. /TASS/. The newest radiation, chemical and biological (RCB) reconnaissance vehicle RHM-9 based on the Typhoon-K vehicle has been adopted by the RHBZ troops, serial deliveries should begin before the end of 2022. This was told to TASS by a source in the military-industrial complex.

"The promising machine RHM-9 has been adopted by the Russian army, serial deliveries to the RHBZ troops should begin before the end of this year," the source said, without specifying the number of transferred vehicles.
According to him, this model based on the Typhoon-K vehicle is currently the most advanced in its class and significantly outperforms the previous generation RHM-6 vehicle based on the BTR-80 armored personnel carrier. "An absolutely new instrumentation complex has been specially developed for the RHM-9, which makes it possible to double the speed and range of reconnaissance," he added.

TASS does not have official confirmation of this information.

About RHM-9

RHM-9 Chassis "KamAZ-63969" "Typhoon-K" is designed for conducting radiation, chemical and biological reconnaissance with the transmission of reconnaissance data through the channels of the automated command and control system and radio channels to command posts. The maximum speed over rough terrain is up to 20 km / h, on roads - up to 50 km / h. Gross weight - 20,000 kg. Combat crew - three people.
It is also known that the car carries its own drone with a video camera and radiation monitoring devices. It can carry out photo and video shooting at any time of the day and measurements at distances up to 25 km from the carrier vehicle and at altitudes up to 300 m in automatic, semi-automatic and manual control modes.

For the first time, the RHM-9 was shown to the general public at the Army forum in 2021.

https://tass.ru/armiya-i-opk/15566785
