    Iran Military Advancements: News

    nomadski
    nomadski

    Posts : 1000
    Points : 1006
    Join date : 2017-01-02

    Iran Military Advancements: News - Page 6 Empty Re: Iran Military Advancements: News

    Post  nomadski on Sun Mar 03, 2019 9:29 pm

    The best method with UAV ,  is to allow for independent passive reception and AI  analysis . There are I think 3D radars that can analyse target and engage . Without need for pilot or operator . Short range directional beams are hard to intercept , and are another method . Any signal picked up, can be , we assume ,unscrambled . Given time and resources . Unless the code used is a one off . Per mission or per device . Randomly generated  each time . And shared only between two devices . Even if one device is compromised  , then this only affects a small number of devices . And not entire system . So say ten long range UAV  , attacking ships at sea , with a pilot flying each , will heve ten different codes , randomly generated , for each UAV . Even each control signal for each move , say left or right , is coded differently . Never the same . And discarded at the end . A lot of code generation . I don't even know if this is possible with live video feed . Needing heavy data transfer .
    JohninMK
    JohninMK

    Posts : 7528
    Points : 7607
    Join date : 2015-06-16
    Location : England

    Iran Military Advancements: News - Page 6 Empty Re: Iran Military Advancements: News

    Post  JohninMK on Sun Mar 03, 2019 9:45 pm

    My father was a fighter controller using radar in north Africa in WW2. They had a big problem with Luftwaffe planes attacking from Crete avoiding contact by listening to their radios tuned to RAF frequencies so he developed a code to home his fighters onto their targets. It was simple, two words, left or right. An instruction of which way to turn to intercept. Then hourly they randomly flipped left to mean right etc. I still have a pilot's silk scarf that Dad claimed off a particularly angry shot down pilot.

    Simply changed parameters in complex coding can be very effective.
    nomadski
    nomadski

    Posts : 1000
    Points : 1006
    Join date : 2017-01-02

    Iran Military Advancements: News - Page 6 Empty IRGC iran us uav

    Post  nomadski on Sun Mar 03, 2019 10:16 pm

    Yes , if you can hide location of radar or radio mast . Make immune from jamming or anti - radiation attack . In ww2 , they did not have all this . A passive system is better . Without sending out signal . Well most of the time .  In case of using radar , the UAV can make use of it , during last few seconds . To set guidance parameter for gyro etc . Then switch off . Initial navigation by star light . Homing in by passive IR .  Final attack by radar . No pilot or operator . One way trip . Kamikaze UAV .  Longer range . Warhead WD40 !

    Iran released photo of 50 of the latest long range drone ( oved 1000 km ) , in formation flight . And a simultaneous hit on target . So they carry significant payload . So be it by missile or drone , means of delivery exists . So the steps are :

    ( 1 ) Display means of delivery .

    ( 2 ) Display warhead capability .

    ( 3 ) Display significant number of completed system .

    ( 4 ) Close the Hormuz to flow of oil .

    ( 5 ) Watch the yank greatest defeat in history on TV .


    George1
    George1

    Posts : 14678
    Points : 15177
    Join date : 2011-12-22
    Location : Greece

    Iran Military Advancements: News - Page 6 Empty Re: Iran Military Advancements: News

    Post  George1 on Thu Apr 25, 2019 11:42 pm

    Three Iranian missile projects for army aviation


    Three Iranian guided missile projects for army aviation, which are currently being tested, were officially presented in Iran.

    One of them is the aviation version of the Dehlaviyeh ATGM with a laser-beam control system, that is, Iranian copies of the Kornet, mass-produced in Iran. Let me remind you that earlier a photo of one of the Iranian multi-purpose helicopters with ATGM Dehlaviyeh already flashed, and now they were officially shown installed on the AH-1J helicopter.

    Iran Military Advancements: News - Page 6 6798728_original

    Iran Military Advancements: News - Page 6 2758350_1000

    The next project is an air-to-ground rocket - Heydar. The rocket can be equipped with different homing heads and works on the principle of "shot-forget". Range more than 8 km.

    Iran Military Advancements: News - Page 6 2755691_1000

    Iran Military Advancements: News - Page 6 2756451_1000

    Iran Military Advancements: News - Page 6 2756166_1000

    Third rocket Ghamar Bani Hashem. It is said about her that she can work on both air and ground targets, but judging by her appearance in general, this is clearly primarily an air-to-air missile.

    Iran Military Advancements: News - Page 6 2757072_1000

    Iran Military Advancements: News - Page 6 2757358_1000



    https://bmpd.livejournal.com/3624235.html
    nomadski
    nomadski

    Posts : 1000
    Points : 1006
    Join date : 2017-01-02

    Iran Military Advancements: News - Page 6 Empty Re: Iran Military Advancements: News

    Post  nomadski on Fri Apr 26, 2019 4:31 pm

    So we  want to put expensive helicopter to attack ground target with short range ATGM .  It did not work so well for the yank in Vietnam nor soviet in Afghanistan . Iran has limited numbers . Best use them against higher value target at  sea where attack most probably come from and more difficult to stop . Use anti - ship missiles . Arrange for refuelling at sea . Use smart artillery and drones for land attack , mounted on cheaper ground vehicles . Same thing for the use of close support attack aircraft .

    About stopping flow of oil . Tell Saudi  that you may hit oil well head . And they have to retaliate . So both will loose oil industry . Instead they can secretly arrange for smoke near well , and so can Iran . Without any shot being fired . The governments then forced to cut oil output because of " damage " . This saves face . Put strain on market . Stop sanction . Stop war . Alternative is region going up in flame . Loose loose . Not win win .

    Since ships carry heavier missile with longer range than helicopters . Then helicopters must enter into firing range of ship missile , before firing their own missiles . This means they must disable ship radar and be low RCS also . They will be able to be refueled  at sea , unlike jets . They can pick up floating fuel pods from the water surface , released earlier by a sub . Using a winch and hooks.
    avatar
    yavar

    Posts : 373
    Points : 381
    Join date : 2017-03-02

    Iran Military Advancements: News - Page 6 Empty Re: Iran Military Advancements: News

    Post  yavar on Sun Jul 07, 2019 11:05 pm



    Iran locally-manufactured system IRGC Military Communication System “Sepehr-110” for voice and data transmission / system is also invulnerable to hacks, eavesdropping, radio jamming, and electromagnetic disturbance.
    https://tn.ai/2048683
    George1
    George1

    Posts : 14678
    Points : 15177
    Join date : 2011-12-22
    Location : Greece

    Iran Military Advancements: News - Page 6 Empty Re: Iran Military Advancements: News

    Post  George1 on Wed Aug 07, 2019 1:25 pm

    Official presentation of guided bombs Balaban, Yasin and Ghaem family took place in Iran


    In principle, these guided aerial bombs were already known, so the images of the Balaban and Yasin bombs (called JDAM-ER) were shown at exhibitions earlier this year among the products of the Iranian Defense Industry Organization, and the first version of the Ghaem bombs (Qaem) was presented together with the UAV Mohajer-6. However, it turned out that under the name Ghaem, we now have a whole family of guided bombs for drones.

    In the background, on the right side of the photo, the largest aerial bomb is the Yasir (JDAM-ER), the planned guided aerial bomb, and the Balaban, the guided aerial bomb, on the left. In the foreground are guided bombs of the Qaem family: on the left side of Qaem-1, Qaem-9 in the center and Qaem-5 on the right side.

    Iran Military Advancements: News - Page 6 71189010

    Ghaem-9 is a new version of the bomb for large shock UAVs like Mohajer-6 and Shahed-129, Ghaem-5 is the standard guided bomb that immediately went into production with the Mohajer-6 UAV and already received a baptism of fire during strikes on positions of Kurdish groups in the border areas of Northern Iraq, and Ghaem-1 is a smaller version of it designed for use with relatively small UAVs, such as the widespread Iranian tactical reconnaissance UAVs Ababil-3. It is stated that they can be equipped with different homing heads.

    Yasir guided planning bombs (JDAM-ER) have a flight range of more than 50 km and were shown for the first time last year among the armaments of the Su-22 AKSIR fighter bomber upgraded in Iran and there were already shots of their use from F-7 fighters. In turn, Balaban guided planning bombs can hit a target at a shorter distance (more than 25 km), but they are also noticeably smaller. On the video frames, by the way, you can notice how they are launched including with jet drones Karrar.
    On target, these planning bombs Yasir and Balaban are guided by the installed inertial and satellite navigation systems.


    Yasin (JDAM-ER)

    Iran Military Advancements: News - Page 6 28862810
    Balaban
    Iran Military Advancements: News - Page 6 28865110
    Qaem-1
    Iran Military Advancements: News - Page 6 Q110

    Qaem-5
    Iran Military Advancements: News - Page 6 Q510

    Qaem-9
    Iran Military Advancements: News - Page 6 Q910

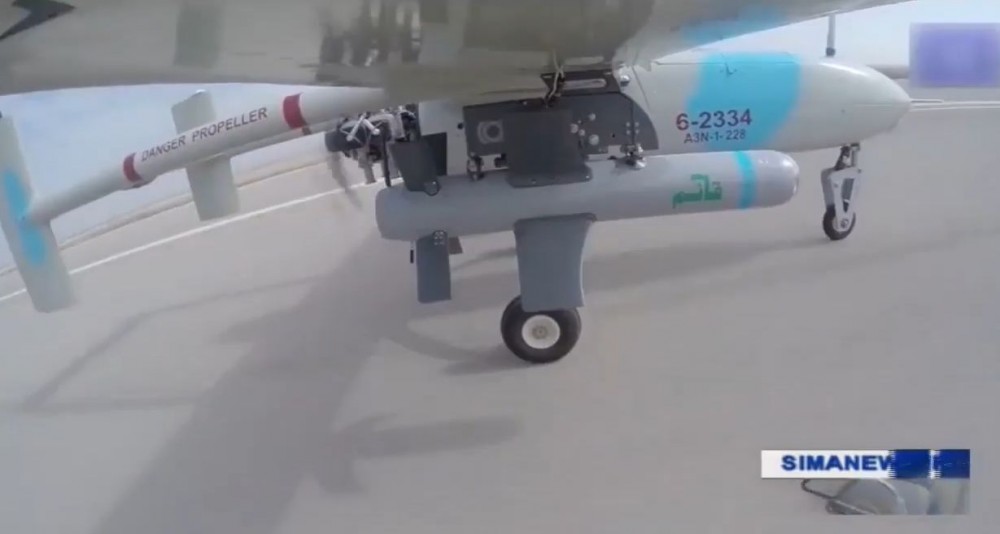

    Ababil-3 serial production number "A3N-1-228" with Qaem-1 guided bombs
    Iran Military Advancements: News - Page 6 28918410
    Iranian Air Force F-7M Fighters with Yasir Guided Aerial Bombs (JDAM-ER)
    Iran Military Advancements: News - Page 6 28920510
    Iran Military Advancements: News - Page 6 28923910





    https://bmpd.livejournal.com/3729416.html
    George1
    George1

    Posts : 14678
    Points : 15177
    Join date : 2011-12-22
    Location : Greece

    Iran Military Advancements: News - Page 6 Empty Re: Iran Military Advancements: News

    Post  George1 on Thu Dec 12, 2019 10:40 pm

    George1
    George1

    Posts : 14678
    Points : 15177
    Join date : 2011-12-22
    Location : Greece

    Iran Military Advancements: News - Page 6 Empty Re: Iran Military Advancements: News

    Post  George1 on Sun Feb 09, 2020 10:10 pm

    Iran unveils ballistic missile, 'new generation' engines

    Issued on: 09/02/2020 - 13:02Modified: 09/02/2020 - 13:02

    Tehran (AFP)

    Iran's Revolutionary Guards unveiled Sunday a short-range ballistic missile that they said can be powered by a "new generation" of engines designed to put satellites into orbit.

    The Guards' Sepahnews website said the Raad-500 missile was equipped with new Zoheir engines made of composite materials lighter than on earlier steel models.

    It also unveiled Salman engines made of the same materials but with a "movable nozzle" for the delivery of satellites into space.

    The Raad was "a new generation missile that has half the weight of a Fateh-110 missile but with 200 kilometres more range," it added.

    The Fateh-110 is a ballistic ground-to-ground missile first unveiled in 2002. Its latest generation has a range of 300 kilometres (186 miles).

    Islamic Revolutionary Guard Corps commander Major General Hossein Salami unveiled the missile and engines alongside IRGC aerospace chief Brigadier General Amirali Hajizadeh.

    "The complicated achievements on the bleeding edge of global technology that were unveiled today are our key to entering space," Salami said.

    Salami noted the movable nozzle on the new engine allowed "manoeuvrability beyond the atmosphere" and amounted to a "leap in modern missile technology".

    The new technologies that made the missiles "cheaper, lighter, faster and more precise" could be applied to all of Iran's missile classes, he added.

    Tensions between Iran and its arch foe the United States have soared since May 2018 when US President Donald Trump withdrew from a nuclear deal that offered Tehran sanctions relief in return for curbs to prevent it acquiring nuclear weapons.

    Washington says it seeks to rein in Iran's ballistic missile programme as well as its "destabilising behaviour" in the region.

    It has since slapped crippling sanctions on Iran as part of its "maximum pressure" campaign, with Tehran hitting back by progressively rolling back commitments to the nuclear deal.

    The US has also raised concerns in the past about Iran's satellite programme, saying the launch of a carrier rocket in January 2019 amounted to a violation of curbs on its development of ballistic missiles.

    Iran maintains it has no intention of acquiring nuclear weapons, and says its aerospace activities are peaceful and comply with a UN Security Council resolution.

    https://www.france24.com/en/20200209-iran-unveils-ballistic-missile-new-generation-engines

    https://bmpd.livejournal.com/3928119.html
    JohninMK
    JohninMK

    Posts : 7528
    Points : 7607
    Join date : 2015-06-16
    Location : England

    Iran Military Advancements: News - Page 6 Empty Re: Iran Military Advancements: News

    Post  JohninMK on Sat Mar 21, 2020 11:16 pm

    He's talking about the different warheads, cluster munitions?

    Y.N.M.S
    @ynms79797979

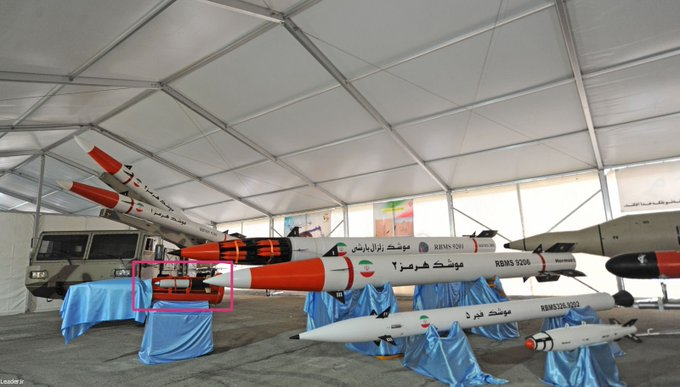

    The Sepah Aerospace Exhibition Series was full of interesting things

    https://twitter.com/ynms79797979/status/1241151687265587203

    Iran Military Advancements: News - Page 6 ETl03wbXkAE98g4?format=png&name=small
    George1
    George1

    Posts : 14678
    Points : 15177
    Join date : 2011-12-22
    Location : Greece

    Iran Military Advancements: News - Page 6 Empty Re: Iran Military Advancements: News

    Post  George1 on Sat May 09, 2020 11:18 pm

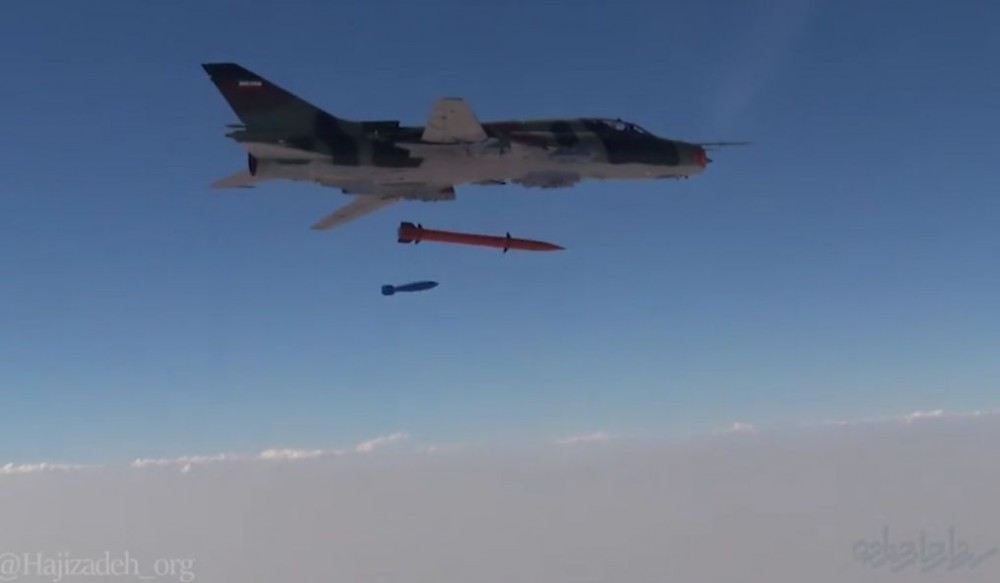

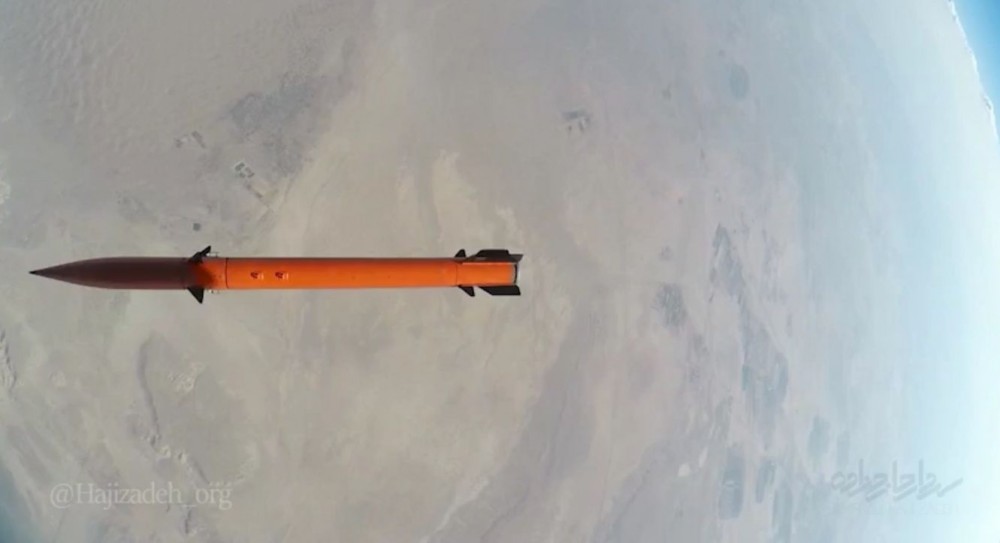

    Tests in Iran of aeroballistic missiles


    Judging by the shots from Iran that appeared today [May 9, 2020] with cutting various achievements of the Aerospace Forces of the Islamic Revolutionary Guards Corps, they are testing an aeroballistic missile, which was apparently created on the basis of the Iranian 333-mm guided missile Fajr-4. As a carrier, one of the Su-22M4 IRGC-AF fighter-bombers restored and modernized in Iran is used.

    In this case, a throw test is probably shown here.

    Iran Military Advancements: News - Page 6 144
    Iran Military Advancements: News - Page 6 238
    Iran Military Advancements: News - Page 6 332



    https://bmpd.livejournal.com/4020512.html
