    Re: Project 2038.0: Steregushchy Corvette

    Post  GarryB on Wed Aug 25, 2010 10:41 am

    Have they released more info about it yet?

    Most of the info I have read was pretty vague... just describing it as multipurpose boat lighter than a destroyer... which is pretty much what a Frigate is.

    Robert.V
    Private
    Private

    Posts : 44
    Points : 47
    Join date : 2010-07-15

    Re: Project 2038.0: Steregushchy Corvette

    Post  Robert.V on Wed Aug 25, 2010 10:30 pm

    Apparently with the 20380 they tried to make a corvette in to a light destroyer (well in western terms). The main problem seems to be the Furke rader and integration with navalized Vityaz complex that and nor is Furke to the paper spec.

    And there are few other problems it seems.

    I kinda like were they are heading though if they can pull it off. Just imagine a corvette packing Klub complex, a mix of 9M100 and 9M96 missiles for the AAW. Add the very capable Paket-E anti-submarine/torpedo system, a monster of a main gun and well ....Shocked


    On the other hand cramming all that into 2200 +/- ton displacement ship. One hit and it would probably light up like a Christmas tree and if not the damage control team would have an almost impossible task on their hands.


    GarryB wrote:Have they released more info about it yet?

    Most of the info I have read was pretty vague... just describing it as multipurpose boat lighter than a destroyer... which is pretty much what a Frigate is.

    Few tid bits here and there and that's about it.







    Russian Patriot
    Colonel
    Colonel

    Posts : 1168
    Points : 2062
    Join date : 2009-07-21
    Age : 25
    Location : USA- although I am Russian

    Re: Project 2038.0: Steregushchy Corvette

    Post  Russian Patriot on Sat Aug 28, 2010 10:12 pm

    I would wait until new info is revealed! Then make predictions!

    Robert.V
    Private
    Private

    Posts : 44
    Points : 47
    Join date : 2010-07-15

    Re: Project 2038.0: Steregushchy Corvette

    Post  Robert.V on Sun Aug 29, 2010 3:17 am

    Was that directed towards me ?

    GarryB
    Colonel
    Colonel

    Posts : 15470
    Points : 16177
    Join date : 2010-03-30
    Location : New Zealand

    Re: Project 2038.0: Steregushchy Corvette

    Post  GarryB on Sun Aug 29, 2010 7:55 am

    Predictions can be fun as long as no one takes them too seriously.

    The reality is that we don't know, and part of the reason we don't know is because we simply don't have access to the information the people making the real decisions have.
    We don't know the options they can choose from, and we don't know their exact needs, or the costs of each option and the benefits each option brings.

    For example many were surprised the Russian navy has chosen the Mig-29K simply because Sukhoi has dominated Russian fighter defence procurement and on paper the Su-33KUB looks like a very capable aircraft.
    Reality interceded however and it is clear that the Mig-29K was chosen because it is a capable aircraft that is going into production for India so production capacity is paid for already.

    As Russian Patriot suggests however we really can't know till we are told and any speculation in the mean time is just that.

    Was that directed towards me ?

    He said what he was going to do so I guess he directed that at everyone... Smile
    Sometimes too much speculation leads to fantasy land, which not everyone is interested in.

    Perhaps Carlos Kopps greatest failing is he is guilty of too much speculation as an example. He is also a great source of technical information that is not speculation and therefore quite valuable in my opinon.

    Russian Patriot
    Colonel
    Colonel

    Posts : 1168
    Points : 2062
    Join date : 2009-07-21
    Age : 25
    Location : USA- although I am Russian

    Re: Project 2038.0: Steregushchy Corvette

    Post  Russian Patriot on Sun Aug 29, 2010 7:59 pm

    Robert V., that was directed to everyone! Thanks Garry, you understand me mid thought!

    Robert V., though please check your intro since the Mod there wants more details!

    On topic: I am skeptical about this new class replacing 20380 class since the navy liked the class!

    GarryB
    Colonel
    Colonel

    Posts : 15470
    Points : 16177
    Join date : 2010-03-30
    Location : New Zealand

    Re: Project 2038.0: Steregushchy Corvette

    Post  GarryB on Mon Aug 30, 2010 3:32 am

    If they liked it then I think it might be a similar case to the An-70 where they want it but the delay in actually getting it has led to a gap where new electronics and systems have become available and so before they start production it makes sense to review the design to see what can be improved or even replaced, what works and what could work better before full production starts and the design is fixed.

    For instance when these things were designed multi core processors were not common and software didn't allow for such capabilities. To pay for new stuff you might as well make sure it really is new and not just off the shelf stuck in a time zone from when it was first developed.

    In other words it is not bad but lets take this time to see if we can make it better before we commit to making lots of these things.

    Russian Patriot
    Colonel
    Colonel

    Posts : 1168
    Points : 2062
    Join date : 2009-07-21
    Age : 25
    Location : USA- although I am Russian

    Re: Project 2038.0: Steregushchy Corvette

    Post  Russian Patriot on Sat Apr 16, 2011 7:11 pm

    Russia floats out 3rd stealth corvette


    St. Petersburg's Severnaya Verf shipyard floated out a new corvette for the Russian Navy featuring stealth technology on Friday.

    The Boiky is the third Steregushchy class (Project 20380) corvette designed by the Almaz Central Marine Design Bureau.

    The first Project 20380 corvette, the Steregushchy, was put into service with Russia's Baltic Fleet in October 2008, and the second ship in the series, the Soobrazitelny, is expected to join the Russian Navy in 2011.

    The Project 20380 corvette can be deployed to destroy enemy surface ships, submarines and aircraft, and to provide artillery support for beach landings. It uses stealth technology to reduce the ship's secondary radar field, as well as its acoustic, infrared, magnetic and visual signatures.

    Russia plans to have up to 30 vessels of this class to ensure the protection of its coastal waters, as well as its oil and gas transportation routes, especially in the Black and the Baltic seas.

    Each corvette has a displacement of 2,000 metric tons, maximum speed of 27 knots, and a crew of 100.

    The ship's armament includes SS-N-25 Switchblade anti-ship missiles, a 100-mm gun and a variety of air defense and anti-submarine systems.

    ST. PETERSBURG, April 15 (RIA Novosti
    http://en.beta.rian.ru/mlitary_news/20110415/163545116.html

    GarryB
    Colonel
    Colonel

    Posts : 15470
    Points : 16177
    Join date : 2010-03-30
    Location : New Zealand

    Re: Project 2038.0: Steregushchy Corvette

    Post  GarryB on Mon Apr 18, 2011 5:12 am

    The displacement of a Corvette and the fire power and equipment of a Frigate.

    Once there are plenty of these vessels in service they can withdraw a few older obsolete small vessels from service and then with the practise and experience of making these small vessels they can start on medium sized vessels... which in many ways will actually be just larger displacement versions of these vessels with the capacity to carry larger sensors and more weapons.

    The talk of carriers seems to have been postponed to 2020 or later so they don't need a huge budget to rebuild the navy.

    In many ways the Mistrals... if they can ever agree on all the terms, will very much be lead ships with the SIC 21 NATO system seeming to be the stumbling block. The SIC-21 is a NATO battle group command and control system and the French don't seem very keen to let the Russians have it. From what I have read they are happy to provide their SENIT 9 Combat Information and Command System without requiring a licence (so in theory the Russians could put that on all their Mistrals without an extra cost).

    I guess it is a buyers market so eventually the Russians might have to pay a little more to get SIC 9, or they might decide to put something that is compatible with their own systems perhaps.

    Each service seems to be developing separate systems which could be a problem when they work together... the space and air defence branch for example will need to be able to provide data to the other branches and those branches will need to share data back.

    Vladimir79
    Grand Marshal
    Grand Marshal

    Posts : 2193
    Points : 3099
    Join date : 2009-07-10

    Re: Project 2038.0: Steregushchy Corvette

    Post  Vladimir79 on Tue Apr 19, 2011 1:45 am

    The French will put the systems on it, they just won't give the NATO coding and production license. We are arguing about it because we want the technology but the French know we are just going to copy it when the C&C functions would be worthless without upgrading our whole network.

    GarryB
    Colonel
    Colonel

    Posts : 15470
    Points : 16177
    Join date : 2010-03-30
    Location : New Zealand

    Re: Project 2038.0: Steregushchy Corvette

    Post  GarryB on Tue Apr 19, 2011 3:59 am

    The Russian Navy already has a working C4I system called Sigma or something that combines the sensor picture created by sonar, radar etc so that targets can be tracked in the air, on the sea, and under the sea and that picture can be shared between other vessels using the same system and these targets handled collectively.

    The NATO system offers more of the same but NATO standard, which is different, but not necessarily better.

    The Russians want the full system because they are paying the full system price, and they want these helicopter carriers to be more than just helicopter carriers.

    It is not an accident that the first two that will be made in France will be deployed as far away from France as is possible for a Russian ship. The potential two vessels the Russians will build will likely be based in the northern fleet, so I would expect they might prefer some interoperability with NATO systems for such a vessel.

    We are arguing about it because we want the technology but the French
    know we are just going to copy it when the C&C functions would be
    worthless without upgrading our whole network.

    Except that so far only small vessels like Corvettes have actually been the only newbuilds so far. It would not be much of a big deal to get the licence to use this new NATO system and "adapt" the useful bits of it and develop a system to put in all your ships Frigate sized or bigger.

    Russian Patriot
    Colonel
    Colonel

    Posts : 1168
    Points : 2062
    Join date : 2009-07-21
    Age : 25
    Location : USA- although I am Russian

    Re: Project 2038.0: Steregushchy Corvette

    Post  Russian Patriot on Sun May 29, 2011 10:01 pm

    and news finally arrives:




    Russian shipyard lays down new corvette


    St. Petersburg's Severnaya Verf shipyard on Thursday started construction of a new corvette for the Russian Navy.

    The project 20385 corvette is a larger and improved version of the Steregushchy class corvette. It uses stealth technology to reduce the ship's secondary radar field, as well as its acoustic, infrared, magnetic and visual signatures.

    "It is a fundamentally new ship for the Russian Navy; its performance and combat power surpass other ships of the same class," Severnaya Verf said in a statement.

    Severnaya Verf is currently fulfilling 75 percent of state orders for the construction of warships for all four Russian fleets.

    The shipyard has four Steregushchy class corvettes, two Admiral Gorshkov class frigates and a Project 18280 intelligence ship.

    Severnaya Verf is also fulfilling orders to upgrade four Koni class frigates for the Algerian navy.

    ST. PETERSBURG, May 26 (RIA Novosti)

    http://en.rian.ru/mlitary_news/20110526/164245090.html

    GarryB
    Colonel
    Colonel

    Posts : 15470
    Points : 16177
    Join date : 2010-03-30
    Location : New Zealand

    Re: Project 2038.0: Steregushchy Corvette

    Post  GarryB on Mon May 30, 2011 4:00 am

    So they get a bigger and stealthier version of a vessel they like... that has to be better right? Very Happy

    Vladimir79
    Grand Marshal
    Grand Marshal

    Posts : 2193
    Points : 3099
    Join date : 2009-07-10

    Re: Project 2038.0: Steregushchy Corvette

    Post  Vladimir79 on Mon May 30, 2011 6:08 am

    I need more information before I can say it is a good decision.

    Austin
    Colonel
    Colonel

    Posts : 5673
    Points : 6079
    Join date : 2010-05-08
    Age : 40
    Location : India

    Re: Project 2038.0: Steregushchy Corvette

    Post  Austin on Mon May 30, 2011 1:45 pm

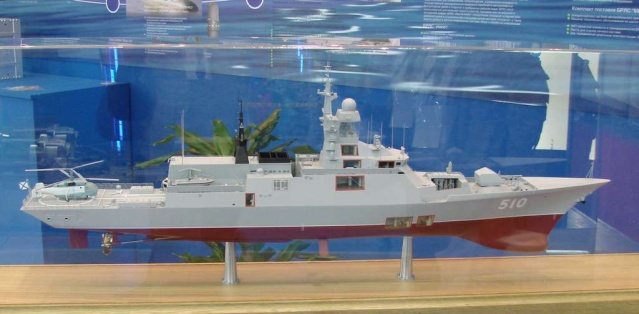

    This is what is the status of Pr 20380,20381 and 20385 ( via artjomh )

    Project 20385 is a heavily modified version of Project 20380. As the name suggests, the modifications begin with the 5th hull (it actually Projects 2038.0 and 2038.5, but the current nomenclature doesn't accept dots which were used in Soviet industry).

    There are actually 3 modifications:

    - Project 20380 (Stereguschy) - 1x Kashtan-M AD on the bow, 8 x Uran ASM and 8x Paket-NK torpedoes amidships.



    - Project 20381 (Soobrazitelny, Boiky, Sovershenny, Stoiky) - 12 x Redut AD on the bow, 8 x Uran ASM and 8x Paket-NK torpedoes amidships.



    - Project 20385 (Provorny et al.) - 8 x UKSK ASM on the bow, 8x Paket-NK torpedoes amidships, 16 x Redut AD on the stern.



    Sensors are the same all over. Furke air search radar, Monument targeting radar, Zarya bow sonar, Vinyetka towed sonar, Sigma C3 system. The main gun is also the same 100 mm A-190, and there are also 2 X AK-630 CIWS and 8 x Igla MANPADS

    GarryB
    Colonel
    Colonel

    Posts : 15470
    Points : 16177
    Join date : 2010-03-30
    Location : New Zealand

    Re: Project 2038.0: Steregushchy Corvette

    Post  GarryB on Mon May 30, 2011 4:19 pm

    - Project 20385 (Provorny et al.) - 8 x UKSK ASM on the bow, 8x Paket-NK torpedoes amidships, 16 x Redut AD on the stern.

    +
    The main gun is also the same 100 mm A-190, and there are also 2 X AK-630 CIWS and 8 x Igla MANPADS

    So what we are talking about here is a vessel that is armed with a 100mm main gun with two 30mm gatlings and 8 Manpads, backed up with 16 x 40-120km range SAMs, plus 8 anti torpedo torpedos (PAKET-NK is an anti torpedo weapon), and a primary weapon system of 8 mix and match weapons that can be land attack (Klub subsonic, Brahmos supersonic, Kh-101/102 conventional/nuclear cruise missile) Anti ship (Klub subsonic and supersonic, Brahmos/Yakhont/Oniks supersonic) and anti sub (Klub 40km range with a torpedo payload)... or any combination of those options in the 8 tubes.

    Sounds pretty good to me.

    The real question is are these Redut launchers full size S-400 missile tubes and if they are does that mean they can take the full sized long range missiles?
    Also... more importantly does that mean that each tube can hold 4 of the smaller S-400 missiles with the 40km and 120km ranges.

    If it does then a mix of 250km range full sized missiles with the smaller 40km and 120km range missiles will make it quite a useful vessel.

    With 16 full sized tubes you could go for 64 missiles with 32 of the slightly larger of the small missile types and a range of 120km and 32 of the smallest missile type with a range of 40km which would be plenty most of the time... in terms of numbers and range.

    When operating with larger forces it might reduce the loads to 24 each of the smaller missiles to allow the carriage of 4 of the larger missiles either for 250km range targets for the standard missile or 400km for the long range model when it becomes available.

    Obviously most of the time such a small ship would have no need for such long range missiles but with the Sigma battle management system fitted it will share battle information with other platforms and space assets and could be used to attack a target from an unexpected direction using long range cruise missiles or SAMs.

    Austin
    Colonel
    Colonel

    Posts : 5673
    Points : 6079
    Join date : 2010-05-08
    Age : 40
    Location : India

    Re: Project 2038.0: Steregushchy Corvette

    Post  Austin on Mon May 30, 2011 7:45 pm

    GarryB wrote:The real question is are these Redut launchers full size S-400 missile tubes and if they are does that mean they can take the full sized long range missiles?
    Also... more importantly does that mean that each tube can hold 4 of the smaller S-400 missiles with the 40km and 120km ranges

    I dont think the USUK launchers on these ships can carry the big missile of S-400 , they will only carry the 40 km 9M96E and 120 9M96E1.

    From what I understand the single tube can carry single 9M96E1 or two 9M96E , I will confirm on that.

    Only the frigate Gorshkov 22350 and the new class of destroyer would carry the big missile besides the upgraded cruiser , I have doubts if even the frigate would carry it , the 9M96E1 and E compares well with the Aster 15/30 which will arm their future frigate

    GarryB
    Colonel
    Colonel

    Posts : 15470
    Points : 16177
    Join date : 2010-03-30
    Location : New Zealand

    Re: Project 2038.0: Steregushchy Corvette

    Post  GarryB on Tue May 31, 2011 3:10 am

    There are two vertical launch systems on the ship, one is the USUK launcher for Brahmos and Club etc... in other words anti ship, anti sub and land attack cruise missiles with 8 tubes per system.

    The air defence VLS is the Redut launcher with 16 tubes.

    AFAIK they are standard systems so bigger ships wont have different launchers... they will just have more launchers... so a corvette might have one USUK launcher with 8 tubes, while a modified Kirov might have 50 USUK launchers with 400 missiles.

    I do think you are right that loading 400km range missiles into this sort of ship would be very strange, but it should be possible, though in practise unlikely.

    I also remembered a conversation I had with someone about how as their boats get stealthy they need to add stealthy weapons and sensors and that Kashtan would have to change. I remember talk of how it will be replaced with Duet, which is the stealthy twin 30mm gatling turrets (one gatling gun above the other in one turret) plus the Redut vertical launch system loaded with 9M100 missiles.

    The land based equivelent of Redut is the Vityaz which... depending on who you talk to is a vertical ground launched R-77 missile system with the option to also fire the new IIR guided air to air missile 9M100 that will be used on the PAK FA and on land and at Sea. This new missile has a range of 30-40km in the air launched model but in ground launch and sea launch the range is 10-15km, but it is designed to lock onto the target in flight towards the target, so it is a lock on after launch weapon. ( Obviously needed for PAK FA because inside the weapon bay the missile seeker cannot lock onto the target because it can't see it.)
    This would make it very similar to a Sea Ram/ASRAAM type missile with vertical launch enabling it to hit targets from any direction without the need to turn the launcher to the appropriate direction.

    The other thought it that the Vityaz is based on the standard S-300 sized missile tubes and combines the small missiles of the S-400 (ie the 120km range and 40km range missiles)(4 missiles per tube) and can also launch the 9M100 missile (4 missiles per tube), or can use larger missiles like the large S-400 with the 400km range.

    Obviously the launcher is generic and will be fitted to all Russian vessels so it can fire the entire range of missiles, but in this case it is on an enlarged corvette so it will most likely carry a few 120km range S-400 missiles, and 32 9M100s (equal to one Kashtans worth of missiles) and the rest will be the 40km range S-400 missiles.

    This is the equivelent of a Frigate or destroyers armament in that the 120km range S-400 missiles is the equivelent of the SA-N-6 missiles carried by cruisers like Kirov and Slava, plus the equivelent of the SA-N-7 missiles carried by Destroyers like Sovremmeny class vessels, and still retaining Kashtan level armament for close in protection.

    Any pictures of the real thing to confirm whether it has standard AK-630 turrets or Duet turrets?
    I believe the Duet turrets carry rather more ready to use ammo.

    GarryB
    Colonel
    Colonel

    Posts : 15470
    Points : 16177
    Join date : 2010-03-30
    Location : New Zealand

    Re: Project 2038.0: Steregushchy Corvette

    Post  GarryB on Tue May 31, 2011 3:23 am

    Sigma C3 system

    Note the fact that this Corvette is tied into the Sigma system means long range weapons would be quite useful on certain missions.

    Most of the time a corvette is for coastal patrol and similar duties, but with a 100mm gun it could be used for artillery support of a landing or in a larger conflict it could be used for a range of duties.

    The Sigma system is like AEGIS and combines the air, sea surface, and subsurface picture and then shares that information with other ships equipped with Sigma.

    This means the captain of this Corvette will be seeing the same air/sea/submarine picture the captain of a carrier would be seeing.

    Using up two tubes in the USUK launcher for Kh-101 5,000km range cruise missiles and two tubes in the Redut launcher for 400km range SAMs could result in quite a surprise.

    There is limited chance the corvettes own sensors could detect a target at 400km range or a land target at 5,000km range, but as part of Sigma another platform might collect data on such a threat and provide the corvette with the information it needs to launch a weapon... imagine flying along in an AWACS aircraft and you are scanning the sea surface and all you spot is a small radar contact the size of a small fishing boatbut it is 350km away... 3 minutes later an S-400 comes plunging down from 40,000m at mach 6 nearly vertically... AWACs aircraft don't have a radar that can scan up... and with the AWACS scanning the incoming missile didn't need to use its own radar to find the target...

    Make the best use of what you have... Russia will have a lot more Corvettes than carriers, so by tieing them into the net they get more value if they have a choice of weapons.

    Austin
    Colonel
    Colonel

    Posts : 5673
    Points : 6079
    Join date : 2010-05-08
    Age : 40
    Location : India

    Re: Project 2038.0: Steregushchy Corvette

    Post  Austin on Tue May 31, 2011 5:20 am

    Do you have any information on Sigma C3 system.

    You are right in that USUK and Redut are different launchers , I asked some one how many missile Redut can carry and it was 4 missile per tube , so I am assuming 4 9M96E and 2 long range 9M96E1.

    Since this is a corvette i would say even the 40 Km 9M96E is an over kill , I will not expect it to have 120 km missile , perhaps the 40 Km plus VLS 9M100.

    Corvettes are generally ASW ships with some self defence capability , this ship has the displacement of Corvette but fire power of a top notch frigate.

    It seems information on Redut system is classified so we need to wait this Gorshkov is launched.

    On Vityaz it has the 9M96E and 9M96E1 short/medium range missile with AESA radar , i really need to confirm on the VLS 9m100 missile which has RVV-MD and RVV-SD as its short range missile.

    Austin
    Colonel
    Colonel

    Posts : 5673
    Points : 6079
    Join date : 2010-05-08
    Age : 40
    Location : India

    Re: Project 2038.0: Steregushchy Corvette

    Post  Austin on Tue May 31, 2011 10:34 am

    here is the information I got on Redut system when I asked for

    Redut VLS can fit all versions of 9M96

    - We don't know which missiles Vityaz will carry, but 9M96 has been the most prevalent speculation. 9M100 might be a distant add-on, but there have been no good data on this.

    - 9M100 is not the same as RVV-SD or RVV-MD.

    I think you might be confusing 9M100 with RVV-AE-ZKR, which was an air defense modification of RVV-AE. Vympel's RVV-AE-ZRK was a competitor to Fakel's 9M100 for a new short-range air defense missile, but the situation with both projects seems vague. Both RVV-AE-ZRK and 9M100 seem dead, but RVV-AE-ZRK seems "deader".

    Vympel is part of the Tactical Missiles Corporation (KTRV), while Fakel is part of Almaz-Antey, which is designing Vityaz. I think A-A might have a slight bias toward their "own" missile, rather than their competitor's, but, again, both projects seem to be pretty stale at this point.

    Austin
    Colonel
    Colonel

    Posts : 5673
    Points : 6079
    Join date : 2010-05-08
    Age : 40
    Location : India

    Re: Project 2038.0: Steregushchy Corvette

    Post  Austin on Tue May 31, 2011 2:07 pm

    Got something on Sigma-E the export version , me thinks this is similar to USN Aegis CEC based system

    http://www.concern-agat.com/products/defense-products/66-npo-mars/172-sigma-e

    GarryB
    Colonel
    Colonel

    Posts : 15470
    Points : 16177
    Join date : 2010-03-30
    Location : New Zealand

    Re: Project 2038.0: Steregushchy Corvette

    Post  GarryB on Wed Jun 01, 2011 7:13 am

    You are right in that USUK and Redut are different launchers , I asked some one how many missile Redut can carry and it was 4 missile per tube , so I am assuming 4 9M96E and 2 long range 9M96E1.

    Lets get this straight.

    Think about the S-300 system that has 4 big tubes on each truck.

    Each one of those tubes is the size of the tube of the Redut system, so the vertical launch Redut AD system on this boat has 16 tubes so it is the equivalent of 4 trucks (ie 16 tubes in total).

    The thing is that the Redut AD vertical launch system will be used by all vessels in the Russian navy from corvette right up to Kirov and perhaps carrier, so they are all the same design.

    That makes the system standardised.

    In actual practise however the Kirov is going to have a much more powerful air search radar than any corvette so it will be able to use the 400km range S-400 missiles to best effect. It might even have X band radars to see into space to guide S-500 missiles when they become available to hit ballistic missiles and aerial targets at 600km.

    But to get the benefit of standardisation the launcher fitted to the smallest corvette has to be the same as the launcher fitted to the largest and most capable vessel in the fleet.

    It means parts and training commonality and it means that some companies that make all the different launchers can either focus on one type of launcher or make something else that the navy needs.

    Looking at the new S-400 missiles... specifically the 120km and 40km range missiles when mounted on the trailer for the S-400 they use much narrower tubes so 4 missiles can be fitted into one of the larger full sized tubes.

    It will be the same for the naval system.

    With a single vertical launch system unit with 16 tubes that means you can fit 4 missiles in each tube of the 120km or the 40km missiles. Their launch tubes are the same width, the 120km range missile is just longer than the 40km range missile so if you can get 4 40km range missiles in one tube then you can get 4 120km range missiles in one tube too.

    The standard launch system means if you can use all the missile types then you make the platform much more versatile and can load the weapons mix based on the mission.

    With the Sigma system installed it is comparable to a Yak-130 trainer operating with an AWACs... you can put 400km range R-37M AAM missiles on the Yak-130 trainer because although the Yak can't detect targets that far away the AWACS can and it can provide the Yak with all the data it needs to launch the R-37M at a target 300km away with as good a chance of a kill as if it had been fired by a Flanker or Foxhound.

    The point is that most of its time will be spent doing patrol stuff, in which case 40km range missiles will be good enough. When the 9M100 missile becomes available then a normal armament might consist of 32 x Morfei missiles for close in protection and 32 40km range missiles for self defence.

    If the corvette is operating as part of a screen for a battlegroup however having 120km and even full sized 250km range missiles might become useful, because when the enemy launches 15-20 Harpoons at your little corvette... 20 years ago that was one lost corvette, but with this corvette the battle group will have Ka-31s that can scan down to sea level and see incoming missiles and pass that data to all vessels with Sigma. This means that this little corvette armed with 4 full sized standard S-400 missiles with a range of 250km, which leaves 12 tubes, with 4 missiles per tube which means 48 missile positions left for, say 12 120km range missiles, 18 40km range missiles and 18 Morfei short range missiles. These missiles are active radar homing except for the Morfei which uses IIR seeker technology. All are fire and forget... and that does not even take into account the 100mm an 30mm guns and Iglas... the Igla-S is perfectly capable of taking down a Harpoon with the right cueing... the addition of a proximity fuse on the Igla-S was specifically to make it capable of taking down cruise missiles.

    Since this is a corvette i would say even the 40 Km 9M96E is an over kill , I will not expect it to have 120 km missile , perhaps the 40 Km plus VLS 9M100.

    I totally agree, the 40km range missiles will protect the ship from helicopters which are a serious modern threat to small vessels.

    The 120km range missiles would be useful to protect from a variety of fixed wing aircraft armed with air launched anti ship missiles like Exocet.

    However the ability of the system to carry all the missile types saves money because there is only one SAM launcher that can launch all SAM types except Kashtan and SOSNA in the future Russian navy. Kashtan and the Sosna missile in the cheaper Palma mount will likely be fitted to smaller vessels where stealth is not really an issue.

    It also adds flexibility in that in the future with air support from the carrier a corvette can carry the same long range weapons their heaviest battle cruiser can carry... it just carries them in smaller numbers.

    Corvettes are generally ASW ships with some self defence capability , this ship has the displacement of Corvette but fire power of a top notch frigate.

    The development of universal cruise missile launchers (USUK) and universal SAM launchers (Redut AD) means all their ships from the smallest to the largest will be much more flexible and much less tied to a specific role.

    It means instead of making X number of ASW boats and X number of torpedo boats and X number of fast attack craft with anti ship missiles, they can make X + X + X number of corvettes and arm them for each mission as needed. The greater production runs of one type will improve commonality and reduce costs reduce training issues and lead to a much more efficient navy... especially as this model is repeated with larger vessels, with the larger vessels having larger sensors and more powerful propulsion and larger numbers of the same standard weapon launchers.


    On Vityaz it has the 9M96E and 9M96E1 short/medium range missile with AESA radar , i really need to confirm on the VLS 9m100 missile which has RVV-MD and RVV-SD as its short range missile.

    No, the RVV-MD is the updated digital R-73... perhaps called R-74M but looks externally like an R-73 but with a better seeker and greatly improved electronics, while the RVV-SD is the same update for the R-77 with improved sensor, digital electronics and improved flight forming algorithms to extend range from 80km ideal shot against low manouvering target (ie AWACS or troop transport) to 110km against the same target in the same ideal circumstances... high altitude high speed launch on a closing large RCS low manouverable target.

    The 9M100 is supposed to be the new replacement for the RVV-MD short range IR guided AAM and is supposed to be the Russian equivelent of the ASRAAM with lock on after launch IIR seeker with onboard 3D database of target types so it can recognise its target and select the right one based on information via a datalink from the launch platform.

    It is supposed to be launched from the weapons bay of the PAK-FA in the direction of the target and scan and acquire its target in flight after launch because from inside the weapons bay it can't get a lock on.
    This means this weapon could be a 360 degree off boresight weapon as it can manouver to acquire its target after launch and uses a datalink to ensure no own goals of course.

    This missile is supposed to be an all service missile to be used in the space and air defence forces Vityaz system and the Airforces Vityaz system and of course the navys Redut system as a sort of SEA RAM replacement for the missiles of Kashtan.

    The missiles of Kashtan of course don't need replacing on performance issues, but the Kashtan mount is not stealthy so for new stealthy vessels will use Morfei as a vertical launch Kashtan missile that is stealthy.

    Vympel is part of the Tactical Missiles Corporation (KTRV), while Fakel is part of Almaz-Antey, which is designing Vityaz. I think A-A might have a slight bias toward their "own" missile, rather than their competitor's, but, again, both projects seem to be pretty stale at this point.

    Certainly the first "version" of what we now call Vityaz I read about was an air breathing ramjet powered R-77 on a ground launcher, but Almaz-Antey seem to have trumped that with its two small S-400 missiles. I rather suspect that the Ramjet powered R-77 might survive especially if they can perfect a scramjet engine for it and give it significant range without making it too big based on the success of Meteor it should be interesting.

    The 9M100 has to succeed because R-73 or RVV-MD simply can't be used on the PAK-FA as an internal weapon because both missiles require a lock on a target before they can be launched. Short of slapping an IIR seeker on an R-77 and using its INS and datalink as a simple lock on after launch system there is little real alternative for a short range dogfight missile for the new Russian 5th gen fighter. Would be embarrassing if they can't manage an equivalent to the ASRAAM/AIM-9X/IRIS-T. But at the same time if they do get the 9M100 right and put it in their planes, land based medium SAM, and naval CIWS then they will have achieved something the west always harps on about but never gets right... the F-4 perhaps, but even with missiles the Navys ESSM is based on the older Sparrow rather than the newer Air force AMRAAM.

    Got something on Sigma-E the export version , me thinks this is similar to USN Aegis CEC based system

    Pretty much... though including it down to Corvette level makes it into a net centric system for the Navy. The addition of carriers with aircraft able to greatly extend reach and sight the Russian Navy will actually likely be rather more powerful than it ever was though smaller.

    Austin
    Colonel
    Colonel

    Posts : 5673
    Points : 6079
    Join date : 2010-05-08
    Age : 40
    Location : India

    Re: Project 2038.0: Steregushchy Corvette

    Post  Austin on Wed Jun 01, 2011 8:29 am

    I agree the 20380/81/85 are very capable corvette with the firepower of top NATO frigate , but it is ideal for coastal and brown water and not in openocean , that role will be taken by Frigate 20350/51.

    Sigma-3 is certainly very interesting , it gives ships from Corvette to Aircraft carrier to seamlessly talk and connect to each other and sensor fuse the data to present a single picture , its effective against stealth target or even ships that dont have power radar but powerful weapon that can use data from other ships.

    Its similar to US Navy Co-operative Engagement Capability and part of netcentric system.

    GarryB
    Colonel
    Colonel

    Posts : 15470
    Points : 16177
    Join date : 2010-03-30
    Location : New Zealand

    Re: Project 2038.0: Steregushchy Corvette

    Post  GarryB on Wed Jun 01, 2011 8:47 am

    I agree the 20380/81/85 are very capable corvette with the firepower of top NATO frigate , but it is ideal for coastal and brown water and not in openocean , that role will be taken by Frigate 20350/51.

    In time of war you use what you have.

    99% of the time this will be a coastal corvette doing normal things, but like Georgia showed you don't always have time to move your best equipment to the backwater areas it is needed... if push came to shove this little vessel is quite capable of punching above its weight class.
