"Hermes" multi-purpose guided missile:

GarryB

GarryB: Posts : 38989
Points : 39485
Join date : 2010-03-30
Location : New Zealand

Post n°101

Re: "Hermes" multi-purpose guided missile:

GarryB Thu Feb 17, 2022 8:15 am

And also Pantsir and Pine/SOSNA-R...

"Hermes" multi-purpose guided missile: - Page 5 15991210

Pine is basically the same as Pantsir but smaller and with a lighter booster.

SA-19 as used on Tunguska also has a smaller solid rocket booster but the missile is a similar size to Pantsir.

dino00, magnumcromagnon and Broski like this post

eridan

eridan: Posts : 188
Points : 194
Join date : 2012-12-13

Post n°102

Re: "Hermes" multi-purpose guided missile:

eridan Wed Jul 06, 2022 3:13 pm

So, since Hermes is a non line of sight weapon - what sort of guidance does it use?
It doesn't seem to have a visible seeker...
would that mean that the missile is coupled with a target designator system (either third party one for NLOS use or on a launcher for LOS use)
and if so, does the missile follow a laser pointer or is it command guided?

Regular likes this post

GarryB

GarryB: Posts : 38989
Points : 39485
Join date : 2010-03-30
Location : New Zealand

Post n°103

Re: "Hermes" multi-purpose guided missile:

GarryB Wed Jul 06, 2022 5:22 pm

The current website for KBP is down for maintenance but AFAIK the HERMES is supposed to be a command guided missile much like the SA-19 missile it is based on except because targets on the ground are not line of sight like aerial targets the Hermes is supposed to use a terminal guidance system depending on the version ranging from IIR and radar (MMW) to EO with laser spot detection.

It is intended to hit point targets including moving targets so laser spot homing and IIR seeker as well as MMW radar could be used or combinations... the MMW would be all weather day and night capable, while the IIR would be day night capable too, as would the semi active laser homing.

Their newer missiles seem to combine an optical with laser spot detection capability so the missile can track a target or be directed to a target using a laser target marker.

They don't seem to be in any hurry to reveal what specific guidance it will be using, though interestingly MMW and IIR could also be used against air targets too so it is rather multi functional.

If it does use laser target marker seeking then a drone could be launched to find and mark targets for it.... there is the E90 drone already developed for the Tunguska and Pantsir systems that should have launch compatibility...

Regular likes this post

GarryB

GarryB: Posts : 38989
Points : 39485
Join date : 2010-03-30
Location : New Zealand

Post n°104

Re: "Hermes" multi-purpose guided missile:

GarryB Thu Jul 07, 2022 2:01 pm

If you search for the website as kbptula.ru without the www at the start it shows a login screen and says the site is down for maintenance... so that will be interesting... I wonder what upgrades they are going to make...

PhSt

PhSt: Posts : 1203
Points : 1209
Join date : 2019-04-02
Location : Canada

Post n°105

Re: "Hermes" multi-purpose guided missile:

PhSt Fri Aug 05, 2022 8:15 am

Is Hermes and Izdeliye 305 the same?

ALAMO

ALAMO: Posts : 6705
Points : 6795
Join date : 2014-11-26

Post n°106

Re: "Hermes" multi-purpose guided missile:

ALAMO Fri Aug 05, 2022 1:15 pm

No.

GarryB

GarryB: Posts : 38989
Points : 39485
Join date : 2010-03-30
Location : New Zealand

Post n°107

Re: "Hermes" multi-purpose guided missile:

GarryB Fri Aug 05, 2022 5:48 pm

No.

Hermes is developed from the Pantsir and SA-19 SAMs and is a two stage missile with a large solid rocket booster.

Hermes is tube launched.

This is an archived copy of the site that is currently down for maintenance:

https://web.archive.org/web/20211110211226/http://www.kbptula.ru/en/productions/multi-service-weapon-systems/germes-a

If you click on it on the right hand side below the little photos in the main centre article area the title System Composition there are two links... if you click on them small popup windows will open, the top link being an image of the missile and its launch tube showing it is a two stage missile... the second link shows the system including the launch tubes which are arranged the same way as Vikhr missile launch tubes on a Hokums weapon pylon where 6 missiles are loaded on one pylon with four missiles underneath and two missiles are on top for 6 per pylon.

In comparison the LMURs or object 305 looks like this:

"Hermes" multi-purpose guided missile: - Page 5 38910

And its single launcher looks like this:

"Hermes" multi-purpose guided missile: - Page 5 91610

There is a twin launcher for two missiles on a weapon pylon and there is also a surface launched missile carried by an armoured vehicle...

"Hermes" multi-purpose guided missile: - Page 5 Ewr5e413

"Hermes" multi-purpose guided missile: - Page 5 Objekt13

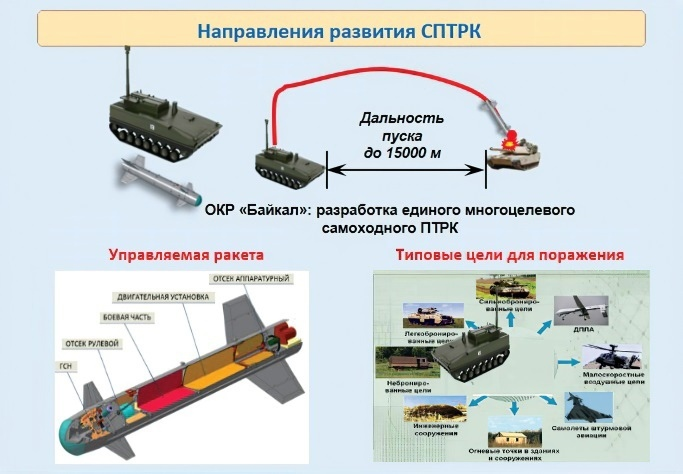

Missile in front of a twin launcher:

"Hermes" multi-purpose guided missile: - Page 5 305_du10

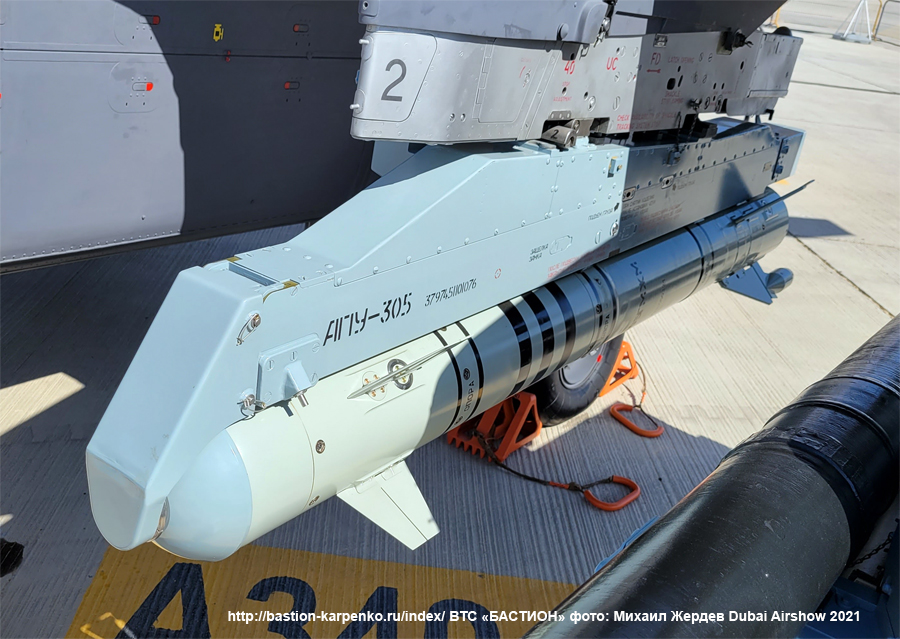

Missile mounted on a single launcher:

"Hermes" multi-purpose guided missile: - Page 5 305_du11

Werewolf, Big_Gazza, GunshipDemocracy and LMFS like this post

GarryB

GarryB: Posts : 38989
Points : 39485
Join date : 2010-03-30
Location : New Zealand

Post n°108

Re: "Hermes" multi-purpose guided missile:

GarryB Fri Aug 05, 2022 7:10 pm

Just noticed...

In the image lower right seems to show the LMUR missile is a fully multipurpose missile for use against Tanks, BMPs, soft vehicles like trucks, bunkers and fortified positions, buildings, fixed wing aircraft, helicopters, and drones...

So it must have some sort of smart fusing to allow it to penetrate heavy armour while still being lethal against a range of target types of varying degrees of hardness or softness...

Kiko

Kiko: Posts : 2839
Points : 2883
Join date : 2020-11-11
Age : 75
Location : Brasilia

Post n°109

Re: "Hermes" multi-purpose guided missile:

Kiko Mon May 22, 2023 5:35 pm

Testing of the new Hermes missile system continues in Russia, 05.22.2023.

KBP: Russia is testing a new Hermes missile system to destroy armored vehicles.

MOSCOW, May 22 - RIA Novosti. Russia continues testing a new multifunctional missile system "Hermes" to destroy armored vehicles, structures and aircraft, RIA Novosti was told in the press service of the KBP (part of the holding "High-precision systems" of the state corporation "Rostec").

"The Hermes complex is being tested. The decision on the delivery will be made based on the test results," the company said.

They added that "work on the modernization of the Hermes complex continues, taking into account changes in the situation and tasks."

The Hermes complex is designed to destroy modern and advanced tanks, armored vehicles, structures, surface targets and low-speed aircraft at a distance of up to 100 kilometers. The basic version of the rocket has a speed of up to 1.3 thousand meters per second and has a high-explosive fragmentation warhead of 28 kilograms.

"Hermes" can be mounted on any vehicle chassis of medium or large tonnage. The missiles of the complex have a high accuracy of destruction. The ammunition flies to the target, first due to navigation signals from the ground, then according to the data of the onboard inertial navigation system. Arriving at the target area, the missile captures it with its own homing head.

https://ria.ru/20230522/rakety-1873306264.html

GarryB, zardof, thegopnik, Hole, Broski and Belisarius like this post

thegopnik

thegopnik: Posts : 1715
Points : 1717
Join date : 2017-09-20

Post n°110

Re: "Hermes" multi-purpose guided missile:

thegopnik Wed May 24, 2023 11:06 am

production of Zircons and Hermes in working conditions with enough numbers is considered to be game changing enough to thwart the idea of getting other parties involved in the Ukraine war. See Patriots getting destroyed by Kinzhals for reference.

sepheronx

sepheronx: Posts : 8532
Points : 8794
Join date : 2009-08-06
Age : 34
Location : Canada

Post n°111

Re: "Hermes" multi-purpose guided missile:

sepheronx Wed May 24, 2023 11:10 am

Hermes seems to have been in development since forever. But I do believe it is what we were seeing used in Ukraine for a bit.

I imagine a lot of work is going into developing sub components since they cannot get what they used to be able to in the past.

thegopnik and limb like this post

thegopnik

thegopnik: Posts : 1715
Points : 1717
Join date : 2017-09-20

Post n°112

Re: "Hermes" multi-purpose guided missile:

thegopnik Wed May 24, 2023 11:17 am

Yes I hope its more of a trying to get enough electronics production problem(that of course can get resolved later) than a development problem since each missile will have a seeker. I am pushing a 10 year timeframe on the klevok-D2

limb

limb: Posts : 1550
Points : 1576
Join date : 2020-09-17

Post n°113

Re: "Hermes" multi-purpose guided missile:

limb Wed May 24, 2023 9:17 pm

sepheronx wrote:Hermes seems to have been in development since forever. But I do believe it is what we were seeing used in Ukraine for a bit.

I imagine a lot of work is going into developing sub components since they cannot get what they used to be able to in the past.

Exactly. Its been in development for 23+ years.

Meanwhile still no truck launched Spike NLOS equivalent. Imagine how many russian lives couldve been saved if the izd.305 was developed and mass produced 5 years earlier on truck mounted launchers, instead of investing millions on a stillborn money sink like hermes.

lyle6

lyle6: Posts : 2190
Points : 2184
Join date : 2020-09-14
Location : Philippines

Post n°114

Re: "Hermes" multi-purpose guided missile:

lyle6 Wed May 24, 2023 9:52 pm

Lancet shits on Spike all day, everyday. Hermes can wait - the West has nothing like it in development anyway.

GunshipDemocracy, Sprut-B, thegopnik, Hole, Broski and Belisarius like this post

Isos

Isos: Posts : 11301
Points : 11271
Join date : 2015-11-07

Post n°115

Re: "Hermes" multi-purpose guided missile:

Isos Wed May 24, 2023 10:38 pm

lyle6 wrote:Lancet shits on Spike all day, everyday. Hermes can wait - the West has nothing like it in development anyway.

Clearly Lancet is the best solution to hunt enemy vehicles. Hermes not needed anymore.

thegopnik

thegopnik: Posts : 1715
Points : 1717
Join date : 2017-09-20

Post n°116

Re: "Hermes" multi-purpose guided missile:

thegopnik Thu May 25, 2023 12:33 am

Drones dominate the battlefield and Russians have showcased helicopters that have radars spotting tanks 70kms away and the newest ones might have longer radar ranges than those. Whats special is that Hermes hits mobile targets even other helicopters from 100kms away. Imagine having atleast 1000 of these missiles already produced+ functional and Poland uses 1000 m1a2s for Ukraine to all get destroyed before even seeing a T-90 or a T-14 in battle. MLRS systems just fire at designated coordinates, Hermes missiles do a little more than that.

sepheronx, GarryB, flamming_python, GunshipDemocracy, Sprut-B, ludovicense and Belisarius like this post

marcellogo

marcellogo: Posts : 638
Points : 644
Join date : 2012-08-02
Age : 55
Location : Italy

Post n°117

Re: "Hermes" multi-purpose guided missile:

marcellogo Thu May 25, 2023 6:39 am

I think that there is space for all of such tactical weaponries.
The idea of abandon one in favor of other is IMHO wrong.
They would be used by different units for different tasks, so that they can operate together instead of being the alterative one to the other..
So as an example the LMUR has given to attack helicopters a weapon that could be used for hitting buildings, bridges, logistical and command points, lancet can instead loiter to keep enemies pinned down, Hermes would be instead the one going fast to overcome enemy air defences that would instead be a problem for the other two categories of weapons.

GarryB, GunshipDemocracy, Sprut-B, Hole, Broski and Belisarius like this post

GarryB

GarryB: Posts : 38989
Points : 39485
Join date : 2010-03-30
Location : New Zealand

Post n°118

Re: "Hermes" multi-purpose guided missile:

GarryB Thu May 25, 2023 10:14 am

Agree with Marcellogo, the Hermes is a mach 3 missile that can really reach out and touch and its 30kg warhead is rather substantial.

From what I have read the Hermes started out as pretty much a two stage missile based on the SA-19 missile the Tunguska uses but with a much bigger solid rocket booster to extend range. These missiles are two stage where the solid rocket booster accelerates the missile rapidly and then falls away so from about 2.5km onwards the missile just coasts to the target in free flight with no propulsion and a warhead and basically command guidance to track the target.

The Hermes was going to add terminal guidance in the form of a seeker, either EO seeker for IIR guided or laser homing (where the target is marked by another platform with a laser), or MMW radar homing, or some combination.

The point is that the missile was either fired directly towards the target by a helicopter out to about 20-25km, so it could use its radar to find and mark targets for MMW radar homing, or another platform could use a laser target marker, or if the target was moving an optical sensor like low light TV or IIR to find the moving target and get a lock for itself.

The ground launched model had a much bigger thicker heavier solid rocket booster and was basically lofted up into the air like a Grad rocket at about 1.3km/s but also had no engine on the second stage so it would basically be lofted like a rocket at the target and then just fall on the target out to about 100km.

What appears to be causing the delay is that they want to make the missile itself heavier and to carry its own propulsion so it can manouver to evade being shot down on its way to its target like US HIMARS rockets are getting shot down in the Ukraine.

A manouvering mach 3 plus guided anti tank anti armour anti structure missile with a 30kg plus warhead that is difficult to shoot down seems a rather useful think on a modern battlefield and something worth the wait.

With IIR guidance you could probably optimise the flight profile and get a top attack weapon that will target turret bustles on tanks and with a 30kg warhead it should be able to penetrate down to the engine and really obliterate those HATO super tanks.... coming down vertically with perhaps a solid rocket booster to get its speed up perhaps an APHE warhead might be a good idea as the roof of most vehicles is less than 200mm and an APHE is always more devastating than other types of penetrating rounds...

Werewolf, Sprut-B, Hole, Broski and Belisarius like this post

TMA1

TMA1: Posts : 1125
Points : 1123
Join date : 2020-11-30

Post n°119

Re: "Hermes" multi-purpose guided missile:

TMA1 Thu May 25, 2023 1:36 pm

With its speed it could be a one stop shop against APS protected systems.

flamming_python

flamming_python: Posts : 8988
Points : 9050
Join date : 2012-01-30

Post n°120

Re: "Hermes" multi-purpose guided missile:

flamming_python Thu May 25, 2023 2:03 pm

Isos wrote:

lyle6 wrote:Lancet shits on Spike all day, everyday. Hermes can wait - the West has nothing like it in development anyway.

Clearly Lancet is the best solution to hunt enemy vehicles. Hermes not needed anymore.

Hermes is far quicker

Lancet is a loitering munition, you can't really launch it against a specific target dozens of km's away and expect it to be in the same place by the time it gets there.

thegopnik likes this post

thegopnik

thegopnik: Posts : 1715
Points : 1717
Join date : 2017-09-20

Post n°121

Re: "Hermes" multi-purpose guided missile:

thegopnik Fri May 26, 2023 8:09 pm

Hermes and Zircon(counting the kholod project as part of it) have been in development since the 90s. Zircon is going to need sophisticated electronics to work because of its plasma sheath and each Hermes missile would need homing capabilities, even the quadpack missiles from pantsir would need some kind of homing at best which requires small electronics. When the full scale PIC production starts in 2024 or any other MMIC production i will assure you the zircon, hermes and quadpack pantisrs will be mass produced. PICs for radars would work amazing in the millimeter wave values than MMICs where Hermes and a quadpack pantsir would have enough accuracy and millimeter wave radar/communication device on the zircon would be undisturbed by the plasma sheath on the Zircon which at best covers low frequencies all the way to X-band.

Its just weird the U.S. or any western country has not proceeded to develop MLRS systems with homing capabilities even without sophisticated engines for maneuvering capabilities while a country no offense to Russia is developing such a system when they are currently behind the west and east in electronics (unless PIC production changes that) and such MLRS systems require an extensive use in electronics which the west portrays not having a production problem with while the Russians have bought electronics from the west and turks and we are still waiting to hear about the MMIC production facilities.

thegopnik

thegopnik: Posts : 1715
Points : 1717
Join date : 2017-09-20

Post n°122

Re: "Hermes" multi-purpose guided missile:

thegopnik Sat May 27, 2023 11:45 pm

Just as a comparison the U.S. uses MLRS but with glide bombs. the GBU has a 240mm-180mm diameter and because of slow speed it would have enough of a time window to identify and hit targets, I believe a few months ago it was promised for Ukraine and probably won't arrive until a year? Russia only has room for 170mm to build a homing sensor for the warhead, still behind the west i think in infrared and MMIC technology while the U.S. has access to Taiwan's chips. And mach 3+ offers a small timeframe window to track and hit targets. I am estimating the production of Hermes will start in 2024-2028.

https://integral-russia.ru/2022/12/07/novyj-zavod-mikroelektrniki-28-nanometrovoj-topologii-stroitsya-v-zelenograde-na-baze-ao-zntts-miet/?ysclid=li66bdgxmf324893339

https://future-tech.ru/2023/01/10/%D0%BF%D0%B5%D1%80%D0%B2%D1%8B%D0%BC%D0%B8-%D0%B2-%D1%80%D0%BE%D1%81%D1%81%D0%B8%D0%B8-%D0%BD%D0%B0%D1%87%D0%B8%D0%BD%D0%B0%D0%B5%D0%BC-%D1%80%D0%B0%D0%B7%D1%80%D0%B0%D0%B1%D0%BE%D1%82%D0%BA%D1%83/?ysclid=li66btofnh500994080

talks of 28nm and a possible 3nm chip production assemblies that they could be on Taiwans level. PICs transfer terabits of information meaning that the hermes homing sensors will have absolutely no problem identifying targets at a far enough range with a small timeframe window using millimeter radars which PICs are far superior in detection and tracking than MMICs. REMEMBER it was only recently that the U.S. created the idea of MLRS with glide bomb homing and despite their own chip capabilities they have not even thought about giving homing sensors to their HIMARS missiles. Reason I say 2024-2028 is we don't know the production capacity of PICs and if aircraft radars, communication devices, etc would be prioritized over PICs for Hermes homing head sensors. To me this is important worth noting here in regard to the possible production of Hermes.

GarryB

GarryB: Posts : 38989
Points : 39485
Join date : 2010-03-30
Location : New Zealand

Post n°123

Re: "Hermes" multi-purpose guided missile:

GarryB Sun May 28, 2023 9:10 am

Why do you think a missile needs a fricken super computer to detect a target on the ground?

Do you understand that the radar seekers of their anti ship missiles can detect ships at sea and identify them by their radar signature... the Granit that rises from the pack and scans the now extended radar horizon and then drops back down and passes on target data to the other missiles in the flight group depending on the ships present in the carrier group was made with 1970s technology... so we are talking 286 processors were not available at that time... even the Motorola 68000 chips weren't available yet either...

Equally you would not use a CPU for processing the video data from an IIR sensor or optical camera sensor, you would use a video card with extra electronics for processing the video image in real time to detect objects and moving parts of the image... much the same way face detection works on the camera on your phone.

The real time processing phones use to put wolf faces on people or to age them or change their features would be used to analyse the shape of the visible objects to find specific things like tanks and vehicles with gun barrels or rockets in tubes or towed artillery guns so the missile itself can recognise what it is seeing and choose targets for itself, but I suspect the new Hermes will likely have a datalink... again something that does not need a fast processing chipset... to allow the operator to select the target.

Information during the engagement will mean the missile will be launched to a specific location to find its target so it wont just be fired blindly and randomly... a drone might even be launched first... the Ka-52 can carry a box on one pylon that holds a half dozen drones that can be flown into dangerous areas to look for targets and suicide into them itself or to mark targets for missiles fired from the launch helicopter or other helicopters operating with it.

psg and Broski like this post

limb

limb: Posts : 1550
Points : 1576
Join date : 2020-09-17

Post n°124

Re: "Hermes" multi-purpose guided missile:

limb Sun May 28, 2023 7:33 pm

lyle6 wrote:Lancet shits on Spike all day, everyday. Hermes can wait - the West has nothing like it in development anyway.

>comparing a loitering munition to a NLOS ATGM

thegopnik

thegopnik: Posts : 1715
Points : 1717
Join date : 2017-09-20

Post n°125

Re: "Hermes" multi-purpose guided missile:

thegopnik Sun May 28, 2023 8:21 pm

GarryB wrote:Why do you think a missile needs a fricken super computer to detect a target on the ground?

Do you understand that the radar seekers of their anti ship missiles can detect ships at sea and identify them by their radar signature... the Granit that rises from the pack and scans the now extended radar horizon and then drops back down and passes on target data to the other missiles in the flight group depending on the ships present in the carrier group was made with 1970s technology... so we are talking 286 processors were not available at that time... even the Motorola 68000 chips weren't available yet either...

Equally you would not use a CPU for processing the video data from an IIR sensor or optical camera sensor, you would use a video card with extra electronics for processing the video image in real time to detect objects and moving parts of the image... much the same way face detection works on the camera on your phone.

The real time processing phones use to put wolf faces on people or to age them or change their features would be used to analyse the shape of the visible objects to find specific things like tanks and vehicles with gun barrels or rockets in tubes or towed artillery guns so the missile itself can recognise what it is seeing and choose targets for itself, but I suspect the new Hermes will likely have a datalink... again something that does not need a fast processing chipset... to allow the operator to select the target.

Information during the engagement will mean the missile will be launched to a specific location to find its target so it wont just be fired blindly and randomly... a drone might even be launched first... the Ka-52 can carry a box on one pylon that holds a half dozen drones that can be flown into dangerous areas to look for targets and suicide into them itself or to mark targets for missiles fired from the launch helicopter or other helicopters operating with it.

I think the Pantsir-SM is already considered operational since December 1, 2022 when I read Pods article on that Pantsir thread. And the Hermes missiles is basically just that but with a slightly bigger sustainer 2nd stage. So if Pantsir-SM is operational than maybe they are lying and mass producing the missiles already because hitting mostly armoured vehicles is an easier task than smaller aerial targets which the pantsir already does. They already have the Klevok-D2 pre-planned to be developed. I guess average MLRS systems dont have rocket engine stirring capabilities which made it pointless for even the U.S. to stick homing sensors into MLRS systems and just use rocket assisted glide bombs instead.

Russia Defence Forum

"Hermes" multi-purpose guided missile:

Re: "Hermes" multi-purpose guided missile:

Re: "Hermes" multi-purpose guided missile:

Re: "Hermes" multi-purpose guided missile:

Re: "Hermes" multi-purpose guided missile:

Re: "Hermes" multi-purpose guided missile:

Re: "Hermes" multi-purpose guided missile:

Re: "Hermes" multi-purpose guided missile:

Re: "Hermes" multi-purpose guided missile:

Re: "Hermes" multi-purpose guided missile:

Re: "Hermes" multi-purpose guided missile:

Re: "Hermes" multi-purpose guided missile:

Re: "Hermes" multi-purpose guided missile:

Re: "Hermes" multi-purpose guided missile:

Re: "Hermes" multi-purpose guided missile:

Re: "Hermes" multi-purpose guided missile:

Re: "Hermes" multi-purpose guided missile:

Re: "Hermes" multi-purpose guided missile:

Re: "Hermes" multi-purpose guided missile:

Re: "Hermes" multi-purpose guided missile:

Re: "Hermes" multi-purpose guided missile:

Re: "Hermes" multi-purpose guided missile:

Re: "Hermes" multi-purpose guided missile:

Re: "Hermes" multi-purpose guided missile:

Re: "Hermes" multi-purpose guided missile:

Re: "Hermes" multi-purpose guided missile:

Re: "Hermes" multi-purpose guided missile:

Similar topics

Similar topics
