    TOR Air Defence system

    avatar
    xeno


    Posts : 271
    Points : 274
    Join date : 2013-02-04

    TOR Air Defence system - Page 6 Empty Re: TOR Air Defence system

    Post  xeno Sat Oct 26, 2013 11:50 pm

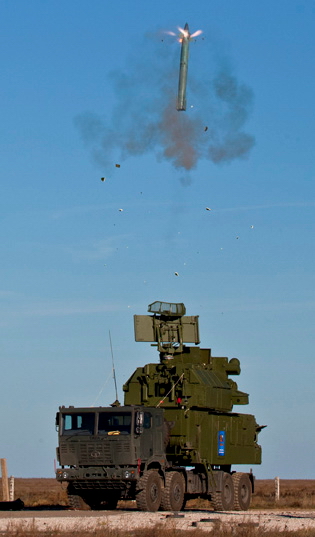

    TOR Air Defence system - Page 6 Tor-m210
    For Indians...
    TR1
    TR1


    Posts : 5435
    Points : 5433
    Join date : 2011-12-07

    TOR Air Defence system - Page 6 Empty Re: TOR Air Defence system

    Post  TR1 Sun Oct 27, 2013 3:26 am

    That mount is an atrocious idea, but whatever the customer wants I guess.
    flamming_python
    flamming_python


    Posts : 9655
    Points : 9713
    Join date : 2012-01-31

    TOR Air Defence system - Page 6 Empty Re: TOR Air Defence system

    Post  flamming_python Sun Oct 27, 2013 6:57 am

    If the suspension is rated for the weight and holds out, together with other parameters within nominal values (height of centre of gravity, etc...); then I don't see why it's an atrocious idea.
    TR1
    TR1


    Posts : 5435
    Points : 5433
    Join date : 2011-12-07

    TOR Air Defence system - Page 6 Empty Re: TOR Air Defence system

    Post  TR1 Sun Oct 27, 2013 8:14 am

    A driver gets careless, and goes slightly too fast around a corner on a road.....and humpty dumpty tips over.

    It is not a "critical" fault, but that center of gravity is high and in service shit happens. I've seen S-400 get stuck in some big potholes, that thing above would tip over in such a scenario.
    GarryB
    GarryB


    Posts : 40699
    Points : 41201
    Join date : 2010-03-30
    Location : New Zealand

    TOR Air Defence system - Page 6 Empty Re: TOR Air Defence system

    Post  GarryB Sun Oct 27, 2013 3:06 pm

    Indeed, but if it never leaves the paved road and is driven sensibly then it will cost a small fraction of what the tracked version costs to operate and maintain.

    In addition to the low cost command guided missiles this system wont be cheap, but over time its very high performance against a range of targets plus the low cost of actually using it means it should be an excellent system.


    Awesome pic BTW... got my vote.  Very Happy
    medo
    medo


    Posts : 4343
    Points : 4423
    Join date : 2010-10-24
    Location : Slovenia

    TOR Air Defence system - Page 6 Empty Re: TOR Air Defence system

    Post  medo Sun Oct 27, 2013 8:04 pm

    xeno wrote:TOR Air Defence system - Page 6 Tor-m210
    For Indians...
    I personally would more like to see this Tor-M2KM on BAZ truck, than on TATA.
    mack8
    mack8


    Posts : 1039
    Points : 1093
    Join date : 2013-08-03

    TOR Air Defence system - Page 6 Empty Re: TOR Air Defence system

    Post  mack8 Mon Oct 28, 2013 3:14 am

    Video of Tor-M2KM in testing:
    https://www.youtube.com/watch?v=EQAmpY7H1-g
    flamming_python
    flamming_python


    Posts : 9655
    Points : 9713
    Join date : 2012-01-31

    TOR Air Defence system - Page 6 Empty Re: TOR Air Defence system

    Post  flamming_python Mon Oct 28, 2013 5:03 am

    TR1 wrote:A driver gets careless, and goes slightly too fast around a corner on a road.....and humpty dumpty tips over.

    It is not a "critical" fault, but that center of gravity is high and in service shit happens. I've seen S-400 get stuck in some big potholes, that thing above would tip over in such a scenario.
    Yeah, looking at it again - it does look more like a bad idea on wheels.
    As GazB says, they just have to make sure to use it carefully.

    Whelp, not Russia's fault/concern in any case.
    GarryB
    GarryB


    Posts : 40699
    Points : 41201
    Join date : 2010-03-30
    Location : New Zealand

    TOR Air Defence system - Page 6 Empty Re: TOR Air Defence system

    Post  GarryB Mon Oct 28, 2013 4:19 pm

    Just looking at the video it looks like a flat bed truck with the TOR system body and turret sitting on top... if the body was integrated into the trailer it could be fitted lower down, but I suspect they want to leave the truck trailer intact so it can be used as a truck too.
    Pretty much you get what you pay for and this will likely be very cheap and in my opinion will be driven to a place like an HQ or ammo dump or airfield and then lifted off the trailer and left there for significant periods of time with the truck able to go elsewhere to do other things.
    Viktor
    Viktor


    Posts : 5796
    Points : 6429
    Join date : 2009-08-26
    Age : 44
    Location : Croatia

    TOR Air Defence system - Page 6 Empty Re: TOR Air Defence system

    Post  Viktor Tue Oct 29, 2013 5:47 pm

    Im wondering by looking at this picture could this mean 16 missiles per vehicle and not 8 as up to now or even if it cant I bet small construction alteration would make this possible.


    TOR Air Defence system - Page 6 VloXONW
    TR1
    TR1


    Posts : 5435
    Points : 5433
    Join date : 2011-12-07

    TOR Air Defence system - Page 6 Empty Re: TOR Air Defence system

    Post  TR1 Wed Oct 30, 2013 2:40 am

    I think the issue is below "turret" space.
    GarryB
    GarryB


    Posts : 40699
    Points : 41201
    Join date : 2010-03-30
    Location : New Zealand

    TOR Air Defence system - Page 6 Empty Re: TOR Air Defence system

    Post  GarryB Wed Oct 30, 2013 5:05 pm

    Im wondering by looking at this picture could this mean 16 missiles per vehicle and not 8 as up to now or even if it cant I bet small construction alteration would make this possible.
    Late model TOR have increased numbers of missiles ready to launch.

    Can't remember off the top of my head whether it was 12 or 16 missiles ready to fire in the new model with presumably 3 or 4 4 tube missile modules per vehicle.
    Viktor
    Viktor


    Posts : 5796
    Points : 6429
    Join date : 2009-08-26
    Age : 44
    Location : Croatia

    TOR Air Defence system - Page 6 Empty Re: TOR Air Defence system

    Post  Viktor Wed Oct 30, 2013 6:48 pm

    Here are few good pictures of the launchers and missile positions. Certain adjustments would need to be done but nothing big.

    TOR Air Defence system - Page 6 7qTLFnP

    TOR Air Defence system - Page 6 MXrIVSM
    TR1
    TR1


    Posts : 5435
    Points : 5433
    Join date : 2011-12-07

    TOR Air Defence system - Page 6 Empty Re: TOR Air Defence system

    Post  TR1 Thu Oct 31, 2013 5:21 pm

    TOR Air Defence system - Page 6 F_0LrRg9C_0L7Quy7RgNGEL3NwZXRzdGVraG5pa2EvenJrLXRvci1tMmttL3pya190b3JfbTJrbV80X25nLmpwZw==
    TOR Air Defence system - Page 6 F_0LrRg9C_0L7Quy7RgNGEL3NwZXRzdGVraG5pa2EvenJrLXRvci1tMmttL3pya190b3JfbTJrbV8zX25nLmpwZw==
    TOR Air Defence system - Page 6 F_d3d3Lmt1cG9sLnJ1L3NwZXRzdGVraG5pa2EvenJrLXRvci1tMmttL3pya190b3JfbTJrbV8xLmpwZw==
    Viktor
    Viktor


    Posts : 5796
    Points : 6429
    Join date : 2009-08-26
    Age : 44
    Location : Croatia

    TOR Air Defence system - Page 6 Empty Re: TOR Air Defence system

    Post  Viktor Thu Oct 31, 2013 9:15 pm

    TR1 can you please check for some interesting news if there are any?

    http://gurkhan.blogspot.com/2013/10/2_31.html  - lots of promo materials on Gur Khan attacks!
    TR1
    TR1


    Posts : 5435
    Points : 5433
    Join date : 2011-12-07

    TOR Air Defence system - Page 6 Empty Re: TOR Air Defence system

    Post  TR1 Fri Nov 01, 2013 3:54 am

    Sure thing Viktor, I will reply in the appropriate threads (he posted lots of stuff from all sectors of defense industry).

    Regarding the Tor-M2MK, I think all the promotion info you have already seen in English, nothing new specifically.
    Viktor
    Viktor


    Posts : 5796
    Points : 6429
    Join date : 2009-08-26
    Age : 44
    Location : Croatia

    TOR Air Defence system - Page 6 Empty Re: TOR Air Defence system

    Post  Viktor Thu Nov 14, 2013 10:34 pm

    Developer: newest rocket for "Tor-M2" direct hit knocks

    1. 9M338 entering service with astonishing accuracy (hit-to-kill)
    2. Future TOR-M2 with 16 9M338 missiles thumbsup

    Interlocutor of the agency also said that the creation of a new missile, which, by its dimensions smaller than predecessors, has increased ammunition "Tor-M2" is two-fold - from eight to 16 units.

    Finally !!! now this will have impact on modern battlefield



    But also this:


    In Russia, created a new complex air defense with a "remarkable accuracy"
    TR1
    TR1


    Posts : 5435
    Points : 5433
    Join date : 2011-12-07

    TOR Air Defence system - Page 6 Empty Re: TOR Air Defence system

    Post  TR1 Thu Nov 14, 2013 10:51 pm

    Looks like you were right Victor, I guess the missile is a bit smaller so with some clever angling they can fit x2 of the missiles...makes sense considering how fast Tor can shoot off 4 rounds.

    Btw from the article:
    "Мы отстрелили пять ракет по очень сложным мишеням (ракета комплекса "Оса" — "Саман"), из которых три были сбиты прямыми попаданиями ракеты в ракету, то есть лоб в лоб. Это отличный результат, потрясающая точность. Это уникально. Остальные цели были также поражены осколочным потоком боевых частей ракет", — сказал Друзин.

    "We shot 5 missiles at difficult targets (from the Osa missile complex- Saman target), of which 3 were hit directly, that is, nose to nose. This is an excellent result, wonderful accuracy. Rest of the targets were also destroyed with the warhead of the missile"

    Article also says the first batch of 40 missiles were made.
    mack8
    mack8


    Posts : 1039
    Points : 1093
    Join date : 2013-08-03

    TOR Air Defence system - Page 6 Empty Re: TOR Air Defence system

    Post  mack8 Fri Nov 15, 2013 3:06 am

    So the 9M338 missiles for the new Tor and the RZV-MD we saw at the last MAKS are one and the same ?

    Also, the news above are they referring to the very system on TATA chassis tested recently in the previous images ) or is it a different system altogether? And considering the changes shouldn't this new Tor be called Tor-M3 or something?

    Thanks.

    (btw, regarding the Tor-M2KM, imo it seems the TATA truck is mostly carrying the system from a A to B, as probably the indians want to used the Tor in mostly fixed positions, rather then fully mobile like other operators, although some sort of mobility is retained by having the system capable for being fired from the truck)
    medo
    medo


    Posts : 4343
    Points : 4423
    Join date : 2010-10-24
    Location : Slovenia

    TOR Air Defence system - Page 6 Empty Re: TOR Air Defence system

    Post  medo Fri Nov 15, 2013 3:32 am

    Excellent, finally will Tor-M2 get its missiles, which were planed for it.
    GarryB
    GarryB


    Posts : 40699
    Points : 41201
    Join date : 2010-03-30
    Location : New Zealand

    TOR Air Defence system - Page 6 Empty Re: TOR Air Defence system

    Post  GarryB Fri Nov 15, 2013 12:12 pm

    This is very good news... the TOR system was not cheap... it has very expensive but also very capable radars and electronics in it so it didn't replace OSA one for one in service.

    With the new missiles improving the performance being able to be fitted to older model vehicles this means they can get better performance as quickly as they can produce the new missiles.

    The test is interesting as it is the equivalent of S-400 shooting down S-300s to be cleared for service... Smile
    Viktor
    Viktor


    Posts : 5796
    Points : 6429
    Join date : 2009-08-26
    Age : 44
    Location : Croatia

    TOR Air Defence system - Page 6 Empty Re: TOR Air Defence system

    Post  Viktor Fri Nov 15, 2013 8:58 pm

    mack8 wrote:So the 9M338 missiles for the new Tor and the RZV-MD we saw at the last MAKS are one and the same ?

    Also, the news above are they referring to the very system on TATA chassis tested recently in the previous images  ) or is it a different system altogether? And considering the changes shouldn't this new Tor be called Tor-M3 or something?

    Thanks.

    (btw, regarding the Tor-M2KM, imo it seems the TATA truck is mostly carrying the system from a A to B, as probably the indians want to used the Tor in mostly fixed positions, rather then fully mobile like other operators, although some sort of mobility is retained by having the system capable for being fired from the truck)
    1) 9M338 missile from MAKS-2013 is new Tor-M2 missile
    2) This is different system - TATA has nothing to do with this (it is only meant for Indian market and uses 9M331M missile most likely although it is TOR-M2)
    3) It is likely it will get new name like TOR-2M but on the same time it is likely that all previous TOR versions will be (or can be) modernized with this new missile
    4) TOR-M and all latter versions can function in fully automatic mode meaning without any human input - so yes TOR on TATA chasis can fire without any problems with or without humans

    Here is a blog input about the subject from SAM "Tor-M2" is finally voiced publicly Vestnik PVO


    Last edited by Viktor on Fri Nov 15, 2013 10:07 pm; edited 1 time in total
    Viktor
    Viktor


    Posts : 5796
    Points : 6429
    Join date : 2009-08-26
    Age : 44
    Location : Croatia

    TOR Air Defence system - Page 6 Empty Re: TOR Air Defence system

    Post  Viktor Fri Nov 15, 2013 9:04 pm

    TR1 wrote:Looks like you were right Victor, I guess the missile is a bit smaller so with some clever angling they can fit x2 of the missiles...makes sense considering how fast Tor can shoot off 4 rounds.

    Btw from the article:
    "Мы отстрелили пять ракет по очень сложным мишеням (ракета комплекса "Оса" — "Саман"), из которых три были сбиты прямыми попаданиями ракеты в ракету, то есть лоб в лоб. Это отличный результат, потрясающая точность. Это уникально. Остальные цели были также поражены осколочным потоком боевых частей ракет", — сказал Друзин.

    "We shot 5 missiles at difficult targets (from the Osa missile complex- Saman target), of which 3 were hit directly, that is, nose to nose. This is an excellent result, wonderful accuracy. Rest of the targets were also destroyed with the warhead of the missile"

    Article also says the first batch of 40 missiles were made.
    It is a logical step forward. When you see it number of guided missiles per fighter has gone up dramatically in comparison with Vietnam era. Because of that Russian view saturation as

    a serious threat and because of it all their SAMs are getting more target guidance channels and more missiles. If you look number of missiles on modern SAM that are replacing old ones

    - > Pancir in comparison to Tunguska
    - > BUK-M3 in comparison to BUK-M2
    - > S-350 in comparison to S-300 and 9M96 class in general

    it was only matter of time before TORs turn would come. I suspect that Morfei will have quite of arsenal per launcher too.
    medo
    medo


    Posts : 4343
    Points : 4423
    Join date : 2010-10-24
    Location : Slovenia

    TOR Air Defence system - Page 6 Empty Re: TOR Air Defence system

    Post  medo Sat Nov 30, 2013 1:23 am

    TOR Air Defence system - Page 6 0_ba2710

    Tors on position around Sochi. With the look at search radar, they are most probably Tor-M2.
    mack8
    mack8


    Posts : 1039
    Points : 1093
    Join date : 2013-08-03

    TOR Air Defence system - Page 6 Empty Re: TOR Air Defence system

    Post  mack8 Tue Dec 10, 2013 7:21 am

    Tor-M2U deployed at Sochi:
    http://bmpd.livejournal.com/684526.html

    TOR Air Defence system - Page 6 1084173_900
    TOR Air Defence system - Page 6 081213_131738_91612_19
    TOR Air Defence system - Page 6 081213_131738_91612_15
