    Re: RPG/RPO Thread

    Post  Mike E on Wed Oct 22, 2014 1:29 am

    Asf wrote:New 'Bur' anti-personel RPGs are reported to be put into mass production. Soon they are supposed to become avaiable for troops.

    Prooflink (rus)

    'Bur' is a new family of anti-personel granade launchers, which seem to be direct replacement of famous 'Shmel' thermobaric grenade. It consist of a pistol grip with sight mount (optic, IR and night sight are available) plus one of grenades in disposable launchers-containers. There are HE-Frag and thermobaric grenade types. Effective firing distance is reported to be whooping 650 m. If it's true 'Bur' can be quite an effective 'small man artillery' piece for squad/platoon levels.
    Sounds like a great munition... It will allow troops to engage from those further distances without something like a mortar or even a RPO-A. - Speaking of which, if this "Bur" can fire thermobaric rounds, it would be in a great position to supplement the RPO-A at closer ranges... I've been thinking about a similar weapon.

    Werewolf
    Colonel
    Colonel

    Posts : 5390
    Points : 5639
    Join date : 2012-10-24

    Re: RPG/RPO Thread

    Post  Werewolf on Wed Oct 22, 2014 1:46 am

    The concept and the lighter weight should result in lower cost per piece giving it great potential like RPG-7 to produce in such masses that it would or could sufficiently arm majority of deployed troops and granting them a great firepower with such a weapon.

    I just can't stop grinning when thinking about such awesome weaponary.

    Zivo
    Colonel
    Colonel

    Posts : 1504
    Points : 1540
    Join date : 2012-04-13
    Location : U.S.A.

    Re: RPG/RPO Thread

    Post  Zivo on Wed Oct 22, 2014 5:46 am

    This is an interesting weapon, I'd like to see a video of it being fired and reloaded. The entire grip+sights detach from the tube, I want to see how this process is preformed.

    psg
    Private
    Private

    Posts : 21
    Points : 26
    Join date : 2011-02-19
    Location : united kingdom

    Re: RPG/RPO Thread

    Post  psg on Wed Oct 22, 2014 10:55 am

    Zivo wrote:This is an interesting weapon, I'd like to see a video of it being fired and reloaded. The entire grip+sights detach from the tube, I want to see how this process is preformed.

    Hope this helps. Smile


    http://www.youtube.com/watch?v=Aha7bdtMSRA

    Kyo
    Lieutenant
    Lieutenant

    Posts : 514
    Points : 563
    Join date : 2014-11-03
    Age : 67
    Location : Brasilia

    Re: RPG/RPO Thread

    Post  Kyo on Tue Feb 24, 2015 6:53 pm

    Russian maritime grenade launcher goes into mass production

    George1
    Colonel
    Colonel

    Posts : 9422
    Points : 9914
    Join date : 2011-12-22
    Location : Greece

    Re: RPG/RPO Thread

    Post  George1 on Sat May 23, 2015 2:32 am

    An old photo with all of types



    From down to top:
    RPG-18 Mukha
    RPG-26 Aglen'
    RPG-27 Tavolga
    RPG-29 Vampire

    RPO-A Shmel in the corner

    I wonder if anyone have info about which types are mostly used from Russian army

    cracker
    Senior Sergeant
    Senior Sergeant

    Posts : 232
    Points : 273
    Join date : 2014-09-04

    Re: RPG/RPO Thread

    Post  cracker on Sat May 23, 2015 3:00 am

    George1 wrote:

    I wonder if anyone have info about which types are mostly used from Russian army

    The RPG-26 by far, and the RPG-7V2 of course.

    Top range penetration of those: 200m and 440mm for RPG-26, 150m and 750mm for RPG-7 (or 500m and 400mm for lighter round, 300m and 550mm for standard round)

    I am pretty sure that ATGMs are far more common than RPG-27/28/29.

    George1
    Colonel
    Colonel

    Posts : 9422
    Points : 9914
    Join date : 2011-12-22
    Location : Greece

    Re: RPG/RPO Thread

    Post  George1 on Sat May 23, 2015 3:14 am

    One shot launchers:
    RPG-18, RPG-22, RPG-26, RPG-27, RPG-28, RPG-30


    Reusable launchers:
    RPG-7, RPG-16, RPG-29, RPG-32


    max steel
    Colonel
    Colonel

    Posts : 2980
    Points : 3014
    Join date : 2015-02-12
    Location : South Pole

    Re: RPG/RPO Thread

    Post  max steel on Thu Sep 03, 2015 5:23 pm

    Russia Unveils ‘Abrams Killer’ Rocket




    THE RPG, OR rocket-propelled grenade, has long been popular among insurgents, giving them a cheap anti-armor weapon that requires little training. The latest version is the RPG-30. And it allegedly can take out today’s toughest tanks. Recently shown on Russian television, the RPG-30 has already been described as an "Abrams Killer."

    The RPG-30 is a new twist on counter-counter-measures. Back in the 1980’s, a new type of armor was introduced to defeat shaped-charge warheads. Reactive armor consists of explosive tiles; when struck by a projectile, they detonate — disrupting the armor-piercing jet produced by a shaped charge. The response to this was the tandem warhead, with a precursor charge that sets off the reactive armor tile followed by a main charge that does the damage.

    Armor designers are now moving a step ahead to from reactive armor to active defenses, with systems like the Russian Arena, the much-hyped Israeli Trophy, and the forthcoming U.S. FCLAS. These detect an incoming round and launch a projectile to meet it, destroying or disrupting the threat by impact or blast. (Dense inert metal explosives, which spray out micro-shrapnel, are particularly suitable for this; they have a very limited radius of destruction and will not harm friendly troops nearby.)

    The RPG-30 has 105mm tandem warhead reckoned to be capable of penetrating over 650mm of steel armor behind reactive armor. But its special feature is a second tube, firing a smaller-caliber decoy rocket a fraction of a second ahead of the real one. The idea is that active protection systems will engage the decoy, but will not be able to engage a second threat immediately afterwards.

    TASS quotes an un-named expert (in Russian — I used Babelfish to translate) as saying that existing active protection systems can only engage a second target after a minimum of 0.2 seconds.

    Russia

    Rpg30_2The RPG-30 is made by Bazalt, who have not updated their website with details of the new rocket yet; then again, their News section only goes up to 2007. Whatever else it is, the RPG-30 does not look like it is designed to be an Abrams killer. The Abrams does not rely on either reactive armor or an active protection system. It just has an advanced version of traditional tank armor which incorporates sheets of high-density depleted uranium among other components.

    In any case, there have already been cases of both U.S. Abrams and British Challenger II tanks being penetrated by the RPG-29, which also has a caliber of 105mm. It is not possible to armor a vehicle with more than 600mm of armor from every possible angle, and every tank will have some weak spots. However, the small warhead of an
    RPG only punches a small hole and does relatively little damage beyond that; many vehicles have had multiple penetrating RPG hits and suffered only minor crew injuries.

    What is interesting is that the Russians have pushed so far ahead with a weapon to tackle a threat which doesn’t even exist yet. One of the big selling points of the new multi-billion-dollar Future Combat System family of vehicles is that active technology will give 30-ton vehicles the same level of protection as
    60-ton heavy armor like the Abrams. But if active protection can really be faked out by the RPG-30 and its successors, then the designers might have to do some re-thinking. Given the amount of pressure already being brought to bear on the FCS in these cash-strapped times, this might be significant.



    Abrams killer, no; FCS killer, well….


    http://www.wired.com/2008/11/russia-unveils/


    magnumcromagnon
    Colonel
    Colonel

    Posts : 4467
    Points : 4658
    Join date : 2013-12-05
    Location : Pindos ave., Pindosville, Pindosylvania, Pindostan

    Russia Unveils ‘Abrams Killer’ Rocket

    Post  magnumcromagnon on Fri Sep 04, 2015 1:36 am

    max steel wrote:  Russia Unveils ‘Abrams Killer’ Rocket




    THE RPG, OR rocket-propelled grenade, has long been popular among insurgents, giving them a cheap anti-armor weapon that requires little training. The latest version is the RPG-30. And it allegedly can take out today’s toughest tanks. Recently shown on Russian television, the RPG-30 has already been described as an "Abrams Killer."

    The RPG-30 is a new twist on counter-counter-measures. Back in the 1980’s, a new type of armor was introduced to defeat shaped-charge warheads. Reactive armor consists of explosive tiles; when struck by a projectile, they detonate — disrupting the armor-piercing jet produced by a shaped charge. The response to this was the tandem warhead, with a precursor charge that sets off the reactive armor tile followed by a main charge that does the damage.

    Armor designers are now moving a step ahead to from reactive armor to active defenses, with systems like the Russian Arena, the much-hyped Israeli Trophy, and the forthcoming U.S. FCLAS. These detect an incoming round and launch a projectile to meet it, destroying or disrupting the threat by impact or blast. (Dense inert metal explosives, which spray out micro-shrapnel, are particularly suitable for this; they have a very limited radius of destruction and will not harm friendly troops nearby.)

    The RPG-30 has 105mm tandem warhead reckoned to be capable of penetrating over 650mm of steel armor behind reactive armor. But its special feature is a second tube, firing a smaller-caliber decoy rocket a fraction of a second ahead of the real one. The idea is that active protection systems will engage the decoy, but will not be able to engage a second threat immediately afterwards.

    TASS quotes an un-named expert (in Russian — I used Babelfish to translate) as saying that existing active protection systems can only engage a second target after a minimum of 0.2 seconds.

    Russia

    Rpg30_2The RPG-30 is made by Bazalt, who have not updated their website with details of the new rocket yet; then again, their News section only goes up to 2007. Whatever else it is, the RPG-30 does not look like it is designed to be an Abrams killer. The Abrams does not rely on either reactive armor or an active protection system. It just has an advanced version of traditional tank armor which incorporates sheets of high-density depleted uranium among other components.

    In any case, there have already been cases of both U.S. Abrams and British Challenger II tanks being penetrated by the RPG-29, which also has a caliber of 105mm. It is not possible to armor a vehicle with more than 600mm of armor from every possible angle, and every tank will have some weak spots. However, the small warhead of an
    RPG only punches a small hole and does relatively little damage beyond that; many vehicles have had multiple penetrating RPG hits and suffered only minor crew injuries.

    What is interesting is that the Russians have pushed so far ahead with a weapon to tackle a threat which doesn’t even exist yet. One of the big selling points of the new multi-billion-dollar Future Combat System family of vehicles is that active technology will give 30-ton vehicles the same level of protection as
    60-ton heavy armor like the Abrams. But if active protection can really be faked out by the RPG-30 and its successors, then the designers might have to do some re-thinking. Given the amount of pressure already being brought to bear on the FCS in these cash-strapped times, this might be significant.



    Abrams killer, no; FCS killer, well….


    http://www.wired.com/2008/11/russia-unveils/


    Soviet-era anti-tank weapons were already more than capable of destroying Abrams MBT's lol....

    George1
    Colonel
    Colonel

    Posts : 9422
    Points : 9914
    Join date : 2011-12-22
    Location : Greece

    Re: RPG/RPO Thread

    Post  George1 on Fri Sep 11, 2015 2:12 pm

    Russian Army receives cutting-edge antitank rocket launchers — manufacturer

    The advanced RPG-30 antitank rocket launchers were designed for punching through any active protection systems mounted on armored vehicles

    NIZHNY TAGIL, September 11. /TASS/. The Russian army is receiving advanced RPG-30 antitank rocket launchers, NPO Bazalt Director General Vladimir Porkhachyov told TASS at the Russia Arms Expo 2015 (RAE 2015) international arms show on Friday. "The RPG-30 has entered service and is being fielded with the Army," he said.

    According to the director general, the latest rocket launcher is second to none in the world, because it is designed for punching through any active protection systems mounted on armored vehicles to enhance their survivability.

    Porkhachyov commented that all active protection systems shared the same philosophy, i.e. radar acquisition of an incoming antitank missile and its elimination at a short or long range with warheads, fragments and high-explosive effect. Those systems have common drawbacks, however, i.e. long reaction time. This was taken into consideration by the developer of the RPG-30.

    "The novelty of the Russian rocket launcher is that two rockets are fired at the target at the same time. One is a so-called ‘agent provocateur’ 42 mm in caliber, followed a bit later by a primary 105-mm tandem warhead rocket," he said.

    The first rocket trips the target vehicle’s active protection system that kicks in to eliminate it, while the second rocket with the post-explosive reactive armor penetration capability exceeding 600 mm slips past the defenses and hits the target. The rocket launcher has a range of 300 m.

    According to Porkhachyov, potential buyers have been very keen on the RPG-30. "At RAE 2015, our stand was visited by Saudis who were very interested in the weapon," he said.



    _________________
    "There's no smoke without fire.", Georgy Zhukov


    KoTeMoRe
    Colonel
    Colonel

    Posts : 3545
    Points : 3580
    Join date : 2015-04-21
    Location : Krankhaus Central.

    Re: RPG/RPO Thread

    Post  KoTeMoRe on Fri Sep 11, 2015 4:57 pm

    George1 wrote:Russian Army receives cutting-edge antitank rocket launchers — manufacturer

    The advanced RPG-30 antitank rocket launchers were designed for punching through any active protection systems mounted on armored vehicles

    NIZHNY TAGIL, September 11. /TASS/. The Russian army is receiving advanced RPG-30 antitank rocket launchers, NPO Bazalt Director General Vladimir Porkhachyov told TASS at the Russia Arms Expo 2015 (RAE 2015) international arms show on Friday. "The RPG-30 has entered service and is being fielded with the Army," he said.

    According to the director general, the latest rocket launcher is second to none in the world, because it is designed for punching through any active protection systems mounted on armored vehicles to enhance their survivability.

    Porkhachyov commented that all active protection systems shared the same philosophy, i.e. radar acquisition of an incoming antitank missile and its elimination at a short or long range with warheads, fragments and high-explosive effect. Those systems have common drawbacks, however, i.e. long reaction time. This was taken into consideration by the developer of the RPG-30.

    "The novelty of the Russian rocket launcher is that two rockets are fired at the target at the same time. One is a so-called ‘agent provocateur’ 42 mm in caliber, followed a bit later by a primary 105-mm tandem warhead rocket," he said.

    The first rocket trips the target vehicle’s active protection system that kicks in to eliminate it, while the second rocket with the post-explosive reactive armor penetration capability exceeding 600 mm slips past the defenses and hits the target. The rocket launcher has a range of 300 m.

    According to Porkhachyov, potential buyers have been very keen on the RPG-30. "At RAE 2015, our stand was visited by Saudis who were very interested in the weapon," he said.


    Expect testing in Ukraine.

    PapaDragon
    Colonel
    Colonel

    Posts : 3658
    Points : 3770
    Join date : 2015-04-26
    Location : Fort Evil, Serbia

    Re: RPG/RPO Thread

    Post  PapaDragon on Fri Sep 11, 2015 5:51 pm

    KoTeMoRe wrote:
    George1 wrote:Russian Army receives cutting-edge antitank rocket launchers — manufacturer

    The advanced RPG-30 antitank rocket launchers were designed for punching through any active protection systems mounted on armored vehicles
    ....................................-30.jpg[/img]

    Expect testing in Ukraine.

    Given what ukrops use this would be total overkill... Twisted Evil

    Werewolf
    Colonel
    Colonel

    Posts : 5390
    Points : 5639
    Join date : 2012-10-24

    Re: RPG/RPO Thread

    Post  Werewolf on Fri Sep 11, 2015 6:15 pm

    KoTeMoRe wrote:
    George1 wrote:Russian Army receives cutting-edge antitank rocket launchers — manufacturer

    The advanced RPG-30 antitank rocket launchers were designed for punching through any active protection systems mounted on armored vehicles

    NIZHNY TAGIL, September 11. /TASS/. The Russian army is receiving advanced RPG-30 antitank rocket launchers, NPO Bazalt Director General Vladimir Porkhachyov told TASS at the Russia Arms Expo 2015 (RAE 2015) international arms show on Friday. "The RPG-30 has entered service and is being fielded with the Army," he said.

    According to the director general, the latest rocket launcher is second to none in the world, because it is designed for punching through any active protection systems mounted on armored vehicles to enhance their survivability.

    Porkhachyov commented that all active protection systems shared the same philosophy, i.e. radar acquisition of an incoming antitank missile and its elimination at a short or long range with warheads, fragments and high-explosive effect. Those systems have common drawbacks, however, i.e. long reaction time. This was taken into consideration by the developer of the RPG-30.

    "The novelty of the Russian rocket launcher is that two rockets are fired at the target at the same time. One is a so-called ‘agent provocateur’ 42 mm in caliber, followed a bit later by a primary 105-mm tandem warhead rocket," he said.

    The first rocket trips the target vehicle’s active protection system that kicks in to eliminate it, while the second rocket with the post-explosive reactive armor penetration capability exceeding 600 mm slips past the defenses and hits the target. The rocket launcher has a range of 300 m.

    According to Porkhachyov, potential buyers have been very keen on the RPG-30. "At RAE 2015, our stand was visited by Saudis who were very interested in the weapon," he said.


    Expect testing in Ukraine.
    Test on what?

    Better to supply RPG-30 to Hezbolla and test it on Merkawa Trophy systems.

    cracker
    Senior Sergeant
    Senior Sergeant

    Posts : 232
    Points : 273
    Join date : 2014-09-04

    Re: RPG/RPO Thread

    Post  cracker on Sat Sep 12, 2015 6:59 pm

    105mm OKFOL filled usual warhead of the 1980s, as used on RPG-7 or RPG-27.... Nothing fancy here.

    RPG-28 is much better to kill a tank.

    George1
    Colonel
    Colonel

    Posts : 9422
    Points : 9914
    Join date : 2011-12-22
    Location : Greece

    Re: RPG/RPO Thread

    Post  George1 on Fri Sep 18, 2015 2:16 pm

    America’s Worst Nightmare: Russia Unveils ‘Merciless’ Anti-Tank Grenade

    Even though the RPG-30 "Kryuk" anti-tank grenade launcher took a back seat to the formidable Armata tank at this year’s Russia Arms Expo, specialist interest in this deadly weapon was nonetheless just as great.

    The RPG-30 is a man-portable, disposable anti-tank rocket launcher with a single shot capacity. It was designed to challenge reactive armor and active protection systems on tanks.

    The RPG-30 cleared its testing program and entered service in 2012–2013 and was immediately put on the Pentagon’s list of “asymmetrical threats to the US armed forces.”

    The RPG-30 is not sold abroad yet and will not be any time soon, even though it enjoyed a great deal of interest from China, India, Lebanon, Cuba and the CIS countries.

    And also from the US, Canada, Germany, France and Italy whose representatives were trying hard to learn the secrets of “merciless Russian grenade.”

    The RPG’s main round, the PG-30, is a 105-mm tandem-shaped charge with a range of 200 meters and a stated penetration capability in excess of 600 mm of rolled homogeneous armor.

    Reactive armor, including explosive reactive armor, can be defeated with multiple hits into the same place, such as by tandem-charge weapons, which fire two or more shaped charges in rapid succession.

    In addition to the main round in its main tube, the RPG-30 also features a smaller diameter precursor round in a side tube.

    The precursor round is fired shortly before the main round and acts as a decoy, tricking the target's active protection into engaging it.

    The APS is not ready to engage again until 0.2–0.4 seconds later, allowing the main round time to hit the target.

    The 105mm PG-30 grenade is almost identical to the one used by the RPG-29 “Vampir” launcher, which made easy work of Israel’s Merkava tanks in Lebanon and the US M1A2 Abramses and British Challengers in Iraq.

    The RPG-30 is smaller than its RPG-29 predecessor being just over a meter long compared with the cumbersome 2 meter Vampir.

    In the Russian armed forces the RPG-30 is used alongside older RPG-22 and RG-26 versions which are very effective against trucks and light-armored AFVs.

    The RPG-30 was designed with more serious targets in mind though as it can knock out heavy tanks, even those protected by modern reactive armor.

    Read more: http://sputniknews.com/russia/20150918/1027179302/russia-grenade-launcher.html#ixzz3m5kSohLl


    _________________
    "There's no smoke without fire.", Georgy Zhukov


    Militarov
    Colonel
    Colonel

    Posts : 4794
    Points : 4841
    Join date : 2015-09-02
    Location : Serbia

    Re: RPG/RPO Thread

    Post  Militarov on Sat May 14, 2016 12:01 am

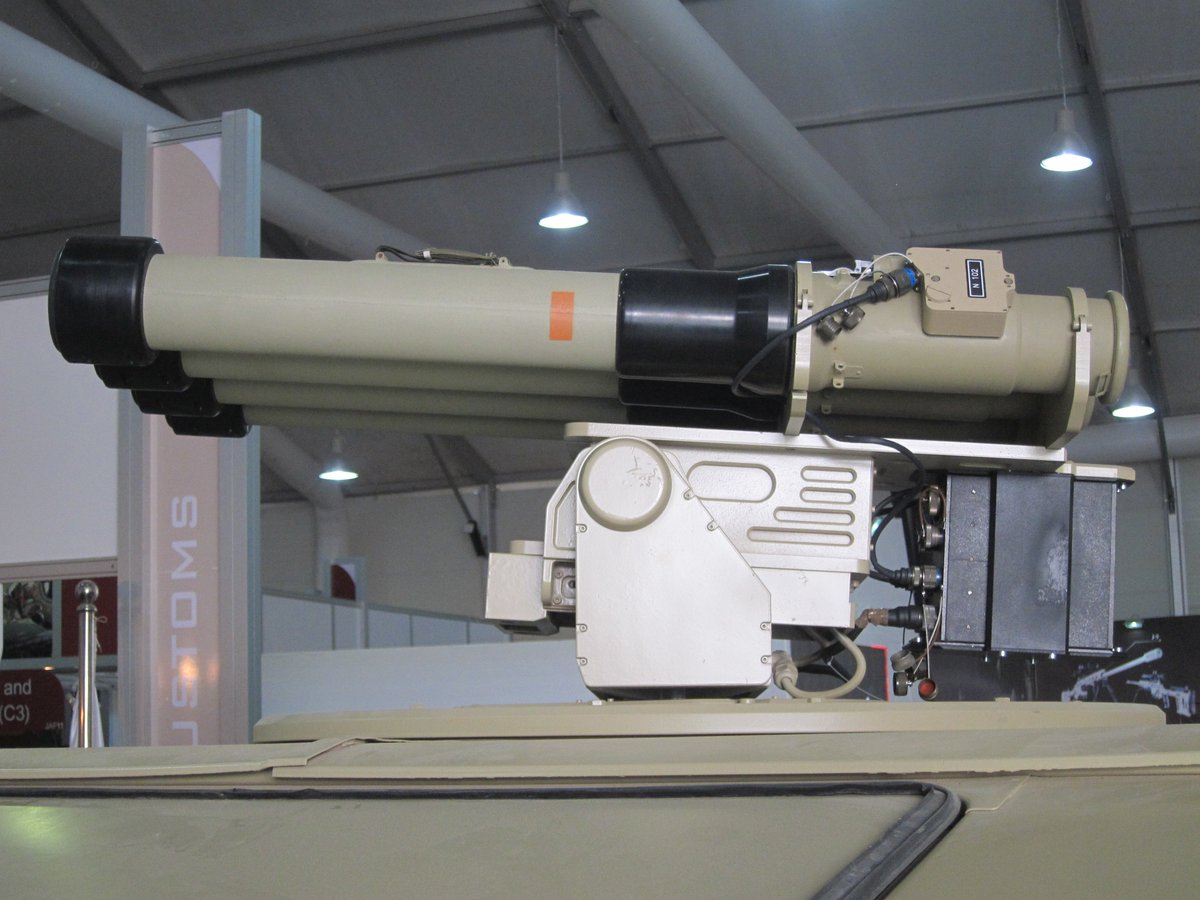

    New Jordanian RPG-32 launch module for wheeled platforms, allegedly developed jointly with Belarus.

    George1
    Colonel
    Colonel

    Posts : 9422
    Points : 9914
    Join date : 2011-12-22
    Location : Greece

    Re: RPG/RPO Thread

    Post  George1 on Mon Jun 27, 2016 10:31 am

    Pocket Rocket: Russia Gets State-of-the-Art, Super-Small Grenade Launcher

    The Bur, the world's most compact multi-shot grenade launcher, has been put into service with Russia's anti-terror units, according to the Russian newspaper Izvestia.

    Russia's anti-terror units have received the most compact multi-shot grenade launcher in the world, RIA Novosti quoted the newspaper Izvestia as saying.

    The Bur's is just 74.2 centimeters long, the height of an average kitchen table. It weighs just 3.5 kilograms (7 pounds, 11.46 ounces).

    For comparison's sake, the weight of the most famous Soviet-developed rocker launcher, the RPG-7, is about 7 kilograms.

    http://sputniknews.com/russia/20160627/1041997397/russia-grenade-launcher-service.html


    _________________
    "There's no smoke without fire.", Georgy Zhukov


    GarryB
    Colonel
    Colonel

    Posts : 15439
    Points : 16146
    Join date : 2010-03-30
    Location : New Zealand

    Re: RPG/RPO Thread

    Post  GarryB on Mon Jun 27, 2016 12:35 pm

    From down to top:
    RPG-18 Mukha
    RPG-26 Aglen'
    RPG-27 Tavolga
    RPG-29 Vampire
    RPO-A Shmel in the corner

    I wonder if anyone have info about which types are mostly used from Russian army

    Sorry, only just noticed your question.

    RPG-18 was widely deployed in the 80s and like the very similar western 66mm LAW it was used against anything and everything like bunkers and enemy positions.

    The RPG-22 and RPG-26 were widely deployed being light and relatively capable weapons with reasonable range... their heavier rockets being more capable against armour or enemy positions than the lighter RPG-18.

    Each infantry unit will have at least an RPG-7 equipped soldier, but with several disposable launchers within the unit too.

    RPGs are very widely deployed amongst all units including point blank protection for ATGM teams.

    Upgrades of the older systems include the RPG-29 that replaces the RPG-7 with better range, though it is larger and heavier, while the disposable RPG-27 and RPG-28 are enormous and heavy but also very powerful disposable weapons.

    There is however a lot of overlap in performance and systems.... for the RPG-29 there is an anti personel thermobaric round in 105mm calibre and a 105mm HEAT model... the RPG-27 fires the HEAT rocket in 105mm calibre with similar performance in a disposable weapon and the RShG-1 fires the thermobaric 105mm round in a disposable model, so the options for mobile units allow the fire power of the RPG-29 in shorter range (there are 105mm calibre warheads in HEAT and HE for the RPG-7 but with just a 40mm rocket motor because the RPG-7 has a 40mm rocket tube) or as disposable weapons in the RPG-27 and RShG-1.

    Note the RPG-7 has a 125mm calibre warhead of even better performance but each launcher is about 12kgs.

    These weapons are carried by normal infantry units, while specialised engineer units have RPO-A, MRO-A, LRO-A and now RPO-M launchers (the latter is called Bur)

    Of course that does not include the navy launchers... DP-61 single barrel 55mm grenade launcher and new DP-64 double barrel 45mm grenade launchers.


    _________________
    “The West won the world not by the superiority of its ideas or values or religion […] but rather by its superiority in applying organized violence. Westerners often forget this fact; non-Westerners never do.”

    ― Samuel P. Huntington, The Clash of Civilizations and the Remaking of World Order

    Sponsored content

    Re: RPG/RPO Thread

    Post  Sponsored content Today at 7:02 pm


      Current date/time is Fri Dec 02, 2016 7:02 pm
