    Re: Tu-22M3: News

    Post  TR1 on Fri Jul 04, 2014 10:14 am

    Austin wrote:
    TR1 wrote:Guessing it has a higher flight profile?

    Curious what the approach speed is.

    Its got High Altitude Cruise and Dive Approach towards target , during Dive the speed goes greater than Mach 4.

    But the approach speed (terminal phase) is sub Mach 2 IIRC?

    Austin
    Colonel
    Colonel

    Posts : 5665
    Points : 6071
    Join date : 2010-05-08
    Age : 40
    Location : India

    Re: Tu-22M3: News

    Post  Austin on Fri Jul 04, 2014 10:31 am

    TR1 wrote:
    Austin wrote:
    TR1 wrote:Guessing it has a higher flight profile?

    Curious what the approach speed is.

    Its got High Altitude Cruise and Dive Approach towards target , during Dive the speed goes greater than Mach 4.

    But the approach speed (terminal phase) is sub Mach 2 IIRC?
     No its Mach 4 , How can approach speed be lower in dive trajectory ?

    Since they are liquid fuel engine their thrust can be throttled so it uses max thrust to gain altitude , throttles it during cruise and again goes for max thrust during dive.

    Thats the advantage of using liquid fuel engine

    Austin
    Colonel
    Colonel

    Posts : 5665
    Points : 6071
    Join date : 2010-05-08
    Age : 40
    Location : India

    Re: Tu-22M3: News

    Post  Austin on Fri Jul 04, 2014 10:32 am

    Details on Tu-22M3M Upgrade

    Combat Aircraft Monthly July /Piotr Butowski ,snippets of the upgrade from the article "Backfire To The Future" Piotr Butowski

    Tu-22M3M-1
    Tu-22M3M-2
    Tu-22M3M-3
    Tu-22M3M-4

    TR1
    Colonel
    Colonel

    Posts : 5840
    Points : 5892
    Join date : 2011-12-06

    Re: Tu-22M3: News

    Post  TR1 on Fri Jul 04, 2014 10:45 am

    Austin wrote:
     No its Mach 4 , How can approach speed be lower in dive trajectory ?

    Since they are liquid fuel engine their thrust can be throttled so it uses max thrust to gain altitude , throttles it during cruise and again goes for max thrust during dive.

    Thats the advantage of using liquid fuel engine

    Air resistance + drag, and no sustainer engine (@ approach).

    Kh-22's top speed was @ extreme high alt.
    http://militaryrussia.ru/blog/topic-139.html
    During the dive speed is around Mach 2 at low lvl.

    Austin
    Colonel
    Colonel

    Posts : 5665
    Points : 6071
    Join date : 2010-05-08
    Age : 40
    Location : India

    Re: Tu-22M3: News

    Post  Austin on Fri Jul 04, 2014 11:49 am

    TR1 wrote:
    Air resistance + drag, and no sustainer engine (@ approach).

    Kh-22's top speed was @ extreme high alt.
    http://militaryrussia.ru/blog/topic-139.html
    During the dive speed is around Mach 2 at low lvl.

    Piotr mentions Mach 4 dive in the same article posting snippets

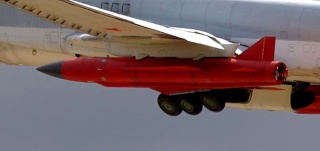

    The biggest stick


    The Tu-22M does not exist without its
    dedicated Kh-22 (AS-4 ‘Kitchen’) missile;
    the aircraft is only a means of delivering
    the weapon closer to its target. The
    Kh-22 (izdeliye D2) was made by the
    MKB Raduga design facility at Dubna
    near Moscow, originally a branch of the
    Mikoyan design bureau.

    A delta-wing missile made of welded
    titanium and steel alloys, the Kh-22 is
    powered by a twin-chamber liquid-fuel
    R201-300 rocket. After launch from high
    altitude at supersonic speed, the missile
    accelerates to Mach 3 and a height of 22-
    23km (72,178-75,459ft). When approaching
    its target, it dives at an angle of around 30°,
    accelerating to a terminal speed of Mach
    4.15.


    The Kh-22N (niskovysotnaya, lowaltitude)
    version introduced together with
    the Tu-22M3 may also be launched from
    a height as low as 1,000m (3,281ft); in this
    case, the missile flies to the target using a
    low-level profile.

    Two types of guidance may be fitted to
    the Kh-22N. The anti-ship Kh-22N version
    has an active radar seeker, while the airto-
    ground Kh-22NA (A for avtonomnaya,
    autonomous) navigates using a Doppler radar
    and is designed for destroying stationary
    area targets such as airfields, harbors or
    industrial facilities.

    Since the aircraft was designed for the
    requirements of the Cold War, the missile’s
    main warhead type is a nuclear charge. For
    the ‘autonomous’ version with reduced
    homing accuracy, the nuclear charge is the
    sole type of warhead available. The more
    accurate anti-ship missile can alternatively
    be fitted with a 1,984lb (900kg) cumulative/

    GarryB
    Colonel
    Colonel

    Posts : 15465
    Points : 16172
    Join date : 2010-03-30
    Location : New Zealand

    Re: Tu-22M3: News

    Post  GarryB on Fri Jul 04, 2014 11:56 am

    Its got High Altitude Cruise and Dive Approach towards target , during Dive the speed goes greater than Mach 4.

    Actually the Kh-32 cruises at high altitude at mach 4.5 and dives on target at a similar speed at a rather steeper angle than 30 degrees.

    The speed is known in the west because there is a drone version of the missile that can be used for high altitude research and was offered for export during the 1990s.


    _________________
    “The West won the world not by the superiority of its ideas or values or religion […] but rather by its superiority in applying organized violence. Westerners often forget this fact; non-Westerners never do.”

    ― Samuel P. Huntington, The Clash of Civilizations and the Remaking of World Order

    Viktor
    Colonel
    Colonel

    Posts : 5629
    Points : 6282
    Join date : 2009-08-25
    Age : 36
    Location : Croatia

    Re: Tu-22M3: News

    Post  Viktor on Fri Jul 04, 2014 10:51 pm

    WoW  thumbsup

    Kazan aircraft plant started modernizing supersonic long-range bombers Tu-22M3

    Nice

    Compared to the basic machine updated plane got more modern avionics, including the fire control system, ensure precision-guided munitions with laser, infrared and TV guided, new avionics and weapons.

    But this is brutal

    The main weapon modernizrovannogo Tu-22M3 will be a cruise missile X-32 at a speed of more than 4,000 kilometers per hour and a range of up to 1,000 kilometers. opportunity to upgrade Tu-22M3 will effectively use this plane to hit targets throughout Eurasia and the surrounding seas.

    and than this

    At the same time the car will receive great ability to engage ground targets, including point and moving.

    and the most important

    Modernization entire fleet of Tu-22M3 should be completed at the beginning of the 2020s.

    George1
    Colonel
    Colonel

    Posts : 9424
    Points : 9916
    Join date : 2011-12-22
    Location : Greece

    Re: Tu-22M3: News

    Post  George1 on Tue Jul 15, 2014 9:53 pm

    Tupolev Company starts upgrade of Tu-22M3 bombers

    The first upgraded Tu-22M3 supersonic long-range bomber will perform its maiden flight in 2017, BUSINESS Online reports.

    «This year we will start developing documentation and manufacturing the first prototypes. Speaking of our plans, the jet should perform its maiden flight in 2017 and after that its state testing will be started», — Deputy Technical Director of Tupolev’s Kazan-based engineering center, Andrey Levenets, said.

    He explained that two prototypes are being prepared for the testing in order to speed up the process; the total number of jets to be upgraded will be determined later, Interfax-AVN reports.

    «Some vehicles are being upgraded in the network of the first stage of the modernization program, thus, by the time documentation development for the next stage is complete, we will be delivering the upgraded aircraft fitted with the latest equipment manufactured at the present time», — he said.

    He added that implementation of the program’s final stage will help improve the bomber’s combat efficiency, in particular, reduce the crew’s workload, assure more convenient display of flight information, increase the aircraft systems’ level of automation and reliability.

    Tu-22M3 is the long-range bomber designed to destroy optically visible and radar contrast targets, isolated, area-type, ground, sea, moving and fixed targets. The jet is capable of using supersonic guided missiles and non-nuclear/nuclear aerial bombs. It is being operated by the units of Russian long-range aviation and Russian navy. Its maximum takeoff weight is 124 tons; maximum payload – 24 tons. The jet’s maximum speed is 2000 km/h. The vehicle’s crew comprises 4 persons. The weapons are carried inside the jet’s airframe and on two wing stations. The jet is able to carry 10 guided air-to-surface, anti-ship (air-to-ship) and air-to-radar cruise missiles, bombs and aerial mines. The jet was developed by Tupolev design bureau. It is powered by two NK-25 turbofan engines having a takeoff thrust of 25000 kg.

    George1
    Colonel
    Colonel

    Posts : 9424
    Points : 9916
    Join date : 2011-12-22
    Location : Greece

    Re: Tu-22M3: News

    Post  George1 on Sat Sep 06, 2014 12:17 am

    Can anyone who knows russian to tell if in this video on Kazan plant they work on Tu-22M3 modernization?? thanks!!


    Cyberspec
    Colonel
    Colonel

    Posts : 1946
    Points : 2117
    Join date : 2011-08-08
    Location : Terra Australis

    Re: Tu-22M3: News

    Post  Cyberspec on Sat Sep 06, 2014 6:50 am

    George1 wrote:Can anyone who knows russian to tell if in this video on Kazan plant they work on Tu-22M3 modernization?? thanks!!

    Yes, although they don't go into details.

    They're just saying the aircraft are refurbished. Old internal components are replaced with modern ones. The main improvements are enhanced navigational capabilities, improved application of weapons and capability to employ new weapons systems

    George1
    Colonel
    Colonel

    Posts : 9424
    Points : 9916
    Join date : 2011-12-22
    Location : Greece

    Re: Tu-22M3: News

    Post  George1 on Thu Sep 11, 2014 1:49 am

    i think also this thread's title should change to "Tu-22M3: news" or sth like that

    Mike E
    Colonel
    Colonel

    Posts : 2789
    Points : 2853
    Join date : 2014-06-19
    Location : Bay Area, CA

    Re: Tu-22M3: News

    Post  Mike E on Thu Sep 11, 2014 1:50 am

    George1 wrote:i think also this thread's title should change to "Tu-22M3: news" or sth like that
    Agreed once again...

    George1
    Colonel
    Colonel

    Posts : 9424
    Points : 9916
    Join date : 2011-12-22
    Location : Greece

    Re: Tu-22M3: News

    Post  George1 on Thu Sep 11, 2014 7:59 am

    Mike E wrote:
    George1 wrote:i think also this thread's title should change to "Tu-22M3: news" or sth like that
    Agreed once again...

    because the title is like it says the Tu-22m3 fate is in doubt..

    Mike E
    Colonel
    Colonel

    Posts : 2789
    Points : 2853
    Join date : 2014-06-19
    Location : Bay Area, CA

    Re: Tu-22M3: News

    Post  Mike E on Thu Sep 11, 2014 9:24 pm

    George1 wrote:
    Mike E wrote:
    George1 wrote:i think also this thread's title should change to "Tu-22M3: news" or sth like that
    Agreed once again...

    because the title is like it says the Tu-22m3 fate is in doubt..

    Yep, the other thread already had its title changed, this one should as well.

    George1
    Colonel
    Colonel

    Posts : 9424
    Points : 9916
    Join date : 2011-12-22
    Location : Greece

    Re: Tu-22M3: News

    Post  George1 on Fri Sep 12, 2014 12:10 am

    Mike E wrote:
    George1 wrote:
    Mike E wrote:
    George1 wrote:i think also this thread's title should change to "Tu-22M3: news" or sth like that
    Agreed once again...

    because the title is like it says the Tu-22m3 fate is in doubt..

    Yep, the other thread already had its title changed, this one should as well.

    i hope Garry listen to us Smile

    GarryB
    Colonel
    Colonel

    Posts : 15465
    Points : 16172
    Join date : 2010-03-30
    Location : New Zealand

    Re: Tu-22M3: News

    Post  GarryB on Fri Sep 12, 2014 11:12 am

    Mike E wrote:
    George1 wrote:
    Mike E wrote:
    George1 wrote:i think also this thread's title should change to "Tu-22M3: news" or sth like that
    Agreed once again...

    because the title is like it says the Tu-22m3 fate is in doubt..

    Yep, the other thread already had its title changed, this one should as well.

    I listen... Smile

    remember I live on the other side of the planet to you guys so when I am at work or online you guys are probably sleeping... I have to sleep too sometimes... Smile

    GarryB


    _________________
    “The West won the world not by the superiority of its ideas or values or religion […] but rather by its superiority in applying organized violence. Westerners often forget this fact; non-Westerners never do.”

    ― Samuel P. Huntington, The Clash of Civilizations and the Remaking of World Order

    George1
    Colonel
    Colonel

    Posts : 9424
    Points : 9916
    Join date : 2011-12-22
    Location : Greece

    Re: Tu-22M3: News

    Post  George1 on Fri Sep 12, 2014 2:00 pm

    GarryB wrote:
    Mike E wrote:
    George1 wrote:
    Mike E wrote:
    George1 wrote:i think also this thread's title should change to "Tu-22M3: news" or sth like that
    Agreed once again...

    because the title is like it says the Tu-22m3 fate is in doubt..

    Yep, the other thread already had its title changed, this one should as well.

    I listen... Smile

    remember I live on the other side of the planet to you guys so when I am at work or online you guys are probably sleeping... I have to sleep too sometimes... Smile

    GarryB

    Thanks you are great!!

    Mike E
    Colonel
    Colonel

    Posts : 2789
    Points : 2853
    Join date : 2014-06-19
    Location : Bay Area, CA

    Re: Tu-22M3: News

    Post  Mike E on Sat Sep 13, 2014 1:04 am

    GarryB wrote:
    Mike E wrote:
    George1 wrote:
    Mike E wrote:
    George1 wrote:i think also this thread's title should change to "Tu-22M3: news" or sth like that
    Agreed once again...

    because the title is like it says the Tu-22m3 fate is in doubt..

    Yep, the other thread already had its title changed, this one should as well.

    I listen... Smile

    remember I live on the other side of the planet to you guys so when I am at work or online you guys are probably sleeping... I have to sleep too sometimes... Smile

    GarryB
    I don't doubt it!

    You don't have to stress about it, we really aren't in a hurry.

    Viktor
    Colonel
    Colonel

    Posts : 5629
    Points : 6282
    Join date : 2009-08-25
    Age : 36
    Location : Croatia

    Re: Tu-22M3: News

    Post  Viktor on Mon Oct 13, 2014 9:22 pm

    Another modernized thumbsup

    CAPO BBC Russia once Tu-22M3 bomber after repair

    George1
    Colonel
    Colonel

    Posts : 9424
    Points : 9916
    Join date : 2011-12-22
    Location : Greece

    Re: Tu-22M3: News

    Post  George1 on Wed Oct 29, 2014 9:35 am

    October 28, 2014. Channel "5 TV". Russia, Kazan. Strategic updating.


    George1
    Colonel
    Colonel

    Posts : 9424
    Points : 9916
    Join date : 2011-12-22
    Location : Greece

    Re: Tu-22M3: News

    Post  George1 on Sun Mar 01, 2015 4:31 pm

    Tu-22M3M Bomber Drops Bombs over Ryazan


    Cyberspec
    Colonel
    Colonel

    Posts : 1946
    Points : 2117
    Join date : 2011-08-08
    Location : Terra Australis

    Re: Tu-22M3: News

    Post  Cyberspec on Fri Mar 06, 2015 6:51 am

    It's a standard Tu-22M3 in the video. The reporter is saying they're slated for upgrade into M3M

    Some nice pics...




    Stealthflanker
    Major
    Major

    Posts : 808
    Points : 894
    Join date : 2009-08-04
    Age : 28
    Location : Indonesia

    Re: Tu-22M3: News

    Post  Stealthflanker on Fri Mar 06, 2015 5:11 pm

    Anything on PNA-D Attack radar ? Like say..upgrade or new attack radar for the bomber ?

    George1
    Colonel
    Colonel

    Posts : 9424
    Points : 9916
    Join date : 2011-12-22
    Location : Greece

    Re: Tu-22M3: News

    Post  George1 on Tue Mar 17, 2015 10:16 pm

    Russian strategic Tu-22M3 (Backfire) strike bombers have been deployed to the Crimean Peninsula to hold snap combat readiness drills, a source in the Russian Defense Ministry said Tuesday.

    Read more: http://sputniknews.com/military/20150317/1019595277.html#ixzz3UgD1FurH

    Cyberspec
    Colonel
    Colonel

    Posts : 1946
    Points : 2117
    Join date : 2011-08-08
    Location : Terra Australis

    Re: Tu-22M3: News

    Post  Cyberspec on Wed Mar 18, 2015 12:43 am

    9 x Tu-22M3 undergoing upgrade
    http://warfiles.ru/show-83372-srazu-devyat-tu-22-vstali-na-modernizaciyu-v-kazani.html

    Stealthflanker wrote:Anything on PNA-D Attack radar ? Like say..upgrade or new attack radar for the bomber ?

    According to the link I posted, the upgrade includes new radar. Not sure if that's correct though....I thought the radar was part of the second stage of modernisation Question

    Sponsored content

    Re: Tu-22M3: News

    Post  Sponsored content Today at 11:33 am


      Current date/time is Mon Dec 05, 2016 11:33 am
