    Re: Russian VSHORADS Thread

    Post  Viktor on Sun Jun 09, 2013 10:52 am

    Great this will be great SA-13 replacement. Excellent find TR1.
    avatar
    Cyberspec

    Posts : 1938
    Points : 2103
    Join date : 2011-08-08
    Location : Terra Australis

    Re: Russian VSHORADS Thread

    Post  Cyberspec on Sun Jun 09, 2013 12:03 pm

    Zivo wrote:What's their reasoning behind developing both Boomerang, and the Kamaz 63969?

    They seem very similar. I doubt the Kamaz is amphibious, but what advantage does it have over Boomerang that warrants its service?

    The Kamaz should be a MRAP type vehicle

    Viktor wrote:Great this will be great SA-13 replacement. Excellent find TR1.

    Should be popular with Strela-10 (SA-13) users assuming it's reasonably priced. I wonder if the Rus. Army would be interested considering they use large number of Strela-10's
    avatar
    Viktor

    Posts : 5672
    Points : 6321
    Join date : 2009-08-25
    Age : 36
    Location : Croatia

    Re: Russian VSHORADS Thread

    Post  Viktor on Sun Jun 09, 2013 2:57 pm

    Cyberspec wrote:Should be popular with Strela-10 (SA-13) users assuming it's reasonably priced. I wonder if the Rus. Army would be interested considering they use large number of Strela-10's

    This system is good for winged missiles, helicopters, attack planes and protection of command posts and radar.

    Fighter planes on the other hand can easily overfly it.

    It has its purpose and should be rather cheap in comparison. Many armies all over the world will find it useful and in need of such

    system. System is highly mobile and can be connected to AD network so it can receive info about the targets well in advance and

    command post like PPRU-M1-2 will distribute the targets between the SAMs.



    avatar
    GarryB

    Posts : 16324
    Points : 16955
    Join date : 2010-03-30
    Location : New Zealand

    VSHORAD SAMs

    Post  GarryB on Tue Jun 11, 2013 11:50 am

    Should be popular with Strela-10 (SA-13) users assuming it's reasonably priced. I wonder if the Rus. Army would be interested considering they use large number of Strela-10's

    In many ways the Sosna-R is the land based version of Palma and is designed as the low cost version of Kashtan-M or Pantsir-S1.

    In the Army it would operate in the SAM missile platoons to compliment the gun/SAM platoons armed currently with Tunguska-M1.

    I believe Sosna-R is the export name for the system and the domestic name is Baikanuk or something similar and it is intended as a very low cost replacement for SA-13 that will operate with Pantsir-S1.

    In those roles both systems would be very capable with the Baikanuk being cheap to buy and operate while the Pantsir-S1 is cheap to operate but also very capable.. Pantsir-S1 can engage the high flyers but the very high flying targets would be dealt with at a higher level by BUK and Vityaz.


    Ceramic applique armor obviously not yet installed, but good photo showing hull.

    New ceramic tigr?


    _________________
    “The West won the world not by the superiority of its ideas or values or religion […] but rather by its superiority in applying organized violence. Westerners often forget this fact; non-Westerners never do.”

    ― Samuel P. Huntington, The Clash of Civilizations and the Remaking of World Order
    avatar
    medo

    Posts : 3194
    Points : 3284
    Join date : 2010-10-24
    Location : Slovenia

    Re: Russian VSHORADS Thread

    Post  medo on Fri Jul 19, 2013 4:34 pm

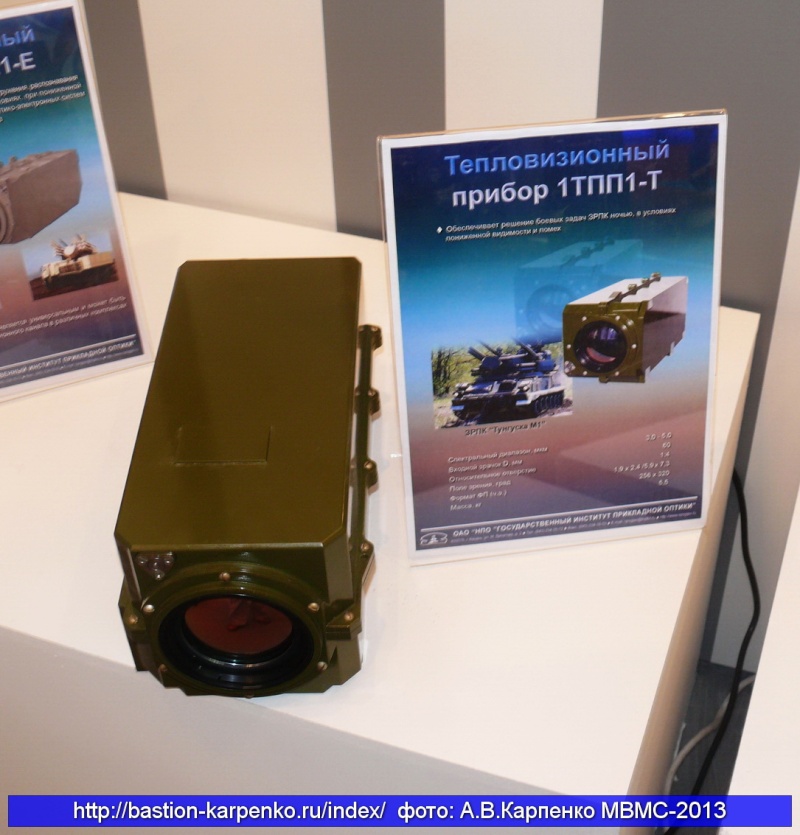

    I find this picture interesting. It seems there is special thermal imager created to be installed in Tunguska complex. Considering, that army units receive modernized Tunguskas, maybe they also have those TI installed inside their optical sight, what will enable their missile and gun work in optical mode day and night and in all weather. I wonder, if they also modify tracking radar to guide missile in radar mode. Krizanthema could track target and guide missile all in one radar antenna, so maybe Tunguska could use the same princip.
    avatar
    GarryB

    Posts : 16324
    Points : 16955
    Join date : 2010-03-30
    Location : New Zealand

    Re: Russian VSHORADS Thread

    Post  GarryB on Sat Jul 20, 2013 12:28 pm

    AFAIK both the Tunguska and the Krisantema use command guided missiles with the command guidance coming from the tracking radar that tracks both the target and the outgoing missile and sends course corrections to the outgoing missile to ensure a hit.

    If that is the case then the addition of a thermal imager should allow the vehicle to engage targets without the use of either the search or tracking function with the thermal sight with autotracker following the target and the outgoing missile with course guidance commands being transmitted by the tracking radar that is not tracking either the missile or the target and therefore not making itself much of an ARM target.

    Note the Krisantema also has a back up laser beam riding guidance option.


    _________________
    “The West won the world not by the superiority of its ideas or values or religion […] but rather by its superiority in applying organized violence. Westerners often forget this fact; non-Westerners never do.”

    ― Samuel P. Huntington, The Clash of Civilizations and the Remaking of World Order
    avatar
    medo

    Posts : 3194
    Points : 3284
    Join date : 2010-10-24
    Location : Slovenia

    Re: Russian VSHORADS Thread

    Post  medo on Sun Jul 21, 2013 11:30 am

    Original Tunguska could use missiles only in optical mode using its tracking radar for radio missile guidance, while target was tracked with optical sight. Radar mode was used only for guns. Usual systems of that times use two antennas, one for tracking radar and second for radio missile guidance. Krizanthema was first to have one antenna for both operation to ensure ACLOS in radar mode. Of course, Krizanthema also have optical mode with laser guidance, but it is independent and could ensure the guidance of second missile simultaneously. I think same capabilities have Arbalet radar in Ka-52.

    Installing TI in Tunguska's optical sight will give to missile capabilities 24 hours operational capabilities and to guns full capabilities in both modes. Modernization of radar to ACLOS mode for missiles will give Tunguska full capabilities with both missiles and guns.
    avatar
    GarryB

    Posts : 16324
    Points : 16955
    Join date : 2010-03-30
    Location : New Zealand

    Re: Russian VSHORADS Thread

    Post  GarryB on Sun Jul 21, 2013 12:27 pm

    Early model (8km range missiles) Tunguska used optical guidance for missiles, but the naval Kashtan version was changed to allow radar guidance with tracking of both missiles and target using the tracking radar with the tracking radar sending course commands to the outgoing missile.

    This change was applied to both Pantsir (which didn't enter service) with 12km range missiles and the Tunguska-M1 which entered service in 2004 with 10km range missiles AFAIK.

    Current Pantsir-S1 uses tracking radar to track missiles and targets and send guidance commands.


    _________________
    “The West won the world not by the superiority of its ideas or values or religion […] but rather by its superiority in applying organized violence. Westerners often forget this fact; non-Westerners never do.”

    ― Samuel P. Huntington, The Clash of Civilizations and the Remaking of World Order
    avatar
    medo

    Posts : 3194
    Points : 3284
    Join date : 2010-10-24
    Location : Slovenia

    Re: Russian VSHORADS Thread

    Post  medo on Sun Jul 21, 2013 9:43 pm

    Tunguska and Krizanthema don't have PESA radars, but mechanical ones. Pantsir also have additional guidance channel antenna on its tracking radar.
    avatar
    GarryB

    Posts : 16324
    Points : 16955
    Join date : 2010-03-30
    Location : New Zealand

    Re: Russian VSHORADS Thread

    Post  GarryB on Mon Jul 22, 2013 12:32 pm

    Tunguska and Krizanthema don't have PESA radars, but mechanical ones.

    They don't need PESA or AESA radars to track targets... especially two targets they are trying to merge by controlling the flightpath of one.

    Pantsir also have additional guidance channel antenna on its tracking radar.

    Indeed they do and that is how they use their tracking radar to communicate with the missile... Smile


    _________________
    “The West won the world not by the superiority of its ideas or values or religion […] but rather by its superiority in applying organized violence. Westerners often forget this fact; non-Westerners never do.”

    ― Samuel P. Huntington, The Clash of Civilizations and the Remaking of World Order
    avatar
    medo

    Posts : 3194
    Points : 3284
    Join date : 2010-10-24
    Location : Slovenia

    Re: Russian VSHORADS Thread

    Post  medo on Mon Jul 22, 2013 8:02 pm

    Indeed they do and that is how they use their tracking radar to communicate with the missile... Smile

    Tunguskas tracking radar track target when it use its guns or send guiding signals to missile. In usual SAM complex tracking radar does three functions, track target, track missile and sent guiding commands to missile. Usually they have additional antenny for missile guiding channel. Krizanthema use only one radar antenna for all three functions in ACLOS mode. Krizanthema radar is the way for Tunguska tracking radar modernization.
    avatar
    GarryB

    Posts : 16324
    Points : 16955
    Join date : 2010-03-30
    Location : New Zealand

    Re: Russian VSHORADS Thread

    Post  GarryB on Tue Jul 23, 2013 1:58 pm

    Krizanthema radar is the way for Tunguska tracking radar modernization.

    Pantsir-S1 is the way for Tunguska modernisation...


    _________________
    “The West won the world not by the superiority of its ideas or values or religion […] but rather by its superiority in applying organized violence. Westerners often forget this fact; non-Westerners never do.”

    ― Samuel P. Huntington, The Clash of Civilizations and the Remaking of World Order
    avatar
    medo

    Posts : 3194
    Points : 3284
    Join date : 2010-10-24
    Location : Slovenia

    Re: Russian VSHORADS Thread

    Post  medo on Wed Jul 24, 2013 10:07 am

    GarryB wrote:
    Krizanthema radar is the way for Tunguska tracking radar modernization.

    Pantsir-S1 is the way for Tunguska modernisation...

    Of course it is. But to keep modernization cheap and keep its original radar, they could just modernize its computers in the way of Krizanthema radar. It's better to build new Pantsirs than place Pantsir's radars on used Tunguskas.
    avatar
    GarryB

    Posts : 16324
    Points : 16955
    Join date : 2010-03-30
    Location : New Zealand

    Re: Russian VSHORADS Thread

    Post  GarryB on Wed Jul 24, 2013 11:17 am

    Tunguskas tracking radar track target when it use its guns or send guiding signals to missile. In usual SAM complex tracking radar does three functions, track target, track missile and sent guiding commands to missile.

    [quote] Usually they have additional antenny for missile guiding channel.[quote]

    They usually use a different antenna for sending missile guidance commands because of the frequencies involved and the requirements of the signal.

    The current radars associated with Tunguska and Pantsir-S1 are optimised for very specific goals... high accuracy, good range in a range of weather conditions, and capability against very small targets at extended ranges. You can see the size of the antenna on the vehicles for good resolution returns. the simple cheap datalink antenna are in comparison direct links optimised for high speed.

    Krizanthema use only one radar antenna for all three functions in ACLOS mode. Krizanthema radar is the way for Tunguska tracking radar modernization.

    Krisantema is more like a fighter aircrafts radar that will scan specific areas looking for targets and then engage them... often in groups at a time. It will likely move from cover to cover and generally try to move to positions where it can see targets from max range... in many ways it is more of a long range anti tank gun platform than an air defence system... of course if they can upgrade its performance the way the Kornet-EM has been upgraded then it might become quite a formidible anti armour and anti aircraft system with cheap command guided/laser beam riding missiles.


    _________________
    “The West won the world not by the superiority of its ideas or values or religion […] but rather by its superiority in applying organized violence. Westerners often forget this fact; non-Westerners never do.”

    ― Samuel P. Huntington, The Clash of Civilizations and the Remaking of World Order
    avatar
    medo

    Posts : 3194
    Points : 3284
    Join date : 2010-10-24
    Location : Slovenia

    Re: Russian VSHORADS Thread

    Post  medo on Tue Jun 17, 2014 9:29 pm

    http://www.sdelanounas.ru/blogs/50560/

    In September - October this year, tests of new Sosna-M will be finished. Considering, that Palash-Palma is already operational, I don't see much problems for Russian MoD to accept Sosna-M as replacement for Strela-10.
    avatar
    Morpheus Eberhardt

    Posts : 1945
    Points : 2066
    Join date : 2013-05-20

    Re: Russian VSHORADS Thread

    Post  Morpheus Eberhardt on Tue Jun 17, 2014 10:45 pm

    medo wrote:http://www.sdelanounas.ru/blogs/50560/

    In September - October this year, tests of new Sosna-M will be finished. Considering, that Palash-Palma is already operational, I don't see much problems for Russian MoD to accept Sosna-M as replacement for Strela-10.

    The fact that some versions of Sosna can be mounted on an MT-LB based chasis doesn't mean that it is a Strela-10 follow-on. There are other systems developed as Strela-10 follow-ons.

    I think Sosna is primarily a ZU-23-2 follow-on.

    Actually, the picture in the article most probably shows an export version of Sosna. There are two reasons for that conclusion: the MT-LB based chassis and the radio control for the first stage of the missile. It seems that the non-export versions of Sosna don't need the radio control for the first stage control.

    Asf

    Posts : 478
    Points : 501
    Join date : 2014-03-27

    Re: Russian VSHORADS Thread

    Post  Asf on Wed Jun 18, 2014 1:40 pm

    The fact that some versions of Sosna can be mounted on an MT-LB based chasis doesn't mean that it is a Strela-10 follow-on.
    It has similar tactical purpose
    I think Sosna is primarily a ZU-23-2 follow-on.
    What do you mean? ZU-23-2 is a towed AA autocannon
    the radio control for the first stage of the missile
    I always thought Sosna is laser-guided
    avatar
    GarryB

    Posts : 16324
    Points : 16955
    Join date : 2010-03-30
    Location : New Zealand

    Re: Russian VSHORADS Thread

    Post  GarryB on Thu Jun 19, 2014 1:29 am

    The fact that some versions of Sosna can be mounted on an MT-LB based chasis doesn't mean that it is a Strela-10 follow-on. There are other systems developed as Strela-10 follow-ons.

    I think Sosna is primarily a ZU-23-2 follow-on.

    The VDV announced the Strela-10 was a temporary replacement for the ZU-23-2, but that a new system was going to replace it in the near future. I suspect the SOSNA-R is that replacement because figures given match SOSNA-R better than Morfei or other systems known to be in development. 10km range and laser beam riding guidance were two parameters that seem to rule out the IIR guided Morfei.

    There are two reasons for that conclusion: the MT-LB based chassis and the radio control for the first stage of the missile. It seems that the non-export versions of Sosna don't need the radio control for the first stage control.

    I would suggest all versions of SOSNA-R would require radio command guidance for the initial portion of flight to get it heading in the right direction... the laser beam riding guidance wont be able to see through the booster stage in the first second or two of flight, while radio command would allow a slightly lofted trajectory to ensure the missile flys clear of ground obstructions like trees but as the main booster burns out the radio command link would allow the launcher to command the missile to climb or descend so the laser beam is not seen by the missile through the smoke trail the main booster has just left.

    It has similar tactical purpose

    And cheaper and light weight without all those CM and MMW radar systems of Pantsir-S1.

    I always thought Sosna is laser-guided

    Yes... laser beam riding, but for the first part of its flight it has a solid rocket booster and a large rocket plume between it and the launcher, so for that part of flight it uses radio command guidance to fly to the optimum point to engage the target.
